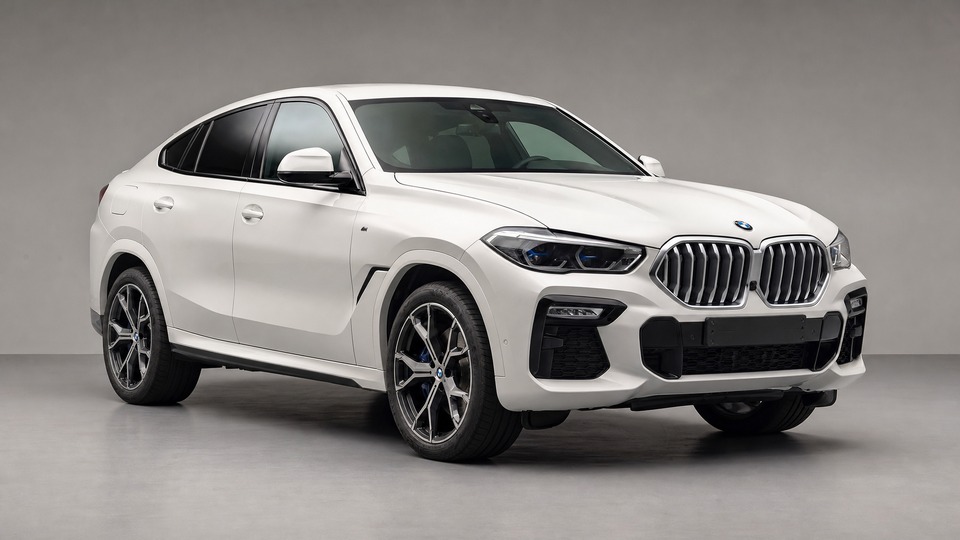

BMW X6 xDrive30d G06

BMW acknowledged this issue via service bulletin SIB 27 02 20, and it has since led to a class action lawsuit covering 2019-2025 xDrive models. The factory-filled transfer case fluid breaks down prematurely, causing the clutch pack to slip and produce a shudder, particularly during slow-speed turns and light acceleration. A fluid flush with the correct-spec oil and adaptation reset typically costs €300-500 and resolves many cases. If the internal clutch pack is worn from prolonged driving on degraded fluid, the transfer case actuator or the entire unit may need replacement, pushing costs to €1,500-5,000. Preventive transfer case fluid changes every 50,000 km significantly reduce the risk. No warning lights appear when the transfer case is damaged, so a test drive with slow-speed manoeuvring is essential before purchase.

The B57 engine shares the EGR cooler vulnerability with its N57 predecessor, though failures are less frequent on the newer engine. When the cooler cracks internally, coolant seeps into the intake manifold, causing white exhaust smoke, rough idling, and slow coolant loss with no visible external leak. In severe cases, this can lead to engine damage or a fire risk in the intake manifold area. BMW issued a major recall campaign primarily covering N57 and B47 engines, with some early B57 builds also affected. If the recall applies and has not been completed, BMW will replace the EGR cooler at no charge. Outside recall coverage, independent repair costs €1,500-2,500, while dealer pricing reaches €3,000-3,500.

Modern BMW diesels rely on a complex selective catalytic reduction (SCR) system to meet Euro 6 emission standards. The most common failure point is the NOx sensor (€350-500 per sensor, two fitted), followed by the AdBlue tank heater element (€300-600, particularly in cold climates) and the AdBlue pump assembly (€600-1,200). A catalyst temperature sensor fault is a frequently reported trigger for AdBlue warning lights on the X6 specifically. BMW AdBlue faults are commonly misdiagnosed by non-specialist garages: the most visible fault code often points to the SCR catalyst, leading to unnecessary and expensive catalyst replacements when the actual issue is a sensor or pump. Always seek diagnosis from a BMW specialist before approving expensive repairs.

Not all X6 G06 models have air suspension; the 2-axle air suspension is an option. If equipped, the rubber air spring bellows degrade over time, developing slow leaks that are most noticeable overnight when the car sags to one side. The compressor runs longer to compensate, eventually overheating and failing prematurely. A single air spring replacement costs €800-1,200. If the compressor has also been damaged from overwork, add €1,000-1,500 for the compressor and relay valve. Early detection is essential: if you notice one corner sitting lower after the car has been parked overnight, address it promptly before the compressor is damaged. Cars on standard steel-spring suspension are not affected by this issue.

Oil leaks from the valve cover gasket and oil filter housing gasket are a common ageing issue across BMW inline-six engines, including the B57. Heat cycling causes the gaskets to harden and shrink, typically becoming noticeable between 80,000 and 150,000 km. The oil filter housing gasket is usually the first to go. An oil drip onto the exhaust manifold can produce a noticeable burning smell. Repair at an independent shop costs €500-800 for the oil filter housing gasket and €600-1,000 for the valve cover gasket. Dealer pricing adds 30-50% on top. Both repairs are straightforward but require careful reassembly to avoid repeat leaks.

The DPF requires sustained highway driving at regular intervals to perform passive regeneration, burning off accumulated soot at high exhaust temperatures. Short urban trips prevent the exhaust from reaching the temperatures needed for this process. Symptoms include a DPF warning light, reduced performance, and eventual limp mode. A forced regeneration at a workshop costs €200-400 if the filter is not severely blocked. If the DPF is beyond cleaning, replacement costs €1,500-2,500 for parts and labour. A well-maintained DPF with regular highway use can last well beyond 200,000 km. This is almost entirely a usage-pattern issue rather than a design defect.

The BMW G06 platform has numerous electronic modules that can prevent the car from entering proper sleep mode, slowly draining the 12V battery. The most common root cause is a faulty Intelligent Battery Sensor (IBS), which is integrated into the negative battery cable. A defective IBS sends incorrect data, preventing proper charging or keeping the car awake. BMW issued technical service bulletin SIB 61 01 23 for a software fix that resolves many cases. Over 35% of battery discharge cases on this platform are resolved by performing a proper battery registration after replacement. A new AGM battery costs €200-350, and the IBS module costs €150-250 plus registration with a diagnostic tool.
