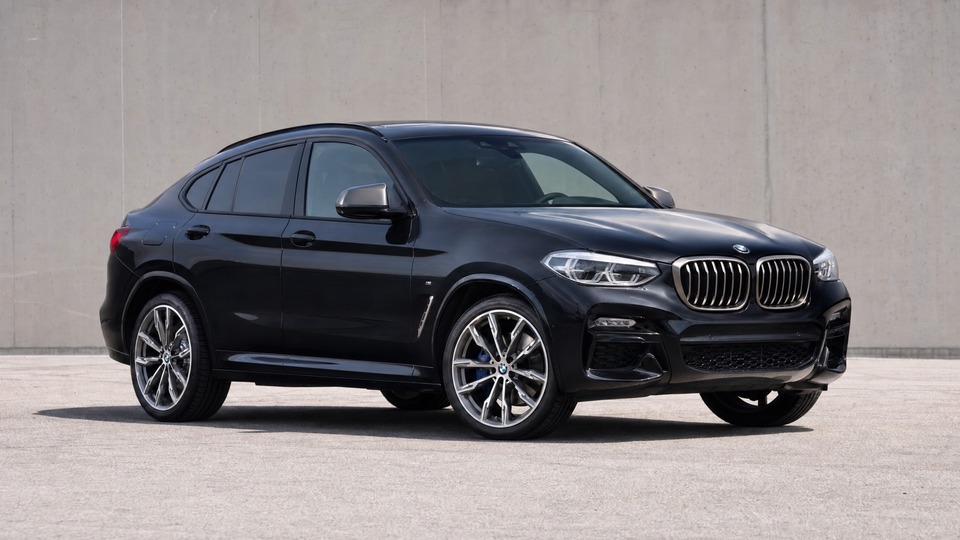

The performance variant of BMW's coupe-styled mid-size SUV, mechanically near-identical to the X3 M40i G01 with a more rakish roofline. Pre-LCI cars (2018-2021) use the B58A producing 360 hp; the LCI (2022-2025) uses the B58D with 387 hp and a 48V mild hybrid system. Drivetrain is xDrive all-wheel drive through the ZF 8HP automatic. The B58 is widely considered one of BMW's most robust modern engines, but the X4's tight engine bay and SUV mass create the same cooling system and drivetrain wear concerns seen in the X3 M40i.· more· less
Robust B58 inline-6 with proven track recordExcellent ZF 8HP gearbox and refined chassis
Coolant plastics and OFHG common failure pointsTransfer case needs proactive fluid changes
Buy if: You want near-M car performance in a coupe-SUV body and can commit to proactive cooling system inspections and transfer case fluid changes.
Avoid if: You expect low maintenance costs or plan to stretch service intervals beyond what the B58 needs to stay healthy.
Expansion tank, coolant vent hose, and thermostat housing crack from thermal cycling · more· less
The B58 uses several plastic coolant components that become brittle under continuous heat stress. The small-diameter coolant vent hose connecting the oil filter housing to the expansion tank is the most common failure point, typically between 60,000 and 120,000 km. The X4's tight engine bay creates higher underhood temperatures than sedans with the same engine, accelerating degradation. Symptoms include gradual coolant loss without visible puddles and low coolant warnings. The vent hose alone costs under €100 to replace at an independent shop, but if the expansion tank or thermostat housing also need replacement, costs reach €400-800. Water pump failure is less common but can occur after 120,000-150,000 km, adding €600-1,000. BMW acknowledged coolant consumption issues in a technical service bulletin. Proactive replacement of all plastic coolant lines during major service is widely recommended by specialists.
Oil filter housing gasket / housing crack
up to €1,5002 of 9
Plastic oil filter housing cracks or gasket fails, leaking oil and/or coolant · more· less
The B58 oil filter housing is made of plastic and integrates a coolant-to-oil heat exchanger. The gasket between the housing and the engine block degrades from heat cycling, typically between 80,000 and 130,000 km. In the worst case, coolant mixes with engine oil internally, visible as milky residue on the oil cap. If not caught quickly, this can lead to bearing damage. A class action lawsuit has been filed against BMW for B46, B48, and B58 oil filter housing defects. Gasket-only replacement at an independent shop costs approximately €400-600. If the housing itself is cracked, a full replacement runs €600-1,500. Many specialists recommend upgrading to an aftermarket aluminium housing to prevent recurrence.
PCV diaphragm / valve cover failure
up to €1,2003 of 9
Crankcase ventilation diaphragm tears, causing oil separation failure and whistling noise · more· less
The PCV valve uses a rubber diaphragm that can tear or rupture, particularly after 60,000-100,000 km. Symptoms include a high-frequency whistling sound from the engine bay, blue or white exhaust smoke, increased oil consumption, and rough idle. On pre-2020 B58A engines (most pre-LCI X4 M40i models), the PCV diaphragm can be replaced separately using aftermarket repair kits for €100-300 including labour. On B58D engines (2022+ LCI models), the PCV is integrated into the valve cover, requiring the entire cover to be replaced at €800-1,200. BMW extended the PCV warranty in the US to 15 years/240,000 km, though European coverage may vary. This is one of the most commonly reported B58 issues but is straightforward to diagnose.
Transfer case clutch wear (xDrive)
up to €2,5004 of 9
Friction clutch pack wears, causing shudder during low-speed turns or parking manoeuvres · more· less
The X4 M40i uses the xDrive system with a transfer case that distributes torque between front and rear axles via an electronically controlled multi-plate clutch. The friction material wears over time, especially with mismatched tire sizes or deferred fluid changes. Symptoms include shuddering during tight parking manoeuvres, hesitation when accelerating from low speeds, or grinding noises. BMW considers the transfer case fluid a lifetime fill, but specialists strongly recommend changing it every 60,000-80,000 km. BMW issued technical service bulletin SIB 27 02 20 covering driveline shudder. A fluid change costs €200-400 and can prevent premature clutch wear. If the clutch pack is already worn, a rebuild costs €800-1,500 at a specialist, while full transfer case replacement reaches €2,000-2,500.
Front control arm bushing wear
up to €1,5005 of 9
Front suspension bushings deteriorate, causing clunking over bumps and vague steering · more· less
The G02 uses a double-wishbone front suspension with aluminium control arms. The rubber bushings degrade from road impacts, temperature cycling, and age, typically becoming noticeable between 60,000 and 100,000 km. The M40i's stiffer M Sport suspension and higher cornering forces can accelerate this wear, and the X4's wider tyres add to bushing stress. Symptoms include clunking noises over bumps, slightly vague steering feel at motorway speeds, and uneven inner tyre wear. BMW uses integrated arm assemblies where the bushing cannot be replaced separately, so the entire arm must be swapped. A full front control arm set at a BMW dealer with OEM parts runs €1,000-1,500. Independent shops using quality aftermarket arms (Lemfoerder, Meyle HD) charge €500-800.
Engine mount degradation
up to €1,0006 of 9
Rubber engine mounts collapse prematurely, causing increased vibration at idle · more· less
The engine mounts on the G02 are a known wear item, with the auto start-stop function subjecting them to additional stress through repeated engine cycling. The rubber compound deteriorates and the mount collapses, often by around 10 mm. Symptoms include noticeable vibration through the steering wheel and dashboard at idle, particularly when the car is in Drive at a standstill. Forum reports suggest this can occur as early as 60,000-80,000 km. Parts cost approximately €150-200 per mount. Independent shop labour for replacement runs €250-500 due to the need for engine support. Dealer repair typically costs €600-1,000. Disabling start-stop may slow the wear but does not prevent it.
Valve cover gasket oil leak
up to €1,0007 of 9
Gasket hardens from heat cycling, causing oil seepage around the cylinder head · more· less
The valve cover gasket on the B58 typically begins to leak between 100,000 and 160,000 km as the rubber degrades from constant heat exposure. Symptoms include a burning oil smell (oil dripping onto the exhaust manifold), visible oil residue around the valve cover edges, and in severe cases oil-soaked spark plugs causing misfires. On pre-2020 B58 engines the gasket can be replaced separately for €400-600 at an independent shop. On B58D engines the valve cover includes the integrated PCV, so the complete assembly often needs replacing at €800-1,000 at a specialist.
Carbon buildup on intake valves
up to €8008 of 9
Direct injection allows carbon deposits to build on intake valves over time · more· less
Like all direct-injected engines, the B58 is susceptible to carbon buildup on the intake valves because fuel is sprayed directly into the cylinder, bypassing the valves that would otherwise be washed clean by port-injected fuel. After 80,000-120,000 km the deposits can become significant enough to cause rough idle, slight power loss, and misfires. The standard remedy is walnut-shell blasting, which costs €400-800 at an independent specialist. Short-trip driving and lower-quality fuel accelerate the buildup. Specialists generally recommend walnut blasting every 80,000-100,000 km on B58 engines as preventive maintenance.
12V battery drain
up to €5009 of 9
Battery depletes within 7-14 days if car sits unused, caused by parasitic draw from electronics · more· less
The G02 draws significant parasitic current from its telematics control unit and numerous electronic modules. If the car sits unused for 7-14 days, the 12V AGM battery can drain completely. A faulty Intelligent Battery Sensor (IBS) can prevent the car from entering proper sleep mode, accelerating the drain. Replacing the AGM battery costs €200-350, and diagnosing/replacing a faulty IBS adds €100-200. BMW recommends a trickle charger for cars not driven regularly. Battery replacements are typically needed every 3-5 years. This is a characteristic of modern BMWs rather than a specific defect.
Reliable B58 engine, but SUV packaging adds cooling and drivetrain wear concerns
The B58 inline-six is one of BMW's best modern engines, and many X4 M40i examples reach high mileage without major powertrain problems. The ZF 8HP automatic is similarly robust. The main ownership concerns centre on cooling system plastics (expansion tank, vent hose, thermostat housing, oil filter housing gasket), which degrade faster in the X4's tight engine bay than in sedan applications. The xDrive transfer case needs proactive fluid changes that BMW does not schedule from the factory. Suspension and engine mount wear are accelerated by the M40i's firmer setup and start-stop cycling. Overall, this is a well-engineered performance SUV that rewards diligent maintenance.
Service history
Complete BMW dealer or specialist records essential. Verify oil changes every 10,000-15,000 km with BMW LL-01 0W-20 or 0W-30. Check whether transfer case and differential fluid have ever been changed.
Cold start
Start engine completely cold. Listen for unusual rattling, ticking, or whistling sounds in the first 30 seconds. A high-pitched whistle may indicate PCV diaphragm failure.
Test drive
Minimum 30 minutes including motorway speeds and slow-speed parking manoeuvres. Pay attention to smooth power delivery, gearbox shifts, and any vibration at idle.
Tires
Check tread depth, age (date codes), and uneven inner-edge wear indicating suspension issues. Verify all four tires match in size and brand, as mismatched tires stress the xDrive transfer case.
Specific for this vehicle
Check coolant level and expansion tank
Low coolant without visible leaks is a common early sign of a cracked vent hose or expansion tank. Inspect the tank for hairline cracks around the lower pipe fitting.
Inspect oil filter housing for leaks
Look for oil or coolant residue around the oil filter housing area. Check the oil filler cap and dipstick for milky residue indicating internal coolant/oil mixing.
Listen for PCV whistling
With the engine running, listen for a high-pitched whistling from the valve cover area. Also check for blue or white exhaust smoke indicating a torn PCV diaphragm.
+ 6 more checksShow less
Test xDrive in tight turns
Drive slowly in tight circles in a parking area. Shuddering, clunking, or binding indicates worn transfer case clutch. Ask when transfer case fluid was last changed.
Check for vibration at idle in Drive
With the car stationary in Drive, foot on brake, check for excessive vibration through the steering wheel or dashboard. Pronounced vibration indicates collapsed engine mounts.
Drive over bumps to test suspension
Drive over speed bumps at moderate speed. Listen for clunking from the front indicating worn control arm bushings. Check for uneven inner tyre wear.
Verify steering rack recall (2020 models)
BMW recall 19V738000 covers steering rack pinion teeth that may break under load on 2020 X3 M40i and X4 M40i. Contact BMW with the VIN to confirm completion.
Verify starter motor recall completed
BMW recalled 2021-2024 X3/X4 models for starter motor fire risk. Contact BMW with VIN to confirm completion before purchase. This is safety-critical.
Run full diagnostic scan
Use ISTA or Bimmerlink to read all stored fault codes. Pay attention to coolant system, PCV, transmission adaptation values, and transfer case warnings.
Recalls and Technical Service Bulletins
Steering rack pinion teeth may break under load (2020 X3 M40i and X4 M40i, NHTSA 19V738000)Critical - verify completed
Starter motor overheating / fire risk (2021-2024 models)Critical - verify completed
Front seatback frame weld defect (2018-2019 models)Verify completed
Rearview camera display non-compliant (2019-2021 models)Verify completed
Contact a BMW dealer with the VIN to verify all recalls have been completed. The 2020 steering rack recall and the 2021-2024 starter motor recall are particularly important as both involve serious safety risks. BMW and US regulators have urged affected starter motor owners not to park indoors until the recall repair is complete.
Warranty Status
Factory warranty (3 years, 2+1 from Nov 2016)Expired on 2018-2022 models; may remain on 2023+ cars
PCV extended warranty (US: 15 years/240,000 km)Check with BMW dealer for European coverage
Rust perforation warranty (12 years)Still active on all G02 models
All pre-2023 BMW X4 M40i models are outside their original 3-year factory warranty (2+1 program, no km limit). The PCV valve cover has extended warranty coverage in the US, but European coverage should be confirmed with a BMW dealer. The 12-year rust perforation warranty still applies to all G02 models. BMW offers extended warranty packages through dealers.
Sources: Research draws on model-specific owner forums and owner communities, recall information from official authorities, German automotive press, and multiple workshop cost references cross-checked against each other.
This report is for informational purposes only and does not constitute professional advice. Estimates may be inaccurate. Always have a qualified specialist inspect the vehicle before purchase. We accept no liability for decisions made based on this information.
