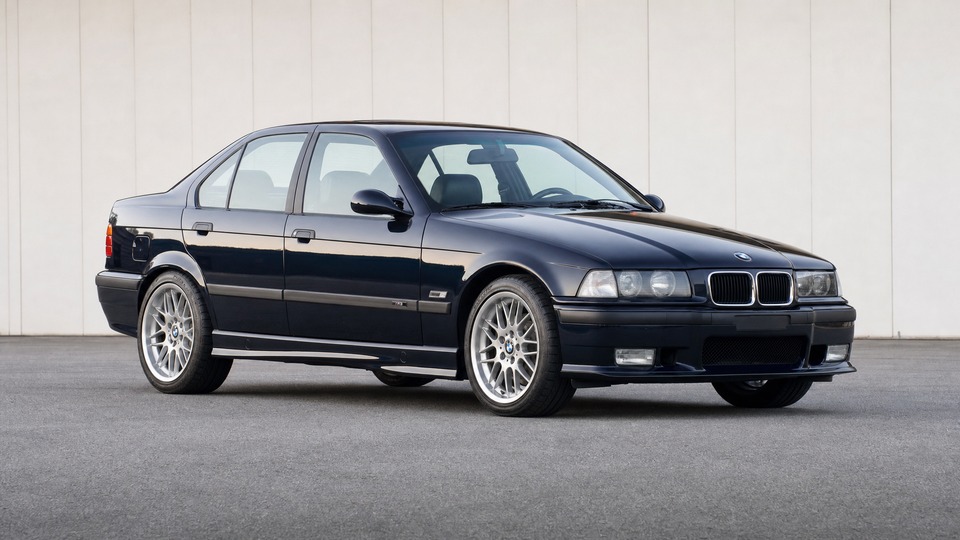

BMW M3 E36

The S50B30 uses single VANOS, the S50B32 uses double VANOS. Both systems deteriorate over time. The sealing rings (O-rings and Teflon seals) on the VANOS piston become brittle, leading to loss of valve timing authority. Symptoms include noticeably reduced power above 4,000 rpm, poor throttle response, rough idle, and a distinctive rattle on cold start. The helical gears inside the VANOS unit also wear, producing an audible rattle that BMW attempted to mitigate with a diaphragm spring in later production. Rebuild kits from specialists like Beisan or Dr. VANOS cost around €200-400 for parts, but labor for the S50B32 double VANOS is significantly more involved. A full professional rebuild typically runs €800-1,500; if gears need replacing or the complete unit must be sourced, costs can reach €2,500. On the S50B32, nearly every car over 100,000 km will show some VANOS degradation.

This is arguably the most critical maintenance item on any E36. The cooling system uses multiple plastic components that degrade after 8-12 years and 75,000-120,000 km. The expansion tank is the most fragile and can crack suddenly, leading to rapid coolant loss. The water pump uses a plastic impeller that can crack or shed blades, causing immediate overheating. The thermostat housing is also plastic and prone to hairline cracks. A single overheat event on the S50 can warp the cylinder head. A complete cooling system overhaul (radiator, water pump with metal impeller upgrade, thermostat housing, expansion tank, all hoses, and coolant) costs around €400-600 in parts from specialists and €600-1,200 all-in at a workshop. On a 25+ year old car, if this has not been done, it should be considered overdue.

While less infamous than the S54 rod bearing issue on the E46 M3, the S50B32 does have documented connecting rod bearing wear, particularly on cars used at high rpm frequently or those with extended oil change intervals. Symptoms include a low knocking sound when warm and dropping oil pressure at idle. Metal particles found in the oil filter during oil changes are an early warning sign. The oil pump pressure relief piston on the S50B32 can also seize in its bore (aluminum piston in steel housing), leading to insufficient oil pressure and accelerating bearing damage. Proactive bearing inspection at 100,000 km costs around €1,500-2,000 (labor-intensive as the engine must come out or be dropped). If bearings have failed and damaged journals, expect €3,000-4,000 for a partial engine rebuild. The upgraded DLC-coated pressure relief piston is a worthwhile preventive measure at around €65-100.

Corrosion is the single biggest threat to surviving E36 M3s. Typical rust locations include rear wheel arches (most common, rust works from inside the arch outward), front wings, door bottoms (blocked drain holes accelerate this), sills (especially when fitted with aftermarket side skirts that trap moisture), and the floor pan around the rear subframe mounting points. A single arch repair with paint match costs around €300-500 per side. More extensive structural rust around the rear subframe mounts can cost €900-2,200 for welding, reinforcement plates, and finishing. Extreme cases with sill replacement and floor pan work can exceed €4,000. Always inspect under the plastic arch liners, lift carpets in the boot and rear footwells, and check inside the engine bay corners under the washer bottle.

The rear subframe mounting points on the E36 can crack the surrounding sheet metal, particularly on M3s driven aggressively or fitted with stiffer aftermarket suspension. This issue is well-known enough that BMW produced factory reinforcement plates for the E36 M3. Some later production M3s came with these plates from the factory. Signs include clunking from the rear over bumps and visible cracking around the mounting points when inspected from underneath. Repair involves welding reinforcement plates to the chassis, which costs €800-1,200 if caught early. If the damage is severe (torn-out mounts), extensive chassis welding and straightening can cost €1,500-2,500. Any car used for track days or autocross without reinforcement plates should be considered at risk.

Oil leaks are nearly universal on E36 M3s of this age. The valve cover gasket hardens and shrinks, allowing oil to seep down the sides of the engine. The oil filter housing gasket similarly deteriorates, leaking oil onto belts and other components below. The valve cover gasket replacement is straightforward and costs around €150-300 (parts and labor). The oil filter housing gasket is a more involved job due to access constraints, typically €200-400. Most cars of this age will need both replaced, and they should be considered maintenance items rather than catastrophic failures. However, ignored oil leaks can damage serpentine belts, contaminate oxygen sensors, and create fire risks on exhaust manifolds.

At this age, virtually every E36 M3 will have significantly worn suspension bushings. The front control arm bushings, rear trailing arm bushings, and rear shock mounts are the most common failure points. Symptoms include vague steering, increased body roll, clunking over bumps, and uneven tire wear. A complete front suspension refresh (control arms, bushings, ball joints, tie rods) runs €400-700 for parts and €200-400 in labor. Rear trailing arm bushings and shock mounts add another €300-500. Many owners upgrade to polyurethane bushings for longevity, though these introduce more road noise. On a car that hasn't had bushing work, the transformation after renewal is dramatic.

E36 window regulators are a known weak point. The motor brushes wear out over time, and the cable mechanism can fray or snap. The driver's window is typically the first to fail due to more frequent use. Replacement regulators are widely available for around €80-150 per window. Labor adds €70-150 per window. Some owners report needing multiple regulator replacements over ownership. Water intrusion through deteriorated door seals can accelerate failure by corroding the motor internals.
