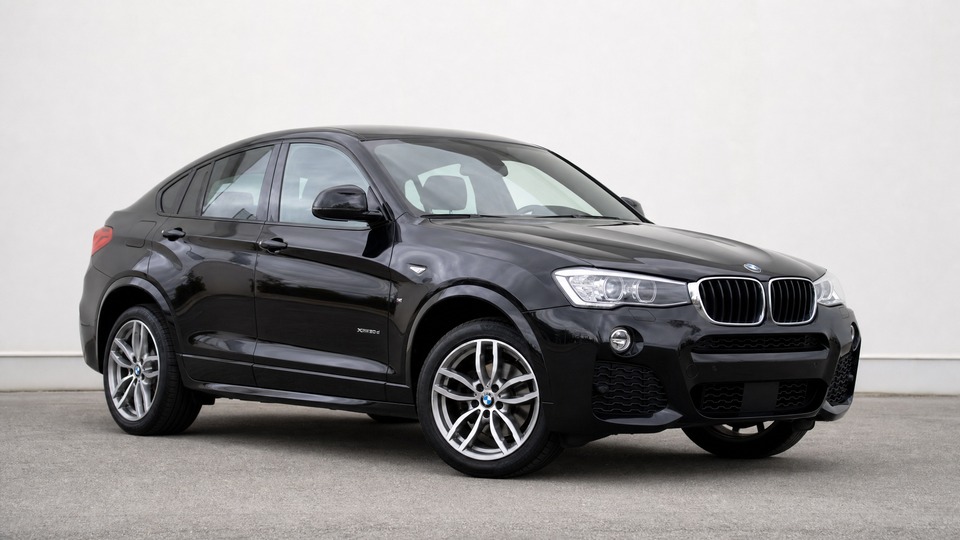

BMW X4 xDrive20i F26

The N20 engine's plastic timing chain guides are the dominant reliability concern. On cars produced before approximately February 2015, the guide material degrades prematurely, allowing the chain to stretch and potentially skip teeth on the sprockets. This can cause the camshafts and crankshaft to lose synchronization, resulting in engine stalling, power loss, or in severe cases, piston-to-valve contact and engine destruction. BMW acknowledged the issue through a class action settlement in the US (covering 2012-2015 models) and updated the guide material for later production. Warning signs include a whining or rattling noise from the front of the engine, particularly on cold start or between 1,500-2,500 RPM. Replacement at an independent specialist typically costs €1,500-2,200 (including chain, guides, tensioner, and updated parts), while BMW dealers charge €2,500-3,500. Cars produced after February 2015 received revised components and are significantly less prone to this failure. Always verify the production date on the build plate, not just the model year.

The oil filter housing gasket (OFHG) is one of the most common leak points on the N20 engine. The rubber gasket hardens from repeated heat cycles and begins to seep oil, which can drip onto the serpentine belt and other components. This leak is common after 60,000-80,000 km and progressively worsens. The repair requires partial removal of the intake manifold and draining of the cooling system to access the rear bolts. Parts cost €30-50 for the gasket kit, but labor runs 2-4 hours. At an independent BMW specialist, expect €300-450 total. BMW dealers typically charge €500-700. Many owners combine this with valve cover gasket replacement to save on overlapping labor.

The valve cover gasket on the N20 degrades from repeated thermal expansion and contraction. Oil seepage typically begins around 80,000-120,000 km, appearing as wet spots or oil smell in the engine bay. While not immediately critical, ignoring it can lead to oil dripping onto hot exhaust components and degrading nearby wiring harnesses. The valve cover itself sometimes warps and needs replacement along with the gasket. Parts (cover, gasket, bolts, seals) cost approximately €250-300. Labor is 2-3 hours at an independent shop (€350-500 total) or €600-800 at a BMW dealer. Often done together with the oil filter housing gasket to save on labor.

The N20 uses an electric water pump rather than a belt-driven unit. While more efficient, these pumps have a limited lifespan and commonly fail between 80,000 and 130,000 km. Symptoms include coolant temperature warnings, engine overheating, or poor cabin heating. A related recall addressed the risk of condensation from the crankcase ventilation system dripping onto the pump's electrical connector, potentially causing a short circuit. A genuine BMW pump costs approximately €400-500, while quality aftermarket alternatives are available for €200-300. Labor is straightforward at 1-2 hours. Total replacement cost is €500-700 at an independent specialist or €800-1,200 at a BMW dealer. Many specialists recommend preventive replacement along with the thermostat around 100,000 km.

The N20 turbocharger uses an electronic wastegate actuator that can stick due to carbon deposits, particularly in cars driven predominantly on short trips or at low engine loads. Symptoms include a check engine light, loss of boost pressure, and limp mode. The actuator arm can also seize from corrosion. BMW does not sell the actuator separately from the turbocharger. However, independent specialists can often replace just the actuator for €400-600. If the turbocharger internals are also damaged, full turbo replacement costs €1,200-2,000. Regular spirited driving and occasional higher-RPM use helps prevent carbon buildup on the wastegate mechanism.

The xDrive transfer case uses a small electric actuator motor with internal plastic gears to engage and modulate the all-wheel drive clutch. These gears can strip over time, preventing proper clutch engagement and triggering drivetrain warning messages. Symptoms include binding in tight turns, vibration at highway speeds, or ABS/DSC warning lights. Dealers often quote full transfer case replacement (€2,500-4,000), but the actual failure is usually limited to the actuator motor, which can be replaced independently for €400-800. Aftermarket repair kits with replacement gears are available for approximately €100, bringing the total cost down to €400-600 with specialist labor. Using tires with matched rolling diameters on all four corners and changing the transfer case fluid every 60,000-80,000 km helps extend the actuator's life.

The power tailgate on the X4 F26 uses two motorized spindle drives (one on each side) to automatically open and close the rear hatch. These are known to fail relatively early, sometimes within the first 30,000-50,000 km, though more commonly after 60,000-80,000 km. Symptoms include the tailgate opening only partially, stopping mid-travel, or failing to operate entirely. The system uses Hall effect sensors and synchronized motors, so failure of one unit can cause the entire system to malfunction. BMW does not repair the spindle drives; they are replaced as complete units. An OEM spindle drive costs €200-300 per side. Aftermarket alternatives are available for €70-100. Labor is approximately 1-2 hours. Water intrusion and extreme temperatures accelerate failure.
