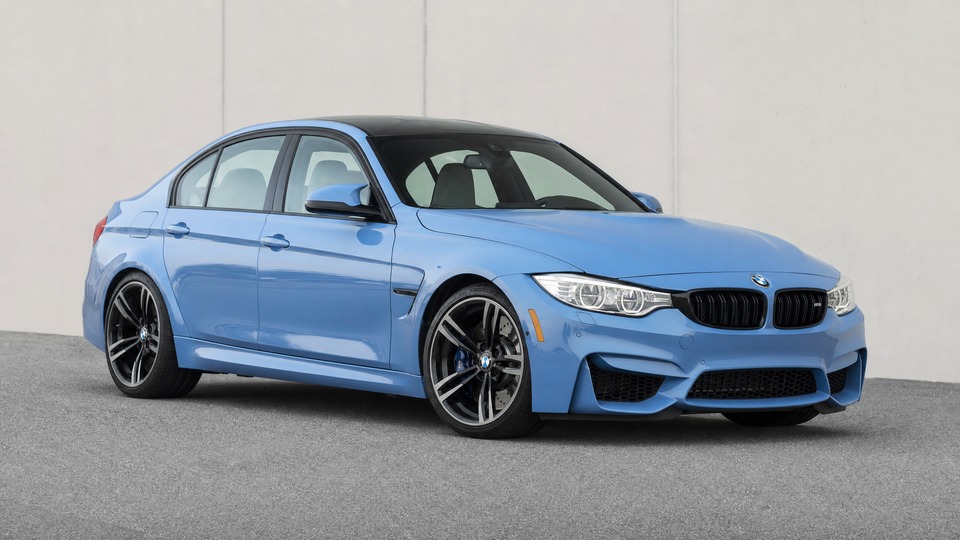

BMW M3 F80

The S55 engine's crank hub is secured to the crankshaft using only a friction taper and a single bolt, without a keyway or pin. Under certain conditions, the hub can slip, causing the timing to jump and potentially leading to piston-to-valve contact. Estimates suggest fewer than 10% of S55 engines are affected, with tuned and modified cars disproportionately represented. On stock cars driven normally, the risk is lower but not zero. There are no warning signs before failure occurs. A preventative capture plate costs approximately €800-1,200 fitted. If the hub has already slipped but no valve damage occurred, a full crank hub replacement with upgraded parts runs €1,500-2,500 at a specialist. If valves are bent, the repair becomes an engine-out job costing €4,000-5,000 or more. Aftermarket solutions from companies like MMR and Evolve replace the friction fit with a pinned or keyed design. Many owners fit these preventatively during other engine work.

The OEM air-to-water intercooler uses a tube-and-fin core with clamped plastic end tanks. Over time, the core can develop internal cracks that allow coolant to enter the charge air path. When this happens, coolant is ingested by the engine, which can cause hydrolocking and catastrophic internal damage. Some failures have been reported with as few as 25,000 km. Symptoms include coolant loss without visible external leaks, white smoke from the exhaust, and rough running. The risk is higher on cars that have been tracked or driven hard. Replacing the OEM intercooler with an upgraded aftermarket aluminium unit costs €1,500-2,500 depending on the brand (VRSF, CSF, Wagner). If coolant ingestion has already damaged the engine, repair costs escalate significantly. Many specialists recommend upgrading the intercooler as preventative maintenance.

The S55's valve cover gaskets are prone to hardening and cracking due to the heat cycles inherent in a high-performance turbocharged engine. Oil leaks often appear before 100,000 km, with some owners reporting issues as early as 60,000 km. Symptoms include a burning oil smell, visible oil on spark plug threads, and low oil warnings. The gasket itself is inexpensive, but labor is significant because the valve cover must be removed, and on the S55 this involves working around the turbo plumbing. At an independent BMW specialist, expect €800-1,200. BMW dealers typically charge €1,400-1,800. It is advisable to replace the valve cover itself if it has warped, which adds to the cost. Many specialists recommend replacing the oil filter housing gasket at the same time to avoid repeat labor.

The OEM hot-side charge pipes are made of plastic and are known to develop hairline cracks, particularly near the mounting brackets and turbo connections. Under boost, these cracks open further, allowing charge air to escape. This causes a loss of power, boost leaks, and potential limp mode. The issue is more common on tuned cars but can also occur on stock vehicles, particularly early production examples (2014-2015). Replacement with an aluminium aftermarket pipe is the standard fix. Parts cost €250-500 for quality aluminium pipes, with labor adding €150-400 depending on the shop. Total cost including parts and labor is typically €400-900. Many owners upgrade charge pipes preventatively during other turbo-area work.

The F80 M3 uses relatively soft rubber bushings to mount the rear differential. Under the substantial torque of the S55, these bushings tear and deteriorate, typically between 50,000 and 80,000 km. The symptom is an audible clunk when transitioning between acceleration and deceleration, especially at low speeds. While not dangerous, it indicates excessive differential movement that can stress other drivetrain components over time. OEM replacement costs €400-600 at a specialist, but many owners opt for aftermarket polyurethane or solid bushings (Powerflex, Revshift) which are stiffer and more durable, costing €300-500 fitted. The stiffer bushings do increase NVH slightly. BMW issued a TSB acknowledging this issue on pre-2018 cars.

Like many BMW engines, the S55 suffers from oil filter housing gasket degradation. The gasket material hardens from constant heat exposure and begins to leak oil where the housing meets the engine block. This is most common after 60,000-80,000 km. Symptoms include oil drips under the car and oil accumulation around the filter housing. The gasket is inexpensive but labor varies because of accessibility. At an independent specialist, expect €500-800. At a BMW dealer, costs reach €900-1,200. Best practice is to replace this gasket at the same time as the valve cover gasket to avoid paying for overlapping labor twice.

BMW equipped the F80 M3 with a lithium-ion battery to save weight. While these batteries are maintenance-free and long-lasting under normal use, they are sensitive to deep discharge. Common causes of drain include Bluetooth modules not entering sleep mode, faulty Comfort Access, and extended periods of non-use. Unlike conventional lead-acid batteries, the Li-ion unit cannot be jump-started repeatedly without damage. OEM replacement costs €800-1,200 at a dealer, while aftermarket lithium alternatives are available for €500-700. Some owners switch to a conventional AGM battery as a cheaper alternative (€150-250), though this adds approximately 10 kg and requires coding. Using a quality trickle charger (CTEK recommended) when the car is stored prevents most battery issues.

The S55's twin-turbo setup uses electronically controlled wastegate actuators. Over time, the actuator arms develop play, resulting in an audible rattle during deceleration, gear changes, and when the engine is turned off. While the rattle itself is not harmful, it indicates wear that will eventually affect boost control. Software updates can mask the rattle by adjusting wastegate position, but this is a temporary fix that sacrifices some boost response. If only the actuator needs attention, repair costs are €700-900 at a specialist. If the turbo internals are also worn, a full turbo replacement costs €1,500-2,500 per side. Many cars develop a mild rattle that remains stable for years without progressing to a performance issue.
