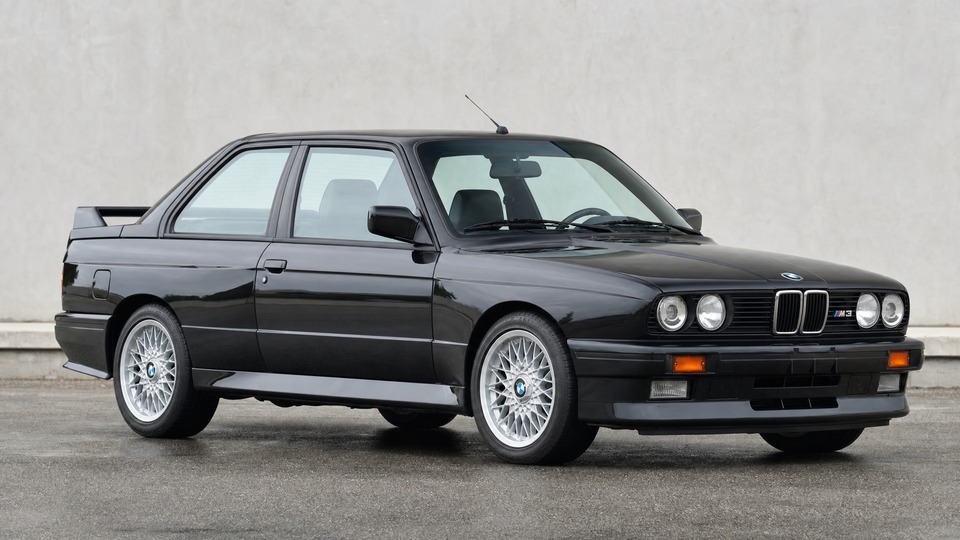

The homologation legend that started the M3 dynasty. Built to meet Group A touring car regulations, fewer than 18,000 units were produced between 1986 and 1991. The S14 four-cylinder engine, derived from the M88 motorsport straight-six, is remarkably durable when properly maintained, with many examples exceeding 300,000 km. Now firmly in collector-car territory with prices from around 50,000 to well over 100,000 euros, specialist knowledge and documented service history are essential for any purchase.· more· less
Legendarily durable S14 engineStrong specialist parts network
Rust threatens every exampleS14-specific parts increasingly scarce
Buy if: You want one of the most significant performance BMWs ever built and can commit to specialist maintenance, proactive rust prevention, and thorough pre-purchase inspection.
Avoid if: You expect modern reliability, cannot source a reputable E30 M3 specialist, or are unable to budget for high-cost surprise repairs on a 35+ year old car.
Corrosion in sills, floor pans, wheel arches, trunk floor, and window surrounds affects virtually every surviving example · more· less
Rust is the single greatest threat to any E30 M3. The body shell was derived from the standard E30 platform with limited corrosion protection for the era. Water collects in box sections, particularly where plastic sill covers trap moisture and hide decay. Common failure areas include rear wheel arches (especially if previously rolled for wider tires), floor pans beneath the battery tray, inner and outer sills, the trunk seal area, windscreen corners where they meet the A-pillars, and the sunroof drains on sunroof-equipped cars. Crucially, rust works from the inside out, so a visually clean exterior can hide structural decay. Cars lathered in underseal should be treated with suspicion, as it masks damage. Minor panel repairs cost approximately 1,000-3,000 euros per area. Structural work requiring welding of floor pans or sill replacement escalates to 5,000-10,000 euros. Full shell restoration with chemical dipping and comprehensive re-welding can reach 15,000-25,000 euros. At current market values, a rust-free shell commands a massive premium.
S14 engine rebuild
€8,000 - 15,0002 of 10
The S14 is one of BMW's most durable engines, but at 35+ years old, high-mileage examples may need comprehensive work · more· less
The S14 engine is genuinely robust, with many examples exceeding 300,000 km on original internals. However, when a rebuild is eventually needed, costs are substantial due to the specialist nature of the work and increasingly scarce S14-specific parts. Common indicators include low oil pressure (below 1 bar at warm idle), big-end bearing knock (deep rumble that quietens with revs), worn camshaft lobes (clattering top end), and oil consumption exceeding 1 litre per 1,000 km. A standard rebuild including rebore, new pistons, bearings, and full head work costs approximately 8,000-12,000 euros at a specialist. Upgraded rebuilds with performance components can reach 15,000 euros or more. S14 crankshafts have become particularly difficult to source, with new OEM units costing over 3,000 euros. Many specialists now offer aftermarket forged alternatives. Prevention through regular oil changes with quality synthetic oil and avoiding hard driving before the engine is fully warm significantly extends engine life.
Cooling system failure
€800 - 1,5003 of 10
Water pump, radiator, hoses, and expansion tank all degrade with age and can cause catastrophic overheating · more· less
The cooling system is the S14 engine's Achilles heel, not because of design weakness but simply because every component is 35+ years old. The water pump can fail without warning. The plastic expansion tank becomes brittle and cracks at connection points. Rubber hoses harden and develop invisible internal degradation. The thermostat can stick closed, causing rapid overheating. A complete cooling system refresh including water pump, thermostat, all hoses, expansion tank, and coolant costs approximately 800-1,500 euros in parts and labor. The S14 water pump specifically costs 400-500 euros from BMW, significantly more than standard E30 parts. Overheating even briefly can warp the aluminium cylinder head and blow the head gasket, escalating a 1,000 euro preventive job into a 3,000-5,000 euro repair. This refresh should be considered essential on any E30 M3 without documented recent cooling system work.
Timing chain and tensioner wear
€1,500 - 3,0004 of 10
Chain stretches and tensioner weakens over time, typically requiring attention after 150,000 km · more· less
Unlike standard E30 models with timing belts, the S14 uses a timing chain that is generally more durable. However, after 150,000-250,000 km, the chain can stretch and the hydraulic tensioner lose effectiveness. Symptoms include rattling on cold start or at idle that diminishes as oil pressure builds. Some owners report reaching over 400,000 km on original chains, but most specialists recommend replacement as preventive maintenance beyond 200,000 km. If the chain jumps timing, valve-to-piston contact causes catastrophic engine damage. A timing chain tensioner rebuild kit costs approximately 100-150 euros in parts, but a full chain, guides, tensioner, and sprocket replacement including labor runs 1,500-3,000 euros due to the significant front-end disassembly required.
Getrag 265 gearbox synchro wear
€1,500 - 4,0005 of 10
The dogleg five-speed develops grinding on second and third gears from decades of use · more· less
The Getrag 265 dogleg five-speed gearbox is robust by design, but after 35+ years, synchro wear is common, particularly on second and third gears. Symptoms include crunching or grinding during gear changes, especially when cold. The gearbox is entirely press-fit internally, requiring heat and specialized pullers for disassembly, which makes rebuilds labor-intensive and expensive. Individual synchros cost approximately 100 euros each, but a complete rebuild with bearings, seals, and synchros costs 1,500-4,000 euros depending on wear extent. Exchange or rebuilt gearboxes are available from specialists for approximately 3,500-5,000 euros. Finding a specialist with Getrag 265 experience is critical, as incorrect reassembly causes premature failure.
Exhaust manifold cracking
€1,000 - 2,5006 of 10
The cast iron manifold develops cracks from decades of heat cycling · more· less
The original cast iron exhaust manifold is susceptible to cracking after decades of thermal expansion and contraction cycles. Symptoms include an exhaust ticking sound on cold start that diminishes as the engine warms and the metal expands, reduced power, and exhaust smell in the cabin. A new OEM manifold costs approximately 500-600 euros, but aftermarket stainless steel headers are also available. The main cost driver is labor: access in the tight engine bay requires 5-6 hours, and corroded exhaust studs frequently break during removal, requiring extraction. Total replacement cost including addressing broken studs runs 1,000-2,500 euros. Many specialists recommend upgrading to stainless studs with copper nuts during any manifold work to prevent future issues.
Suspension refresh required
€1,500 - 3,5007 of 10
Every rubber bushing, shock absorber, and mounting point has degraded after 35+ years · more· less
At this age, all rubber components in the suspension are degraded. Rear subframe bushings cause wandering and clunking and are notoriously difficult to replace due to corroded aluminium inserts in the mounting points. Front control arm bushings cause vague steering. Shock absorbers are likely worn. The E30 M3 uses offset control arm bushings specific to the M3, so generic E30 parts will not work correctly. A comprehensive front and rear suspension refresh with quality parts costs 1,500-3,500 euros in parts plus significant labor. Rear subframe bushing replacement alone can cost 800-1,900 euros at a specialist due to the labor-intensive removal process. Polyurethane bushing upgrades are available and offer improved longevity.
Limited slip differential clutch pack wear
€800 - 2,0008 of 10
The factory LSD loses locking percentage as internal clutch plates wear over time · more· less
The E30 M3 came standard with a limited slip differential that uses clutch plates to provide locking action. Over decades of use, these plates wear, reducing the effective locking percentage from the factory specification to nearly open-differential behavior. Testing involves checking breakaway torque: 50-55 foot-pounds indicates good condition. A rebuild with new clutch packs and preload shims costs approximately 800-1,500 euros at a differential specialist. Upgrade options include Quaife ATB helical LSDs, which use gears instead of clutch plates and never wear out, for approximately 1,200-1,500 euros. The large-case 188mm differential is well-proven and parts remain available.
Electrical system degradation
€300 - 1,5009 of 10
Instrument cluster failures, brittle wiring insulation, and corroded earth points cause intermittent faults · more· less
The E30's electrical system is minimal by modern standards, which is an advantage, but after 35+ years, components still fail. The instrument cluster commonly develops dead pixels, burnt circuit board traces, or failed capacitors. The Service Interval board battery can leak acid onto the circuit board, destroying it. Window regulators fail, central locking solenoids wear out, and wiring insulation becomes brittle throughout the car. Ground connections corrode, causing mysterious intermittent faults. Cluster repair by a specialist costs 200-500 euros. A complete engine wiring loom from specialist manufacturers costs 800-1,500 euros fitted. Individual fault diagnosis and repair typically costs 300-800 euros, but chasing intermittent issues can escalate quickly.
Oil leaks from multiple gaskets
€500 - 2,00010 of 10
Valve cover gasket, oil pan gasket, timing chain cover, and rear main seal all deteriorate with age · more· less
Oil leaks are nearly universal on E30 M3 engines of this age. The valve cover gasket warps and leaks onto the hot exhaust manifold, creating a fire risk. The oil pan gasket requires significant disassembly to access. The timing chain tensioner and its base gasket commonly weep. The rear cam box plate seal and front crankshaft seal also deteriorate. Individual gasket replacements cost 200-500 euros each in labor and parts, but since access to one area often reveals adjacent leaks, a comprehensive re-sealing of the engine can run 1,500-2,000 euros. The oil filter housing O-ring is a cheap but awkward repair that causes persistent dripping.
Mechanically robust engine, but age and rust demand constant attention
The S14 engine is genuinely one of BMW's most durable powerplants, with many examples exceeding 300,000 km. However, this is a 35+ year old car where rust, degraded rubber and plastic components, aging electrical systems, and increasingly scarce specialist parts are the primary cost drivers. Bodywork repairs can easily exceed any mechanical expense. At current market values ranging from 50,000 to well over 100,000 euros, a thorough pre-purchase inspection by an E30 M3 specialist is essential, and ongoing maintenance requires both a specialist workshop and a realistic budget.
Service history
Complete specialist records are essential. Verify valve adjustment history at 15,000-25,000 km intervals. Check for consistent oil change records every 8,000 km or annually.
VIN verification and matching numbers
Confirm engine, gearbox, and body numbers match BMW records. At these values, a matching-numbers car commands a significant premium.
Cold start
Must start the engine completely cold. Listen for timing chain rattle in the first 30 seconds, valve train noise, or bottom-end knocking. A healthy S14 should be smooth and responsive.
Test drive
Minimum 30 minutes including varied speeds. Check for gearbox crunching, exhaust smell, oil pressure gauge behavior, and suspension clunking.
Specific for this vehicle
Full underbody rust inspection on a lift
Inspect sills (remove plastic covers), floor pans, wheel arches, trunk floor, battery tray, and subframe mounting points. Use a magnet to detect body filler. This is the single most important check.
Oil pressure at warm idle and at 3,000 rpm
Warm idle should show at least 1 bar. At 3,000 rpm, expect 3-4 bar. Low readings indicate worn bearings or oil pump issues.
Cooling system condition
Check coolant level, color, and condition. Look for signs of overheating: brown residue on expansion tank, milky oil on dipstick, or bubbles in coolant. Ask if the cooling system has been refreshed.
+ 5 more checksShow less
Check exhaust manifold for cracks
Listen for ticking on cold start that fades as engine warms. Visual inspection for visible cracks in the cast iron manifold.
Gearbox synchro test
With the engine warm, cycle through all gears including the dogleg first. Pay particular attention to second and third gear for crunching or grinding.
LSD breakaway torque test
With one rear wheel on the ground and one raised, turn the raised wheel. Resistance indicates the LSD still has locking percentage. A freely spinning wheel indicates worn clutch plates.
Instrument cluster and electrical check
Test all gauges, warning lights, window regulators, and central locking. Check the SI board battery area for acid damage.
Check for previous accident repair
Look for overspray, misaligned panels, and inconsistent panel gaps. Body panels are M3-specific and do not interchange with standard E30 models.
Recalls and Technical Service Bulletins
No formal recalls remain active for the 1986-1991 E30 M3. Any original BMW recalls from the late 1980s have long since been completed or expired.Historical - not applicable
The E30 M3 predates modern digital recall tracking systems. BMW Classic can verify the car's production specification and any factory modifications using the VIN. For cars sold in the US, NHTSA records from this era are limited.
Warranty Status
Factory warranty (2 years)Expired on all E30 M3s (production ended 1991)
BMW Classic certificationAvailable for documented original cars
Specialist extended warrantyLimited availability through classic car insurers
All E30 M3s are decades past their original factory warranty. BMW Classic offers a certification program that verifies the car's authenticity and original specification. Some classic car insurance policies include breakdown cover and limited mechanical warranty. Specialist classic car warranty providers may offer coverage, but premiums are typically high for a car of this value and age.
