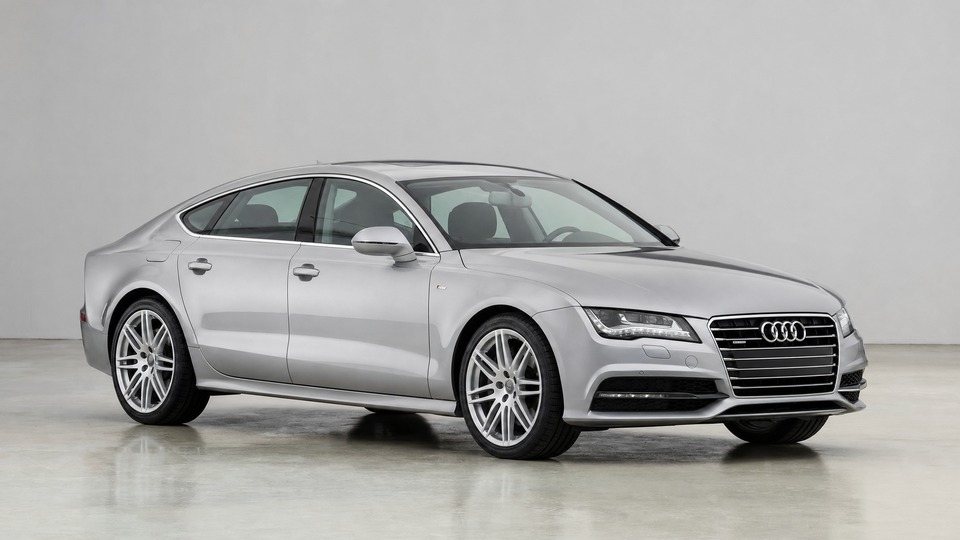

Audi A7 3.0 TDI C7

The V6 TDI has two intake manifolds, each containing swirl flaps controlled by electric actuators via plastic linkage rods. The ball joints connecting the rods wear over time, developing excessive play that the ECU detects as a position deviation. This triggers check engine light and fault codes P2015 or P2011, causing the car to fail emissions testing. Repair options range from very affordable to expensive: aftermarket repair kits with uprated linkage rods cost €20-40 per side and take 1-2 hours to fit, making this a popular DIY repair. If the swirl flap bearings inside the manifold are also worn, the entire manifold assembly needs replacement at €400-700 per side plus labour. Replacing both manifolds at a specialist runs €1,000-1,500 total. This is one of the most common issues on the 3.0 TDI and typically occurs between 80,000 and 130,000 km.

The 3.0 TDI has a coolant regulating valve (part 059 121 737) buried deep in the V between the cylinder banks. The seal where the spindle passes through degrades with heat cycling, allowing coolant to leak into the engine valley. This coolant then attacks the oil cooler gasket directly below, causing secondary oil leaks. Symptoms include gradual coolant loss without obvious external leaks, oil residue visible in the engine V, and in severe cases mixing of oil and coolant. Replacing the coolant valve alone costs approximately €200-400 including labour. However, once the area is opened up, specialists recommend replacing all associated gaskets, plastic fittings, and the oil cooler gasket simultaneously, bringing the total to €800-1,800 depending on the extent of deterioration. This typically becomes noticeable between 80,000 and 150,000 km.

Cars equipped with the 7-speed S-tronic DL501 (rather than the ZF 8HP Tiptronic) can experience mechatronic unit failures. Heat degrades the internal electronics board and solenoid bushings, causing symptoms that progress from occasional harsh 2-1 downshifts and a kick when coming to a stop, to EPC warning light, PRNDS flashing, limp mode, and loss of certain gears. Audi acknowledged the problem and released TSB repair kit 0B5398009F for the mechatronics unit. Early production units (2010-2012) are most commonly affected. A specialist mechatronic repair costs €800-1,500, while a full replacement unit runs €2,000-3,000 including coding and fluid. Regular gearbox oil changes every 60,000 km help prevent premature wear, despite Audi marketing the oil as a lifetime fill. Cars with the ZF 8HP Tiptronic are not affected.

The 3.0 TDI uses a timing chain mounted at the rear of the engine (gearbox side). The hydraulic tensioner can weaken over time, losing oil pressure overnight and allowing the chain to run slack during the first seconds after a cold start. This produces a distinctive metallic rattle that subsides once oil pressure builds. The C7 generation received improved tensioner components compared to the C6, and the issue is less prevalent on facelift models (2015-2018 with CZVA/CZVB engine codes). Cars serviced on Audi's longlife interval (30,000 km) rather than a 15,000 km interval tend to develop tensioner wear earlier. If the chain jumps teeth, catastrophic valve-to-piston contact can occur. Replacement requires gearbox removal. A specialist typically charges €1,500-2,500 for the upper tensioner alone, or €2,500-4,000 for a comprehensive chain kit including all chains, guides, and tensioners on both banks.

The EGR system recirculates exhaust gases to reduce NOx emissions, but the valve and cooler are prone to heavy carbon buildup on the V6 TDI. Symptoms include rough idle, reduced power, check engine light, and gradual coolant loss if the cooler cracks internally. Cleaning the EGR valve costs €200-350 at a specialist. Full valve replacement runs €500-800. If the EGR cooler also needs replacement, the total bill reaches €1,000-1,500 including labour, as the cooler sits deep in the engine bay. The cooler changeover valve, buried at the bottom of the engine V, is itself a common source of coolant leaks that is often misdiagnosed as an EGR cooler failure. Short-trip driving accelerates carbon buildup significantly.

Later A7 models (approximately 2014-2018) with Euro 6 emissions compliance use an SCR system with AdBlue injection. The NOx sensors operate in extreme heat and can degrade, triggering fault codes P20EE or P204F. The AdBlue injector can crystallize, and the dosing module pump can fail. When faults are detected, the system starts a countdown warning that eventually prevents engine restart if not resolved. A single NOx sensor replacement costs €300-500. The AdBlue injector runs €200-400, and the dosing module €400-800. Earlier Euro 5 cars without SCR are not affected by these issues. Using quality branded AdBlue and avoiding extended periods of non-use helps prevent crystallization.

The turbocharger uses an electronic Hella actuator to control the variable-geometry vanes. Carbon buildup or internal motor failure can cause the actuator to stick, resulting in limp mode, flashing glow plug light, and fault codes related to boost pressure regulation. Gentle city driving without occasional higher-rpm runs accelerates the problem. A replacement actuator costs €200-400 for the part but requires specialist calibration. If the turbo vanes are damaged from prolonged sticking, a full turbocharger replacement runs €1,000-1,500 at an independent specialist. Regular motorway driving and using the engine through its mid-range rpm band helps keep the actuator moving freely.

Many A7 C7 models were optioned with adaptive air suspension. The air struts use rubber bladders that dry out and crack over time, particularly in cold or damp climates, allowing slow air leaks. The compressor works harder to compensate, eventually overheating and failing. Symptoms include the car sitting low on one corner after standing overnight, suspension warning messages, and a noisy compressor. An aftermarket air strut costs €350-700 per corner, and the compressor €350-500 for an aftermarket unit. At an Audi dealer, individual strut replacement runs €1,200-1,800 per corner. Failures typically begin appearing after 100,000-150,000 km or 8-10 years. Cars with conventional steel springs are not affected.
