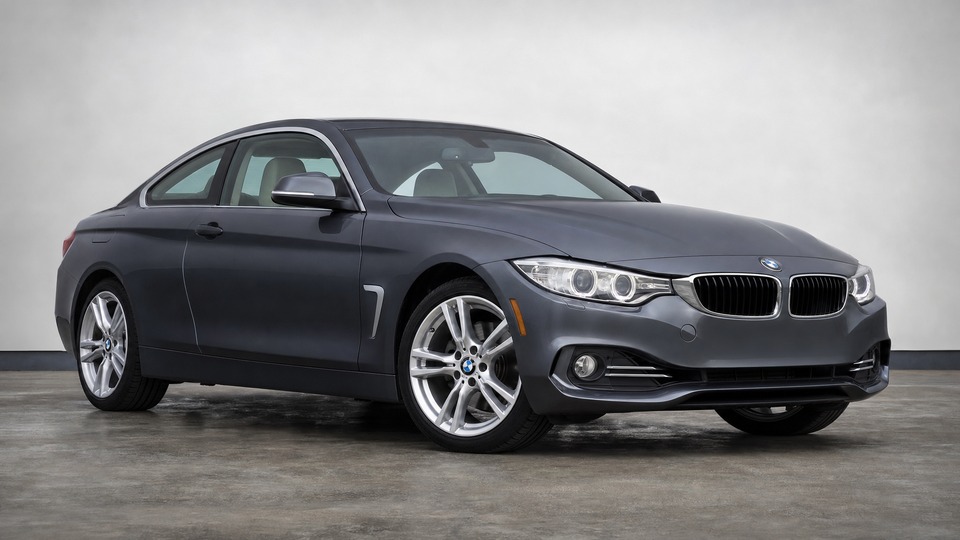

The coupe variant of the F30 3 Series, sharing platform, drivetrains, and suspension. Two different petrol engines were fitted: pre-2016 cars use the N20 (184 hp), while from 2016 the B48 took over with 184 hp and slightly more torque. This engine distinction matters for reliability: the N20 has a well-documented timing chain guide defect on earlier production units, while the B48 resolved the chain issue but introduced coolant system weak points. Both pair with BMW's excellent ZF 8-speed automatic.· more· less
Smooth and efficient turbo engineExcellent ZF 8HP automatic gearbox
Buy if: You want an elegant coupe with engaging handling, particularly a 2016+ B48 model with complete service history and no cold-start rattle.
Avoid if: The car has cold-start chain rattle, no documented oil change history, or you cannot budget for potential timing chain or cooling system repairs.
Price & maintenance
Used price
€18,500
median asking price, typically 115,000 km
Typical range€16,000 – €20,900
Kilometres drivenAll
Maintenance cost
€900 – €1,650/year
at 15,000 km/year
Fixed costsservice, tyres, brakes€550 – €900 /yr
Risk bufferunplanned repairs€350 – €750 /yr
Price estimates are based on German asking prices. Prices and costs vary by vehicle condition and location.
Ownership costs
Maintenance assumes 15,000 km a year. Price estimates are based on German asking prices. Prices and costs vary by vehicle condition and location.
Used price
€18,500
Typically €16,000 – €20,900, at around 115,000 km.
Plastic timing chain guides degrade and crack, risking catastrophic engine damage · more· less
The N20 engine (fitted to 420i models built before 2016) uses plastic timing chain guides that become brittle from heat cycling. The material degrades over time, causing the guides to crack and break apart. This allows chain slack, producing a distinctive rattling noise on cold start lasting 1-30 seconds. Typically appears between 60,000-120,000 km, though some cars fail earlier. BMW revised the guides in later production runs (from approximately 2014/2015), but the risk remains on all N20-powered cars. If the chain jumps teeth or snaps, piston-to-valve contact causes catastrophic engine damage requiring a full rebuild or replacement at €3,500-4,000+. Independent specialist replacement of chain, guides, tensioner, and sprockets costs approximately €1,500-2,500 at an independent shop. BMW dealer pricing runs €2,500-4,000. BMW issued a warranty extension to 7 years/120,000 km on N20 timing chain components, but most cars are now outside this coverage. Prevention: use quality 5W-30 oil and change at 15,000 km intervals, not BMW's extended long-life schedule.
Oil filter housing gasket leak
€400 - 8002 of 7
Gasket between oil filter housing and engine block degrades, leaking oil onto hot engine components · more· less
One of the most common issues on both the N20 and B48 engines. The rubber gasket hardens and shrinks from heat cycling, typically beginning to seep between 60,000 and 100,000 km. On the N20, oil drips down the engine block toward the exhaust manifold, creating a burning smell. On the B48, the oil filter housing itself can crack (particularly between 80,000-120,000 km), which is a more serious failure requiring housing replacement rather than just a gasket. Access is awkward as the intake manifold must be partially removed to reach the rear bolts. Independent repair costs €400-600 including 2-3 hours of labour. BMW dealer charges are typically €600-800. Often combined with valve cover gasket replacement to save on overlapping labour.
Electric water pump and thermostat failure
€600 - 1,2003 of 7
Electric water pump fails without warning, risking overheating and engine damage · more· less
BMW's electric water pump is a well-documented weak point across all F-series four-cylinder engines. The pump typically fails between 80,000 and 130,000 km, often without prior symptoms. When it fails, coolant circulation stops and the engine overheats rapidly. The thermostat housing is usually replaced at the same time as both components are in the same area and share similar lifespans. Parts cost approximately €350-500 for pump and thermostat combined, with 2-3 hours of labour. Total cost at an independent shop is €600-900, while BMW dealers charge €900-1,200. Some owners replace these preventively at 100,000 km as a precaution.
Valve cover gasket leak
€350 - 7004 of 7
Gasket deteriorates from heat cycling, causing oil seepage onto engine and down the block · more· less
The valve cover gasket is another heat-sensitive rubber seal that degrades over time. Typically begins leaking between 80,000 and 120,000 km. Oil seeps from the top of the engine and runs down the block, often reaching the exhaust manifold. On the N20, the valve cover is integrated with the PCV system, so the entire valve cover assembly may need replacement rather than just the gasket if PCV components have also failed. Independent repair cost is €350-500, while BMW dealers charge €500-700. This repair is commonly combined with the oil filter housing gasket to save on labour.
Turbo wastegate rattle
€200 - 2,5005 of 7
Wastegate flapper wears and produces an audible rattle, especially at idle · more· less
The turbocharger wastegate flapper arm and bushing can develop play over time, producing an annoying metallic rattle at idle and low RPM. This is more of a nuisance than a safety concern in early stages, but can worsen. A repair kit for the wastegate flapper costs approximately €100-200 and can be fitted without removing the turbo, though it requires welding. If the turbo internals are also compromised (oil seal leaks, shaft play), a full turbo replacement is needed at €1,500-2,500 at an independent shop. This issue is more common on N20 engines than the B48.
High-pressure fuel pump failure (HPFP)
€600 - 1,2006 of 7
Fuel pump fails causing stalling, rough running, or inability to start · more· less
The high-pressure fuel pump was a notorious failure point on earlier BMW turbo engines (N54/N55), and while the N20 version is improved, failures still occur. Symptoms include long cranking on start-up, hesitation under acceleration, and in severe cases, complete stalling. Typically occurs between 80,000-150,000 km. The pump is mechanically driven by the camshaft, so a failing pump can also introduce metal debris. Replacement cost is €600-900 at an independent shop and €900-1,200 at a BMW dealer. The B48 engine has a more reliable HPFP design with fewer reported failures.
Coolant vent line failure (B48, 2016+)
€150 - 5007 of 7
Hard plastic coolant vent tube between cylinder head and expansion tank cracks from heat · more· less
Specific to B48-equipped 420i models (2016 onwards). The plastic coolant vent line connecting the cylinder head to the expansion tank becomes brittle from repeated heat cycles and eventually cracks or breaks at the quick-disconnect coupling. This causes coolant loss, which can lead to overheating if not caught quickly. BMW issued a service action in some markets to replace this line with a revised rubber part free of charge. In markets where the service action does not apply, the repair costs €150-300 at an independent shop and up to €500 at a BMW dealer. The revised replacement part is more durable.
Engine generation determines risk profile
The 420i F32 spans two engine generations with distinctly different reliability profiles. Pre-2016 N20 models carry the timing chain guide risk as their most serious concern, alongside the usual BMW oil and coolant leak tendencies. Post-2016 B48 models resolved the timing chain issue but introduced coolant vent line and oil filter housing cracking concerns. Both engines share common BMW four-cylinder weak points: electric water pump, oil gasket deterioration, and turbo wastegate wear. With proactive maintenance and shorter oil change intervals than BMW recommends, both engines can deliver reliable service well beyond 150,000 km.
Service history
Complete BMW dealer or specialist records essential. Verify oil changes every 15,000 km or annually.
Tires
Check tread depth, age (date codes), and uneven wear patterns. Rear tires wear faster on RWD models.
Cold start
Must start engine completely cold. Listen carefully for any rattling or unusual sounds in the first 30 seconds.
Test drive
Minimum 30 minutes including highway speeds and varied driving to get all systems up to temperature.
Specific for this vehicle
Cold-start timing chain rattle (N20 models)
Start the engine completely cold and listen for a metallic rattling in the first 1-30 seconds. Any rattle indicates chain stretch and imminent repair need.
Check for oil leaks around valve cover and oil filter housing
Inspect the top and sides of the engine for fresh oil residue. A burning oil smell from under the bonnet is a strong indicator.
Coolant level and condition
Check the expansion tank for proper level. Low coolant or brown/milky colour indicates serious issues. On B48 models, check the coolant vent line for cracks.
+ 3 more checksShow less
Turbo operation under boost
Accelerate firmly from low RPM and listen for wastegate rattle or hesitation. Check for boost leaks indicated by a loss of power.
Verify engine variant (N20 vs B48)
Confirm the production date from the VIN plate. Pre-2016 cars have the N20, 2016+ have the B48. This changes the risk profile significantly.
Verify coolant pump recall (24V-608) completed
Affects 2012-2018 models. Coolant pump electrical connector can short-circuit. Contact BMW with VIN to verify.
Crankshaft position sensor firmware defect causing engine stalling (select May-June 2018 production)Verify if applicable
Head airbag inflator weld joint failure (2014 model year coupes)Verify completed
Takata airbag inflator replacement (various model years)Verify with VIN
B48 coolant vent line service action (2016-2019 B48 models, SI B17 01 21)Verify if applicable
Contact a BMW dealer with the VIN to verify all recalls and service actions have been completed. The coolant pump connector recall (24V-608) is particularly important as it affects a wide production range.
Warranty Status
Factory warranty (2 years, 3 years from Nov 2016)Expired on most used cars
N20 timing chain extended warranty7 years / 120,000 km (expired on most cars)
Rust perforation warranty12 years from first registration
Most BMW 420i F32 models are now outside their original factory warranty and the N20 timing chain extended warranty. The 12-year rust perforation warranty may still apply to later production cars. BMW dealers offer extended warranty packages for used cars.
Sources: Research draws on model-specific owner forums and owner communities, recall information from official authorities, German automotive press, and multiple workshop cost references cross-checked against each other.
This report is for informational purposes only and does not constitute professional advice. Estimates may be inaccurate. Always have a qualified specialist inspect the vehicle before purchase. We accept no liability for decisions made based on this information.
