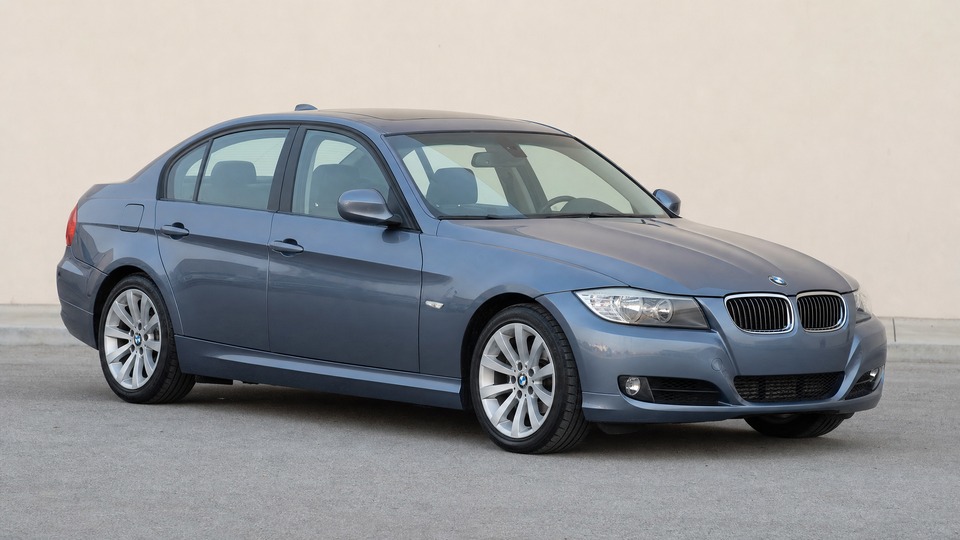

BMW 325d E90

The variable-geometry turbocharger on both the M57N2 and N57 uses an electronic actuator that is prone to wear, particularly on cars built between 2006 and 2010. When the actuator fails, boost pressure cannot be regulated, causing intermittent and sometimes severe power loss (the car feels as though it has lost roughly half its output) and limp mode. BMW does not sell the actuator separately from the turbocharger assembly. A specialist repair or replacement of the actuator alone costs approximately €500-800, but if the turbo internals are also worn, a full turbo replacement (including a remanufactured unit and labor) runs €1,200-1,800. Aftermarket remanufactured actuators are available for €200-350. Regular driving at varied engine loads helps keep the actuator vanes moving freely and reduces carbon buildup.

The M57N2 engine (2006-2010 models) has six swirl flaps in the intake manifold that accumulate carbon and oil deposits over time. When stuck, the engine runs rough, loses power, or triggers fault codes. In the worst case, a flap shaft can fracture and debris enters the combustion chamber, causing catastrophic engine damage (bent valves, piston damage, turbo damage) costing €4,000+. The plastic flaps on the M57N2 are somewhat improved over earlier M57 designs but failures are still well-documented. Preventive removal and blanking with CNC-machined plates costs approximately €150-300 for parts and labor at a specialist. Many experienced owners choose this option as a precaution, with negligible effect on everyday performance. The N57 engine (2010+ models) uses an updated intake manifold design that is less prone to this particular failure.

Like all modern diesels, the 325d needs regular extended drives at highway speeds for passive DPF regeneration. Cars driven predominantly on short urban trips accumulate soot faster than the DPF can burn it off. A common underlying cause on the E90 is a failed coolant thermostat, which prevents the engine from reaching the temperature needed for regeneration (the dashboard does not display coolant temperature by default, so owners often miss this). Symptoms include the DPF warning light, reduced power, and eventually limp mode. A forced regeneration at a workshop costs €150-300. Professional DPF cleaning runs €300-500. If the filter is beyond recovery, replacement costs €1,500-2,000 including labor. Checking and replacing the thermostat (€200-350) should be the first step before addressing the DPF itself.

Oil leaks are among the most commonly reported issues on the E90 325d, particularly on cars over 10 years old. The valve cover gasket, oil filter housing gasket, and oil pan gasket all deteriorate from repeated heat cycling. The valve cover gasket typically starts weeping between 80,000-130,000 km, with oil dripping onto the exhaust and producing a burning smell. The oil filter housing gasket can leak both oil and coolant since it incorporates a heat exchanger on the M57N2. Valve cover gasket replacement costs €300-500 at an independent shop, while the oil filter housing gasket adds €200-400. Addressing both during one service visit saves significant labor. The oil pan gasket is less common but more expensive due to access requirements (€400-600).

The EGR valve accumulates carbon deposits over time, especially on cars driven mainly in city traffic. Symptoms include rough idle, slight hesitation under acceleration, increased fuel consumption, and check engine light. DIY cleaning with suitable solvents is possible and costs under €20 in materials. Professional EGR cleaning runs €200-300. If the valve needs full replacement, expect €400-600 at an independent shop or €600-800 at a BMW dealer. The EGR thermostat can also fail (stuck open), preventing the engine from reaching proper operating temperature and exacerbating both EGR clogging and DPF regeneration problems. Regular highway driving helps keep the EGR system cleaner.

The M57N2 and N57 use Bosch piezo injectors in a common-rail system. At high mileages (typically 150,000+ km), injectors can develop excessive return flow (leak-off), leading to difficult hot starting, rough idle, increased smoke, and poor fuel economy. Diagnosis involves a leak-off test measuring return fuel volume. Individual replacement injectors cost approximately €300-400 each, and while only the failed units can be replaced, most diesel specialists recommend replacing all six simultaneously for balanced performance. Total cost with labor for all six runs €1,800-3,000. Injector seals (copper washers) should be replaced preventively during any injector work.

The crankcase ventilation system uses rubber hoses and an oil separator that degrade from constant exposure to heat and oil vapors. The stock rubber hoses typically fail between 120,000-180,000 km, causing vacuum leaks that lead to rough idle, increased oil consumption, and white smoke on startup. If left unaddressed, raw oil can enter the intake and damage the turbocharger. A replacement CCV kit costs €80-150 for parts. Labor adds €100-250 depending on the shop. Upgraded silicone hoses are available for slightly more and offer significantly longer service life.

The glow plug controller mounted on the engine can fail due to heat exposure, particularly at mileages above 100,000 km. When it fails, one or more glow plugs stop heating correctly. Symptoms include extended cranking in cold weather, rough idle when cold, and incomplete DPF regeneration (which can lead to secondary DPF issues). The controller sits in a cramped location underneath the intake manifold, making diagnosis difficult without diagnostic equipment. The controller costs €40-100 for the part, and individual glow plugs run €20-40 each. Labor to replace the controller and all six glow plugs is approximately €150-350.
