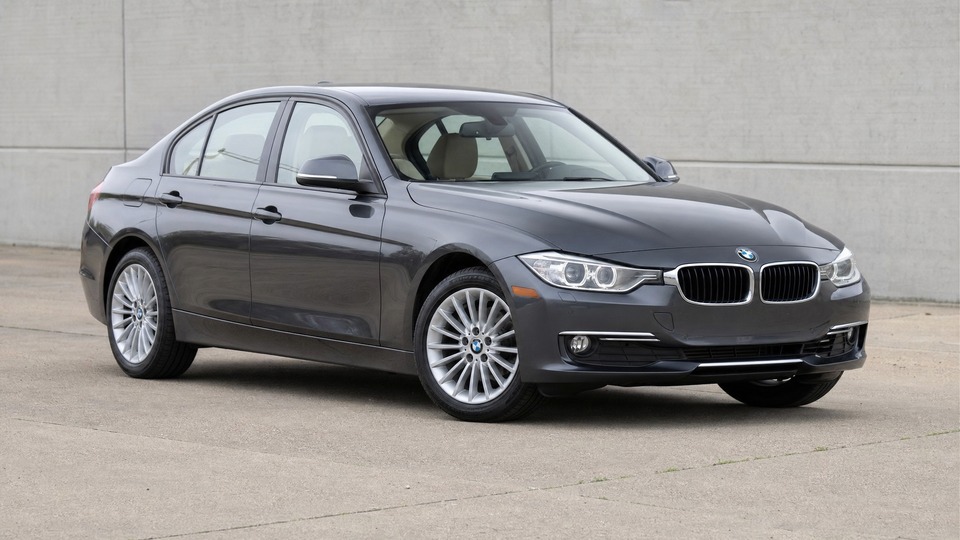

BMW 335i F30

The oil filter housing gasket is one of the most common failure points on the N55 engine. The rubber gasket hardens and shrinks over time due to heat cycling, typically beginning to seep between 60,000 and 100,000 km. Oil drips down the engine block and can reach the exhaust manifold, creating a burning smell and potential fire risk if left unaddressed. On the N55, the oil filter housing sits above the exhaust side, making leaks particularly problematic. A critical concern is that oil from this area can contaminate the serpentine belt and migrate behind the front crank seal, potentially causing belt ingestion into the sump and blocking the oil pickup. At an independent specialist, expect €400-600 including 2-3 hours of labour plus gasket. BMW dealers typically charge €600-900. This repair is often combined with the valve cover gasket to save on labour overlap.

The valve cover gasket on the N55 is a well-documented wear item that typically starts leaking between 80,000 and 120,000 km. The gasket is integrated into the valve cover, meaning the entire valve cover assembly often needs replacement rather than just the gasket alone. This drives up parts costs compared to older BMW engines where the gasket was separate. Symptoms include oil smell from the engine bay, visible oil on the engine block, and in advanced cases oil dripping onto the exhaust. A failing valve cover gasket also compromises the PCV (crankcase ventilation) system which is integrated into the cover, potentially causing boost leaks and increased oil consumption. At an independent shop, the repair costs €500-800 including the complete valve cover with integrated gasket. BMW dealers charge €800-1,200. Many owners combine this with the oil filter housing gasket replacement to save on labour.

The N55 uses an electrically driven water pump that is known to fail between 100,000 and 160,000 km. Unlike a mechanical pump that may leak or whine before failing, the electric pump simply stops working, and the engine can overheat within minutes if the driver does not respond to the temperature warning immediately. Overheating an N55 risks cylinder head warping and head gasket failure, which can exceed €3,000 to repair. The thermostat is electronically controlled and often fails around the same time, so replacing both together is standard practice. The OEM water pump costs approximately €300-400 and the thermostat adds another €80-120. With 3-4 hours of labour, total repair at an independent specialist runs €600-900 euros, while a dealer charges €900-1,200. Preventive replacement around 100,000 km is widely recommended by BMW specialists.

The N55's single twin-scroll turbocharger uses a vacuum-actuated wastegate that develops play in its pivot bushings over time. This causes a metallic rattling noise most noticeable at idle and low RPM, especially after a cold start. In early stages the rattle is cosmetic and does not affect performance. However, if excessive wear develops, boost control can become erratic, causing fault codes and potentially limp mode. Wastegate repair kits are available for around €80-100 but require turbo removal. At an independent specialist, wastegate rebuild runs €300-600. If the turbo internals are also worn, which is common if the wastegate issue was ignored for a long period, a full turbo replacement including labour costs €1,500-2,500. The rattle typically begins after 80,000-120,000 km and becomes more pronounced over time. Many owners live with mild rattle for years without performance issues.

The N55 comes from the factory with a plastic charge pipe that routes compressed air from the intercooler to the intake manifold. Over time, heat cycling and boost pressure cause the plastic to become brittle and crack, resulting in a boost leak. Symptoms include sudden loss of power, limp mode, and a hissing sound under acceleration. This failure can happen at stock boost levels, though it is significantly more common on tuned cars. On a stock 335i, it typically occurs after 80,000-120,000 km. The OEM plastic replacement costs around €80-120, but most specialists recommend upgrading to an aluminium aftermarket charge pipe (€150-250) that eliminates the issue permanently. Total repair cost including labour is €150-300 with an aftermarket pipe, or up to €500 at a dealer with OEM parts.

The N55 uses BMW's Valvetronic system to vary intake valve lift, replacing a traditional throttle butterfly. The eccentric shaft position sensor can fail, typically from oil contamination reaching the electrical connector. Symptoms include rough idle, loss of power, and check engine light with Valvetronic fault codes. The sensor itself costs €100-200 and replacement takes 1-2 hours. However, if the eccentric shaft itself is worn due to insufficient lubrication (a known weak point where the oil squirter passage can become blocked), the repair becomes significantly more expensive at €1,000-1,500 including parts and labour. Regular oil changes with quality oil are essential to prevent this. The issue typically appears after 100,000 km and is more common on cars with extended oil change intervals.

The N55's VANOS system uses oil-controlled solenoids to adjust camshaft timing. These solenoids have small internal screens that gradually accumulate oil varnish and carbon deposits, reducing oil flow and causing the VANOS system to operate below optimal efficiency. Symptoms include rough idle, reduced low-end torque, and occasional check engine light with camshaft position codes. VANOS solenoid cleaning or replacement is straightforward. Aftermarket solenoids cost €30-50 each (two needed), while OEM units are €120-160 each. Labour is approximately 1 hour. Total repair at an independent specialist runs €200-300, rising to €400-500 at a dealer with OEM parts. This issue typically develops after 80,000-100,000 km and is accelerated by extended oil change intervals.
