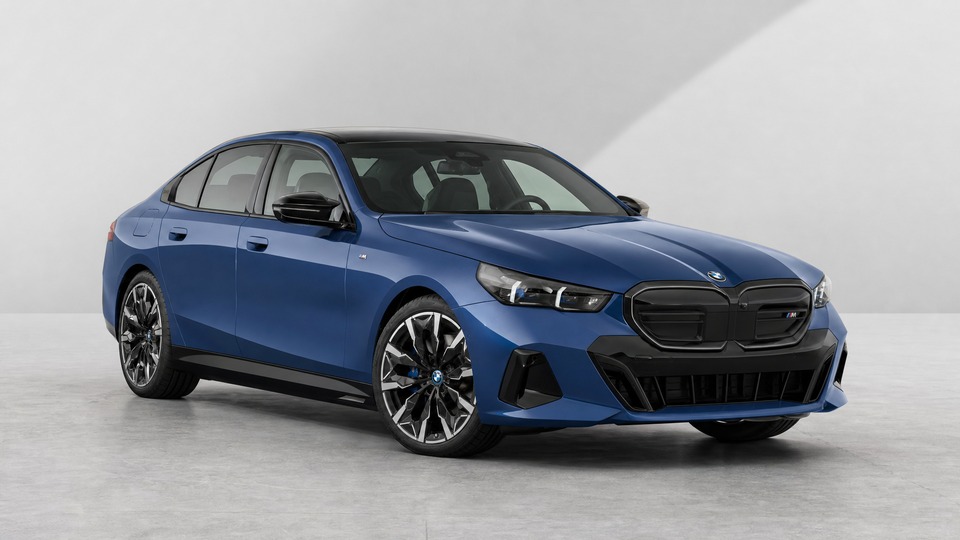

BMW i5 M60 xDrive G60 Reliability

Common Problems

Integrated brake system (IBS) malfunction

€0 - 3,0001 of 9

Brake controller servomotor welds may fracture, reducing braking assist and disabling ABS/DSC · more· less

BMW recalled 2024-2025 i5 M60 models because welds in the servomotor of the integrated brake control module may break. This can cause increased brake pedal effort, loss of power brake assist, and disabled ABS and Dynamic Stability Control. The system switches to a mechanical backup that still provides braking, but with significantly higher pedal force required. BMW replaces the entire IBS module under the recall at no cost. Out of warranty and outside the recall scope, the IBS module is an expensive part (approximately €2,500-3,000 including labor). The brake-by-wire system also produces clicking and clunking sounds when braking during tight turns at low speed. BMW has acknowledged these sounds as a system characteristic rather than a defect, though many owners find them intrusive.

Steering spindle double universal joint failure

€0 - 1,5002 of 9

Steering spindle joint may fracture, causing sudden increase in steering effort · more· less

BMW recalled 2024-2025 i5 M60 xDrive models built between June 17 and July 18, 2024, for a steering spindle defect. The double universal joint in the steering column may not have been specified appropriately for the application, and the swivel socket can become damaged during certain steering maneuvers. If the joint fractures, the driver experiences a sudden increase in steering effort. BMW discovered the issue in June 2024 when a damaged spindle was found at an assembly plant. Affected vehicles receive a free joint replacement. This recall covers a narrow production window, so most i5 M60 models are not affected. Verify with VIN before purchase.

Heat changeover valve coolant leak

€400 - 1,2003 of 9

Thermal management valve develops a leak, typically in freezing temperatures, causing loss of cabin heating · more· less

The i5 shares this known weak point with the i4, iX, and i7. The heat changeover valve in the thermal management circuit can develop a leak, most commonly during cold weather. The first symptom is typically loss of cabin heating, followed by drivetrain warnings as coolant levels drop. Green coolant may be visible under the valve area when the hood is opened. Cars built between approximately May 2023 and January 2024 appear most affected. Despite claims of a coolant level sensor, many owners report receiving no low-coolant warning before drivetrain errors appear. BMW has covered most repairs under warranty or goodwill. Out of warranty, valve replacement and coolant refill costs approximately €400-800 at an independent specialist and up to €1,200 at a BMW dealer.

Electric drive unit software shutdown

€04 of 9

Drive motor software erroneously detects isolation fault, shutting down the HV system and causing loss of power · more· less

In mid-2025, BMW recalled approximately 70,000 EVs including 2024 i5 models (recall 25V-395). The electric drive motor software can misread an isolation fault in certain configurations, triggering a complete high-voltage system shutdown approximately 15-20 seconds after a warning message appears. The car loses all propulsion and the driver must coast to a safe stop. The fix is a software update, deliverable over-the-air or at a BMW dealer, at no cost. This is one of the more serious safety-related recalls because the power loss occurs while driving. Verify this recall has been completed on any 2024-2025 i5 before purchase.

Combined Charging Unit (CCU) failure

€2,500 - 3,5005 of 9

Onboard charger fails, disabling AC charging while DC fast charging may still work · more· less

The CCU handles AC-to-DC conversion for Level 1 and Level 2 charging. BMW recalled certain 2022-2023 i4 and iX models for improperly manufactured CCU components, and the issue has been documented on the i5 platform as well. When the CCU fails, AC charging stops entirely or initiates but drops to minimal amperage, while DC fast charging typically remains unaffected. Some owners report the car reverting to 6A charging despite being set to 40A. Scheduled charging functions can also malfunction, with charge windows being skipped entirely. The CCU module replacement costs approximately €2,500-3,500 including parts and labor. If still under BMW's factory warranty, replacement is free. For used buyers, testing AC charging during a viewing is essential.

12V auxiliary battery drain

€200 - 5006 of 9

12V battery drains when parked for extended periods, leaving the car unresponsive · more· less

Like other BMW EVs, the i5 M60 uses a relatively small 12V battery that powers auxiliary systems including door locks, alarm, and the main computer. The car does not continuously charge the 12V from the main HV battery while parked. Background systems like the alarm, Bluetooth module, and Connected Drive polling gradually drain the 12V battery. If it drops too low, the car will not unlock or respond to the key fob. Most owners report 2-3 weeks before this becomes an issue, but cold weather and active remote climate features can accelerate drain. A CTEK trickle charger is the standard preventive measure for cars parked for extended periods. Replacement of the 12V battery costs €200-350, and some owners report needing replacement within 2-3 years. BMW software updates have improved power management on newer builds.

A/C wiring harness fire risk

€07 of 9

Wiring harness may be damaged during routine cabin filter replacement, creating short circuit risk · more· less

In early 2026, BMW recalled approximately 58,000 2024-2026 5 Series and i5 models because the A/C electrical wiring harness was routed too close to a housing cover screw for the cabin air filter. During a routine cabin filter change, the harness can be damaged, potentially causing a short circuit and fire risk even when the car is not running. BMW dealers inspect the harness, replace it if damaged, and add a protective bracket regardless. This recall is free of charge. The risk is only relevant if a cabin filter has been changed, but any used i5 that has had service work should have this recall verified.

Infotainment software glitches (iDrive 8.5)

€0 - 3508 of 9

iDrive 8.5 freezes, CarPlay disconnects, and charging schedules malfunction · more· less

The i5 M60 runs BMW's iDrive 8.5 system, which is feature-rich but not always stable. Owners commonly report frozen or black screens, wireless CarPlay dropping connection, scheduled charging failing to initiate, ambient lighting glitches, and connected services losing functionality after OTA updates. A particularly noted issue is CarPlay occasionally not appearing in the HUD while still working on the central display. BMW releases software updates roughly every 4 months via OTA, but some updates have introduced new problems while fixing old ones. Most software issues resolve after a system reboot (hold the volume knob for 10-20 seconds). Head unit hardware replacement is rarely needed but costs approximately €250-350. This is primarily a daily annoyance rather than a safety concern, and early 2024 builds appear more affected than later production.

Accelerated rear tire wear

€400 - 8009 of 9

Rear tires on the staggered M60 setup wear significantly faster than expected due to weight and torque · more· less

The i5 M60 weighs approximately 2,355 kg and puts 601 hp through all four wheels, with the rear axle doing most of the work. This combination, with staggered 20-inch (245/40 front, 275/35 rear) or 21-inch (255/35 front, 285/30 rear) fitments, results in accelerated rear tire wear. Many owners report needing rear tire replacement every 15,000-25,000 km, particularly with spirited driving. A set of rear tires costs approximately €400-600 for 20-inch or €500-800 for 21-inch premium tires. This is effectively a predictable wear item on the M60 but significantly more expensive than non-staggered setups on the eDrive40. Rotating tires front-to-rear is not possible due to the staggered sizes.

Solid electric drivetrain, but recall-heavy and software-dependent

The i5 M60's Gen5 eDrive powertrain is fundamentally robust, with no widespread reports of motor or inverter failures. Battery degradation data from the shared platform is encouraging, and the 8-year / 160,000 km battery warranty covers the most expensive component. However, BMW has issued an unusually high number of recalls for a car this new: integrated brake system, steering spindle, drive unit software, pedestrian warning, steering wheel sensor, and A/C wiring harness. Most are addressed free of charge, but a used buyer must verify every recall has been completed. Outside of recalls, the main ongoing concerns are the heat changeover valve leak (shared across BMW EVs), 12V battery management, software stability, and the high cost of staggered tire replacement. The core drivetrain appears reliable for a performance EV.

Pre-Purchase Inspection Checklist

General checks

Service history
Complete BMW dealer or authorized EV specialist records. Verify all software updates have been applied.
Tires
Check tread depth, age (DOT date codes), and wear pattern. Rear tires wear significantly faster on the M60 due to weight and torque distribution.
Test drive
Drive for at least 20 minutes including varied speeds. Listen for suspension noises over bumps and check for any drivetrain or brake warnings on the display.
12V battery condition
Ask when the 12V battery was last replaced. Check voltage with a multimeter: should read 12.4V or above with the car off.

Specific for this vehicle

Verify all recall campaigns completed via VIN
Contact BMW with the VIN to confirm completion of IBS brake, steering spindle, drive unit software, pedestrian warning, steering wheel sensor, and A/C wiring harness recalls. This is the most important check on any used i5.
Test AC charging during the viewing
If possible, plug the car into an AC charger and verify it charges at the expected rate (up to 22 kW). CCU failures manifest as inability to AC charge while DC charging still works.
Check battery state of health
Use BMW diagnostic software or Bimmerlink app to check SoH. A 1-2 year old i5 M60 should show 95%+ SoH. Values below 90% at low mileage warrant investigation.

+ 3 more checksShow less

Inspect for coolant leaks under the hood
Remove the plastic engine cover and look for green coolant residue around the heat changeover valve area. Cars built May 2023 to January 2024 are most affected.
Test braking at low speed during tight turns
Drive slowly and brake while turning the steering wheel fully. Clicking or clunking from the brake-by-wire system is a documented characteristic. Excessive noise or unusual pedal feel may indicate IBS issues.
Test infotainment system and charging schedule
Navigate menus, connect phone via wireless CarPlay, test voice commands. If the car has scheduled charging, verify it initiates correctly. Check for stored error messages.

Recalls and Technical Service Bulletins

Integrated brake system (IBS) servomotor weld failure (2024-2025 models) Critical - verify completed

Steering spindle double universal joint (June-July 2024 production) Critical - verify completed

Electric drive motor software HV shutdown (2024 i5, recall 25V-395) Critical - verify completed

Pedestrian warning sound generator failure (June-December 2023 production) Verify completed

Steering wheel hands-on detection ground connection (2024 models) Verify completed

A/C wiring harness fire risk near cabin filter (2024-2026 models) Critical - verify completed

The BMW i5 M60 has an unusually high number of recalls for a car this new. Contact BMW with the VIN to verify every recall has been completed. Pay particular attention to the IBS brake system, drive unit software, and A/C wiring harness recalls, as these have safety implications.

Warranty Status

Factory warranty (2 years, 3 years from Nov 2016 with BMW 2+1) May still apply on 2024+ models. Check registration date.

High-voltage battery warranty 8 years / 160,000 km with 70% capacity guarantee

Electric drivetrain warranty 8 years / 160,000 km (motor, inverter, reducer)

Rust perforation warranty 12 years

Early 2024 i5 M60 models may still be within the 3-year BMW factory warranty (2+1 program, requires first service at a BMW dealer within 2 years). The 8-year / 160,000 km HV battery and drivetrain warranty provides substantial protection for the most expensive components. Recall work is always free regardless of warranty status.

Sources: Research draws on model-specific owner forums and owner communities, recall information from official authorities, German automotive press, and multiple workshop cost references cross-checked against each other.

This report is for informational purposes only and does not constitute professional advice. Estimates may be inaccurate. Always have a qualified specialist inspect the vehicle before purchase. We accept no liability for decisions made based on this information.
