BMW 316i E36 Reliability - Problems & Costs

Common Problems

Cooling system failure (radiator, thermostat, expansion tank)

€400 - 1,2001 of 7

Plastic cooling components become brittle with age and fail without warning · more· less

The E36 cooling system relies on plastic thermostat housings, expansion tanks, and radiator end tanks that degrade after 20+ years. When one component fails, overheating can cascade into head gasket damage within minutes. The expansion tank, thermostat housing, and upper radiator pipe are the most common failure points. A full cooling system overhaul (water pump, thermostat, hoses, expansion tank) costs around €400-600 in parts at an independent shop. If the radiator itself needs replacing, add another €200-400. On any E36 that hasn't had its cooling system refreshed, this is essentially a when-not-if situation. Budget for a preventive overhaul if there are no records of previous replacement.

Profile gasket / head gasket failure

€800 - 2,0002 of 7

The M43's two-piece head gasket design has a known weak front section · more· less

The M43 engine uses a two-piece profile gasket design, and the smaller front section is a documented weak point. Failure typically results from overheating events, even brief ones, because the aluminum head warps more easily than the cast-iron block. Symptoms include coolant loss without visible external leak, white exhaust smoke, and oil contamination. The repair itself is manageable on the single-cam M43 (around 8-10 hours labor), but head skimming is usually needed. At an independent shop, expect €800-1,200. If the head is severely warped or the block needs attention, costs can reach €1,500-2,000. Keeping the cooling system in good order is the best prevention.

Structural rust (rear arches, sills, jacking points)

€500 - 2,5003 of 7

Poor factory rust protection means most E36s now show corrosion in predictable areas · more· less

BMW's rust protection on the E36 was notably poor, particularly on pre-1994 cars that used water-based paint. The rear wheel arches have a U-shaped profile that traps mud and moisture, making them the first area to corrode. Sills rot underneath M-Sport body kits and mud flaps. Jacking points, door bottoms, front wings near the A-pillar, and the boot floor are also common rust areas. Surface rust on the arches costs around €400-600 to cut back, treat, and respray both sides. If rust has reached structural areas (sills, subframe mounts, floor pan), repair costs escalate quickly to €1,500-2,500+, and at that point the car may not be economically viable to fix. Inspect thoroughly underneath, not just the visible panels.

Window regulator failure

€150 - 3504 of 7

Plastic clips and motor magnets wear out, causing windows to slip or stop working · more· less

The E36 front window regulators are a known weak point. The plastic clips that hold the window glass break, or the motor magnets become displaced (especially on coupes). When the clip fails, the window drops into the door panel. Aftermarket regulators exist but are often poor quality, so genuine BMW parts are recommended despite higher cost. Parts cost €80-150 per regulator, and labor runs 1-2 hours per side. Most E36s will need at least one regulator replacement during ownership.

Suspension bushing and shock mount wear

€300 - 8005 of 7

Front control arm bushings and rear shock mounts deteriorate with age · more· less

The E36 consumes suspension components steadily. Front lower control arm bushings wear, causing vibration under braking and vague steering feel. Rear shock mounts, made of thin sheet metal, can crack after 60,000-100,000 km, producing a rattle over bumps. Ball joints and anti-roll bar links also fail regularly. A front control arm bushing kit costs €80-120 in parts. Rear shock mounts are cheap (€30-50 per pair) but labor adds up. If shock mount cracking has progressed to the body metalwork, welding repair is needed. A full front suspension refresh (bushings, ball joints, ARB links) costs €300-500 in parts plus 4-6 hours labor.

Oil leaks (valve cover gasket, oil filter housing)

€100 - 4006 of 7

Gaskets harden with age, causing oil seepage from predictable locations · more· less

The valve cover gasket and oil filter housing gasket dry out and shrink from engine heat over time, creating oil leaks. Oil seeping from the valve cover can reach the spark plug wells. The oil filter housing gasket is a classic BMW leak point dating back to the E36 era. Both are straightforward repairs, but diagnosing the exact leak source requires careful inspection since oil can migrate. Valve cover gasket replacement costs €100-200 with labor. Oil filter housing gasket is similar. These are low-severity issues but should be addressed to prevent oil dripping onto hot exhaust components.

Crankcase ventilation (CCV/PCV) valve failure

€100 - 3007 of 7

Failed valve creates vacuum imbalance causing oil consumption and rough idle · more· less

The crankcase ventilation valve regulates pressure inside the engine. When it fails (typically sticking open), it creates excessive vacuum, pulling oil past seals and causing increased oil consumption, blue exhaust smoke, rough idle, and potentially triggering the check engine light. The part itself is inexpensive (€20-40), and replacement is a relatively simple job. However, a failed CCV can cause secondary symptoms that are misdiagnosed as more serious problems. On high-mileage M43 engines, this should be one of the first things checked when oil consumption increases.

Simple and robust engine, but age demands preventive attention

The M43B16 engine is one of BMW's most straightforward and reliable four-cylinders. It uses a timing chain (no belt replacement needed), has no VANOS system, and only 8 valves. With basic maintenance, the engine itself can exceed 300,000 km. The main ownership concerns at this age are cooling system integrity, structural rust, and worn suspension components. A well-maintained E36 316i with solid bodywork and a refreshed cooling system can be a remarkably affordable classic to run. The key is thorough inspection before purchase.

Pre-Purchase Inspection Checklist

General checks

Service history
Look for records of oil changes, cooling system work, and major repairs. At this age, any documentation adds significant value.
Tires
Check tread depth, age (date codes on sidewall), and uneven wear patterns indicating alignment or suspension issues.
Cold start
Start the engine completely cold. Listen for timing chain rattle in the first 10-20 seconds and watch for excessive exhaust smoke.
Test drive
Drive for at least 20 minutes. Feel for vibration under braking (bushings), rattling over bumps (shock mounts), and any overheating tendency.

Specific for this vehicle

Inspect all wheel arches, sills, and jacking points for rust
Remove plastic arch liners if possible. Check behind side skirts. Poke suspect areas with a screwdriver. Rear arches and sills under M-Sport kits are the worst areas.
Check cooling system thoroughly
Inspect the expansion tank for discoloration and cracks. Check the thermostat housing for weeping. Look at all hoses for swelling or hardening. Ask when the cooling system was last refreshed.
Look for oil leaks around valve cover and oil filter housing
With the engine running, inspect the top and sides of the engine for fresh oil seepage. Minor weeping is normal on older engines but active dripping needs attention.

+ 3 more checksShow less

Test all four electric windows
Operate each window fully up and down. Listen for grinding or jerky movement. A window that drops into the door when the clip breaks is a common failure.
Check rear shock mounts from inside the boot
Look at the shock mount towers for cracking in the sheet metal. Press on the rear corners of the car and listen for clunking or metallic rattling.
Inspect brake lines for corrosion
On cars this age, metal brake lines can corrode through. Inspect along the underside of the car. Replacement is safety-critical and moderately expensive.

Recalls and Technical Service Bulletins

Steering column lower joint corrosion (various E36 models, primarily RHD) Verify completed

Takata airbag inflator (select E36 models with original airbags) Verify with VIN

Due to the age of the E36, most recalls have been completed long ago. However, verify with BMW using the VIN that all applicable recalls have been addressed. The Takata airbag recall may apply if the original airbag module is still installed.

Warranty Status

Factory warranty (2 years) Expired on all E36 models

Rust perforation warranty (12 years) Expired on all E36 models

Extended warranty availability Not available for vehicles of this age

All BMW E36 316i models are well outside any original warranty coverage. No extended warranty programs are available for cars of this age. Budget for all maintenance and repairs as out-of-pocket expenses.

Sources: Research draws on model-specific owner forums and owner communities, recall information from official authorities, German automotive press, and multiple workshop cost references cross-checked against each other.

This report is for informational purposes only and does not constitute professional advice. Estimates may be inaccurate. Always have a qualified specialist inspect the vehicle before purchase. We accept no liability for decisions made based on this information.

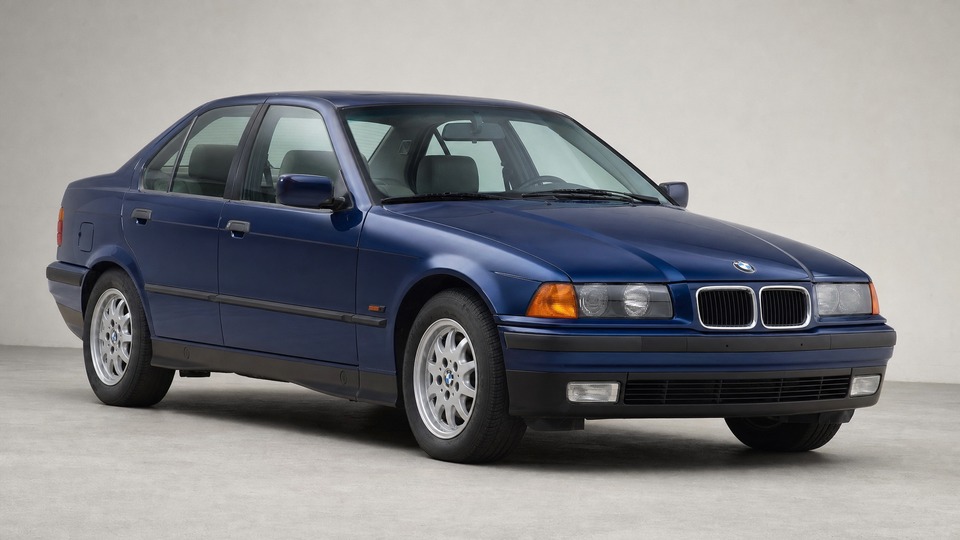

BMW 316i E36
