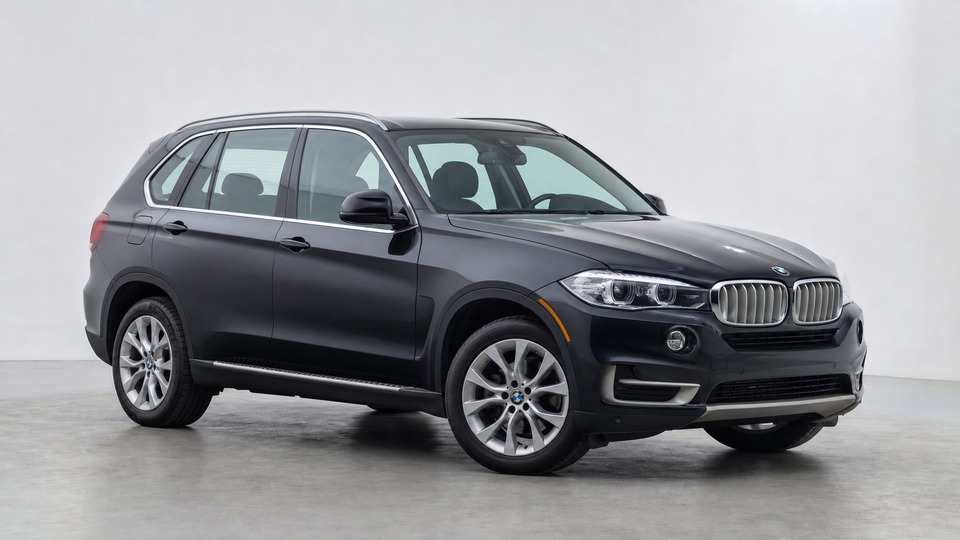

BMW X5 xDrive40d F15

BMW issued multiple recall campaigns (2018 and 2021) affecting N57 diesels in the F15 X5. The EGR cooler can develop internal cracks, allowing coolant to mix with diesel soot at high temperatures. This creates flammable deposits that can melt the intake manifold and in rare cases cause a fire. BMW replaced the EGR cooler free of charge under recall, but earlier replacement parts were also defective, leading to an updated recall in 2021 with a cooler from a new supplier. If the recall has been completed with the latest updated part, the risk is significantly reduced. If not yet done, contact BMW immediately. If the car is outside the recall scope or repair is not covered, independent replacement costs approximately 1,500-2,500 euros including labor. The twin-turbo 40d is affected in the same way as the single-turbo 30d.

The xDrive40d uses a twin-turbo system where a smaller turbo handles low-rpm response and a larger turbo provides peak power. Both turbos share oil and coolant feeds, and either can develop bearing wear, oil seal leaks, or actuator faults over time. The smaller turbo typically fails first, often between 120,000-180,000 km, with symptoms including whistling noises, reduced boost, and excessive exhaust smoke. Replacing a single turbo at an independent specialist costs approximately 2,000-3,000 euros, while replacing both turbos runs 3,500-5,000 euros including labor. Forum experience suggests the twin-turbo system is somewhat more reliable than the triple-turbo M50d setup, as the load is spread between two units rather than concentrated on one (as in the 30d). However, when repairs are needed, the parts and labor are significantly more expensive than on the single-turbo variant.

This is one of the most common issues on the N57 engine. The rubber gasket between the oil filter housing and the engine block hardens over time and begins to leak. If ignored, oil can reach the serpentine belt, causing it to slip or be pulled into the front crankshaft seal area, turning a 400-euro repair into a much more expensive one. The gasket itself costs under 30 euros, but labor takes 2-4 hours due to accessibility. At an independent BMW specialist, expect 400-600 euros total. At a BMW dealer, 600-900 euros. On cars over 8 years old, this is an almost expected repair.

The N57 valve cover gasket fails due to heat cycling over time. On the diesel engine, the repair is more involved than on petrol variants because the intake manifold and all injectors must be removed to access the valve cover. Parts cost approximately 200-400 euros (valve cover with integrated gasket plus injector seals). Labor is 4-6 hours at a specialist. Total cost at an independent shop is typically 600-800 euros, or 900-1,200 euros at a BMW dealer. This repair is commonly needed between 100,000 and 160,000 km.

The F15 X5 xDrive uses an electronically controlled transfer case that distributes torque between front and rear axles. The internal actuator motor gear is made of plastic and can wear against the metal motor gears, causing stripped teeth and loss of torque distribution control. The clutch pack also degrades, particularly if tires are mismatched or the transfer case fluid has not been changed. Symptoms include shuddering or binding during low-speed turns (especially noticeable in parking manoeuvres), drivetrain warning messages, and clicking noises from underneath. An actuator gear replacement costs 600-1,200 euros at a specialist. If the internal clutch pack is damaged, a full rebuild or replacement runs 2,000-3,000 euros. The 40d's additional torque compared to the 30d can accelerate wear if maintenance is neglected. Preventive transfer case fluid changes every 60,000 km and always running matched tires help significantly.

The N57 DPF requires sustained driving at highway speeds for active regeneration. Cars used predominantly for short urban trips will accumulate soot faster than it can be burned off. If the thermostat is faulty and coolant temperatures stay below 75 degrees, regeneration is further impeded. Symptoms include reduced power, DPF warning light, and eventually limp mode. A forced regeneration at a dealer or specialist costs 200-400 euros if the filter is not severely blocked. Professional cleaning costs 400-800 euros. If the DPF is beyond recovery, OEM replacement costs 2,000-3,000 euros including labor. Regular motorway driving of at least 30 minutes once or twice a week prevents this issue almost entirely.

Not all F15 X5 models have rear air suspension; it is an option. If equipped, the rubber air springs can develop cracks and leak after 7-10 years, causing the rear to sag overnight. The compressor then works harder to compensate and eventually fails. A single aftermarket air spring costs 150-300 euros; OEM springs are 500-800 euros each. The compressor costs 500-900 euros fitted. If both springs and the compressor need replacement, total cost at an independent shop runs 1,200-2,000 euros, or up to 2,500 euros at BMW. Some owners convert to conventional coil springs for approximately 600-800 euros to permanently eliminate the issue, though this removes ride height adjustment.

The N57 intake manifold contains plastic swirl flaps mounted on a metal rod. Over time, engine vibration and carbon deposits from the EGR system cause these flaps to wear and stick. Symptoms include loss of power when starting from cold, rough idle, and fault codes related to swirl flap position. A new intake manifold with swirl flaps costs approximately 200-350 euros. Alternatively, many specialists recommend a swirl flap delete using aluminum blanking plugs (around 50-100 euros for the kit) with labor of 200-300 euros. The delete approach is a popular permanent fix but may affect emissions compliance in some countries. This issue commonly presents between 80,000 and 150,000 km.

The F15 X5 uses an electronically controlled water pump that can fail suddenly. When it stops working, the engine overheats quickly, potentially causing head gasket or cylinder head warping damage if not stopped immediately. The pump typically lasts 80,000-120,000 km. The thermostat is electronically controlled and often fails around the same time. Replacing both together is recommended. Parts cost approximately 300-500 euros, with total labor-inclusive cost of 600-800 euros at an independent shop or 900-1,200 euros at a BMW dealer. A malfunctioning thermostat that keeps the engine too cool also prevents DPF regeneration, creating a cascade of secondary issues.

The F15 X5 panoramic sunroof has four drain tubes that route water from the sunroof channel down through the A and C pillars to exit near the wheel arches. These tubes clog with leaves, dirt, and pollen, causing water to overflow into the headliner and footwells during heavy rain. If caught early, clearing the drains with compressed air is straightforward and costs 100-200 euros at a shop. However, if water has damaged electronics (footwell modules, amplifiers), repair costs can reach 800-1,500 euros. Regular cleaning of the sunroof channel and periodic drain flushing every 1-2 years prevents this issue.

The N57 engine has its timing chain at the rear of the engine, meaning the gearbox must be removed for replacement. While the N57 is significantly less prone to timing chain failure than the smaller N47 four-cylinder, stretch does occur, typically on cars exceeding 200,000 km with extended oil change intervals. Experienced BMW technicians report this as a rare failure compared to the N47, where it is near-universal. Symptoms include a brief rattle on cold start that disappears within seconds, and rough idle. Cost is 2,500-3,500 euros at an independent specialist, or 3,500-4,500 euros at BMW, due to the extensive labor involved. Using correct specification oil (BMW Longlife-04) and changing it every 15,000 km rather than the factory-recommended 20,000-30,000 km interval is the best preventive measure.
