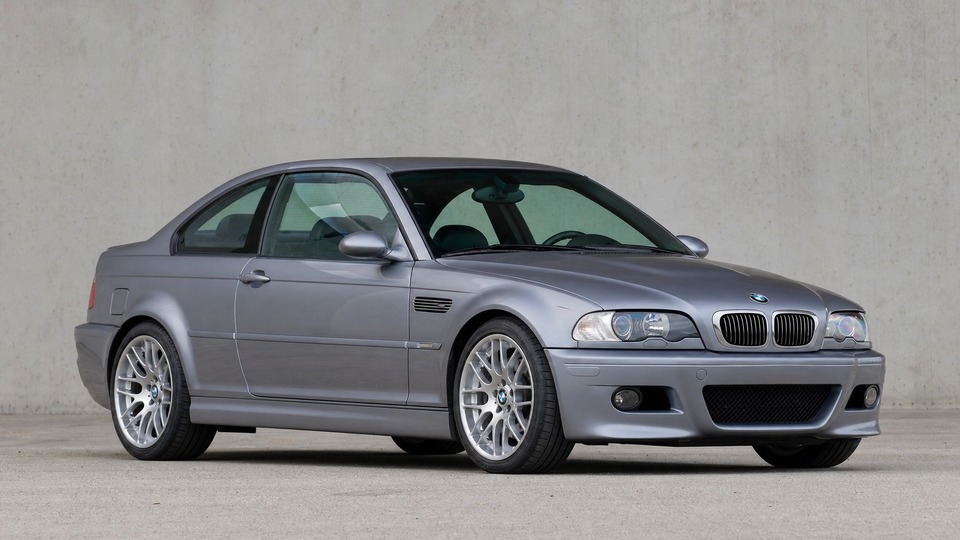

2000-2006 · 3.2L S54B32 inline-six (338 hp EU / 333 hp US)
The last naturally-aspirated M3 and arguably BMW's greatest driver's car. Revered for its high-revving S54 engine, hydraulic steering, and sublime chassis balance - this is a true enthusiast's machine. However, ownership demands respect: rod bearings need preventative replacement every 60,000-80,000 km, VANOS systems require rebuilding, and the infamous rear subframe cracks affect virtually all examples. Early cars (2001-2003) are more prone to rod bearing issues. The manual gearbox is significantly more reliable than the SMG automated manual. Budget appropriately - this is an expensive car to maintain properly, but the driving experience is unmatched in this segment.
Expected Annual Maintenance Costs
€1,700 - €3,200/year
15,000 km/year
Fixed costs
€900-1,400
Risk buffer
€800-1,800
What Can Break
bars = likelihood
Rod bearing failure€2,000 - €8,000
High-revving S54 places stress on rod bearings; catastrophic if neglected · more· less
This is the most notorious S54 issue. BMW originally spec'd oil change intervals too long (8,000-11,000 km), causing lubricant breakdown. Additionally, stock bearing clearances were too tight at 0.001" versus industry standard 0.0025", preventing proper lubrication. Cars built 2001-2003 are most affected due to manufacturing inconsistencies. BMW issued a service bulletin requiring replacement between 2001-2003 production dates. Preventative replacement is critical every 60,000-80,000 km. Failure is catastrophic - bent connecting rods, damaged crankshaft, sometimes complete engine replacement. Difficult to detect before failure. Preventative replacement with upgraded bearings (BE Bearings or similar) costs €2,000-3,500. If bearings fail, expect €6,000-8,000+ for engine rebuild or replacement. Use quality oil (10W-60), change every 8,000 km maximum, and always warm engine properly.
Rear subframe cracks€1,200 - €5,000
Design flaw affects virtually all E46s; M3s suffer more due to added stress · more· less
This is the E46's Achilles heel. BMW used insufficient spot welding at subframe mounting points, unable to handle stress from aggressive driving or even regular use. Affects all 1999-2006 E46 sedans and coupes (convertibles less common). M3s particularly susceptible due to higher power and torque. Cracks appear between 50,000-150,000 km regardless of driving style. Many owners report all their E46s developing this issue. Cannot be fully diagnosed without removing subframe - bushings hide cracks. Preventative reinforcement costs €1,200-1,500 before cracks develop. With existing cracks requiring welding and full reinforcement (top and bottom plates): €3,000-5,000. Failure to address can lead to subframe tearing completely from chassis. Essential to reinforce proactively. Have upgraded bushings installed during repair to reduce future stress.
VANOS system failure€1,400 - €2,700
Variable valve timing system wears over time; cam gear bolts can break · more· less
The VANOS (Variable Nockenwellen Steuerung) provides variable camshaft timing. Common failures include worn solenoid, degraded seals/gaskets, heat-damaged wiring insulation causing sensor errors, and critically - cam gear bolts breaking. Symptoms: rough idle, rattling between 2,000-2,500 RPM, loss of power at certain RPMs, check engine light with VANOS codes. Broken cam gear bolts can cause timing chain destruction and catastrophic engine damage. Solenoid rebuild by specialists (Beisan Systems, Dr VANOS): €1,400-1,800 including parts and labor. BMW dealer replacement (new unit): €2,500-2,700. Essential to replace cam gear bolts during any VANOS work - bolts are cheap (€24 kit) but prevent disaster. Use only quality oil, change frequently. Combine VANOS work with valve adjustment to save on labor.
Sequential Manual Gearbox pump almost certain to fail; manual gearbox far more reliable · more· less
If your M3 has SMG (automated manual), pump failure is virtually guaranteed at some point. Common issues: pump motor failure, mechatronic unit faults, valve body problems, relay failures. Symptoms: EPC light, inability to shift, clunking during shifts, car stuck in gear. BMW dealer charges €3,500-4,000 for complete pump assembly replacement. Budget alternative: electric motor-only rebuild by specialists (Eurton Electric, others) costs €350-600 versus full pump replacement. Labor is 3-7 hours. Original pumps typically last 10-15 years or 100,000 km. Manual gearbox E46 M3s are significantly more reliable and desirable - avoid SMG unless you're prepared for this expense or converting to manual (€3,000-5,000 conversion cost).
Cooling system failures€600 - €1,600
Plastic expansion tank and water pump fail; overheating causes severe engine damage · more· less
The E46 M3 cooling system is more reliable than standard E46s but still has weak points. Plastic expansion tank cracks from heat cycling - common after 80,000 km or 10+ years. Failure causes coolant loss and overheating. Electric water pump/thermostat housing assembly fails between 110,000-160,000 km. Symptoms: coolant warning light, poor cabin heating, engine overheating. Expansion tank: €100-150 (OEM Behr/Hella recommended over cheap alternatives). Consider aluminum upgrade (Moroso) for €200-300 as permanent solution. Water pump/thermostat assembly: €400-600 parts, 6 hours labor (€600-1,000 total job at specialist). Preventatively replace expansion tank every 120,000 km. During water pump replacement, refresh entire cooling system: hoses, thermostat, belt, tensioners (total €1,200-1,600). Use only BMW coolant mixed 50/50 with distilled water.
Valve adjustment required€350 - €900
Shim-under-bucket design requires periodic adjustment every 50,000 km · more· less
Unlike hydraulic valve trains, the S54 uses mechanical shim-under-bucket lifters requiring periodic clearance checks. This is normal maintenance, not a flaw - racing-derived design for high-RPM reliability. BMW recommends inspection/adjustment every 50,000 km. Clearances naturally increase as rockers wear; incorrect clearance causes power loss (up to 30 hp), rough running, or potentially shim ejection into head causing catastrophic damage. UK specialists: €350-450 including shims and valve cover gasket. BMW dealer: €750-900. DIY possible but requires specialty tools and shim kit (€1,000 for complete BMW kit with 138 shims). Labor is 2-3 hours. Combine with VANOS work to share labor costs. Lead engineer stated clearances rarely need adjustment, but check regardless - if shims fall out, repair becomes head-off job costing thousands.
Oil leaks (multiple sources)€200 - €1,200
Common leak points: valve cover gasket, oil filter housing, pan gasket, seals · more· less
All E46 M3s over 15 years old develop oil leaks to some degree. Most common sources: valve cover gasket (burning oil smell, oil on exhaust), oil filter housing gasket, VANOS sealing plate/gasket, oil pan gasket, front/rear main seals, cam position sensor O-ring. Valve cover gasket: €250-350 including genuine BMW gasket and 2-3 hours labor. Critical to use OEM gasket and apply RTV sealant at VANOS-to-head seam. Aftermarket (Elring) gaskets known to leak. Oil filter housing: €150-300. Multiple simultaneous leaks common on high-mileage cars - budget €800-1,200 to address comprehensively. Always fix oil leaks immediately - oil on exhaust creates fire risk, and low oil level destroys rod bearings. Check oil level weekly without fail.
Rubber differential mount bushings deteriorate from heat, age, and drivetrain stress. Symptoms: loud thud when releasing clutch from standstill, clunk when lifting off throttle, sensation differential is "trying to escape" during hard shifts. Common after 80,000-120,000 km. Cannot buy bushings separately - must purchase complete differential cover (€180-200) or use E36 bushings as budget alternative (€16 for pair). Labor is challenging: entire rear carrier must be removed, brake lines disconnected, special tools needed for bushing removal/installation, alignment required afterward. Specialist shops: €450-500 total. Some owners upgrade to polyurethane or solid UHMW bushings for longevity (slight NVH increase). Factor this into purchase budget on higher-mileage cars.
Control arm bushings (RTAB/FCAB)€350 - €1,300
Front and rear trailing arm bushings wear, affecting handling and tire wear · more· less
RTAB (Rear Trailing Arm Bushing) and FCAB (Front Control Arm Bushing) wear over time. Symptoms: uneven tire wear, vague steering response, clunking over bumps. Should be inspected every 100,000 km and replaced as needed. Rear RTABs: €40-65 for OEM Meyle HD kit. Front FCABs: €85-100 for OEM pair. BMW dealer quote for all RTABs and FCABs: €1,300 (excessive). Independent specialist: €400-600 for parts and labor. DIY-friendly with basic tools and press. Aftermarket upgrades available (polyurethane, hybrid designs) offering longer life and sharper handling at cost of some comfort. These bushings are wear items - budget for replacement if purchasing high-mileage car. Affects alignment, so alignment essential after replacement.
High-torque S54 wears clutch; dual-mass flywheel expensive · more· less
Manual transmission clutch typically lasts 100,000-150,000 km with normal driving, less if tracked or abused. The E46 M3 uses a dual-mass flywheel (DMF) which is expensive. Sachs OEM clutch kit (disc, pressure plate, release bearing): €470. Genuine BMW dual-mass flywheel: €1,800-2,000. Independent specialist installation: €1,800-2,500 total with OEM parts. BMW dealer: €4,000-5,000. Labor is 4-5 hours. Some owners opt for single-mass flywheel conversion (lighter, cheaper, more engaging but harsher) for €1,200-1,600 total. If purchasing used car with unknown clutch history above 120,000 km, factor potential replacement into budget within 30,000-50,000 km.
High-maintenance performance icon
The E46 M3 is an exceptional driver's car but demands meticulous maintenance and deep pockets. Rod bearings and subframe issues are near-certainties requiring proactive attention. Preventative maintenance is not optional - it's the price of admission. Buy the best example you can afford with complete service history, ideally with rod bearings, VANOS, and subframe already addressed. Manual transmission strongly preferred over SMG. Budget €2,000-3,000 annually for proper care, more for deferred maintenance. This is not a casual ownership proposition, but for enthusiasts willing to invest, the driving experience justifies the costs.
Pre-Purchase Inspection Checklist
General checks
Service history
Complete BMW specialist or dealer service records absolutely essential. Verify oil changes every 8,000 km maximum. Missing service history is major red flag.
Cold start
Must start engine completely cold. Listen carefully for any timing chain rattle, VANOS noise, or irregular sounds. Rattle lasting more than 2-3 seconds indicates worn timing components.
Extended test drive
Minimum 30 minutes including highway, city, and spirited driving. Engine must reach full operating temperature. Check all gears, clutch feel, any drivetrain clunks.
Lifting inspection
Car must be inspected on a lift. Subframe cracks cannot be properly assessed from underneath without lift access. Non-negotiable.
Specialist pre-purchase inspection
Pay €200-400 for comprehensive inspection by E46 M3 specialist. They know exactly where to look and what to check. Money well spent.
Specific for this vehicle
Rod bearing service history
Verify when rod bearings were last replaced. If never done and over 80,000 km, budget €2,500-3,500 immediately. Ask for oil analysis reports (Blackstone Labs) if available.
Subframe inspection (critical)
Inspect all four subframe mounting points on lift. Look for cracks, stress fractures, previous reinforcement work. Check subframe bushings for tears. If no reinforcement, budget €1,500-3,000.
VANOS operation test
Listen for VANOS rattle between 2,000-2,500 RPM. Check for smooth power delivery throughout rev range. Rough idle or power loss indicates VANOS issues.
SMG operation (if equipped)
Test all shift modes (1-6, auto mode). Feel for jerky shifts, hesitation, clunking. Check for any warning lights. SMG cars are harder to sell and less desirable.
Cooling system inspection
Check expansion tank for cracks, discoloration, age. Inspect coolant condition (should be bright blue/green, not brown). Check for leaks around water pump area.
Oil leak inspection
Check valve cover, oil filter housing, oil pan, front/rear main seals for leaks. Light seepage acceptable on older cars, but active dripping requires immediate repair.
Differential clunk test
From standstill, release clutch smoothly - listen for clunking from rear. Test throttle lift-off in 2nd gear - any loud clunk indicates worn diff bushings.
Tire wear pattern inspection
Uneven inner edge wear on front tires indicates worn control arm bushings or poor alignment. Excessive rear tire wear normal due to power and limited-slip differential.
Check production date (VIN)
Cars built 2001-2003 more prone to rod bearing issues. 2004-2006 models have slightly improved internals and oil pump. Prefer later production.
Valve adjustment history
Verify valve clearances checked/adjusted per BMW schedule (every 50,000 km). Neglected valve adjustment can cause power loss or engine damage.
Recalls and Technical Service Bulletins
Rod bearing service bulletin (2001-2003 production)Verify replacement done
Differential grinding noise (produced up to 9/2001)Check if applicable
Sport seat cracking/clicking (produced before 9/2001)Common issue, check condition
Transmission harsh downshift TSBSoftware update available
Contact BMW dealer or specialist with VIN to verify all recalls and service bulletins completed. The rod bearing service bulletin for 2001-2003 cars is particularly critical. Check NHTSA website for additional recalls.
Warranty Status
Factory warranty (4 years / 80,000 km)Expired on all E46 M3s
Extended warranty availabilityLimited due to age; specialist coverage rare
All E46 M3s are now 18-25 years old and well outside factory warranty. Third-party extended warranties are difficult to obtain and typically exclude the most expensive repairs (rod bearings, subframe). Self-insure by maintaining comprehensive service history and budgeting for preventative maintenance. Join E46 M3 owner communities for advice and specialist recommendations.
This report is for informational purposes only and does not constitute professional advice. Estimates may be inaccurate. Always have a qualified BMW specialist inspect the vehicle before purchase. We accept no liability for decisions made based on this information.
