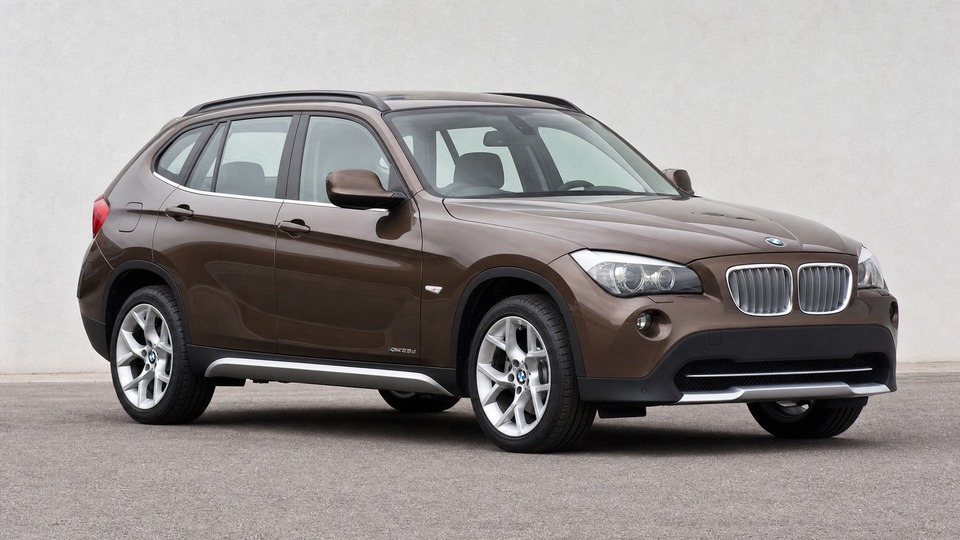

BMW X1 xDrive25d E84

The N47D20T1 twin-turbo diesel in the xDrive25d positions its timing chain at the rear of the engine, between the block and the gearbox. The chain, guides, and tensioner wear over time, particularly on cars serviced at BMW's extended long-life oil change intervals. The xDrive25d was only available from 2012 onwards with the N47TU revision, which has improved chain components compared to earlier N47 engines, reducing (but not eliminating) the failure rate. Symptoms begin with a metallic rattle on cold start lasting 1-30 seconds. Once audible, the chain has already stretched significantly. Replacement requires gearbox removal, costing 1,500-2,500 euros at an independent specialist. If the chain snaps or jumps, catastrophic valve-piston contact occurs, requiring engine replacement at 3,500-5,000 euros. Oil changes every 10,000-15,000 km using quality 5W-30 significantly reduce risk.

The xDrive25d uses a compound twin-turbo system with a small low-pressure turbo for quick spool-up and a larger high-pressure turbo for mid-range and top-end power. Common failure modes include wastegate actuator sticking (particularly on gently driven or short-trip cars), oil feed line degradation leading to turbo bearing failure, and variable-geometry vane sticking from carbon buildup. The twin-turbo setup approximately doubles the turbo repair cost compared to the single-turbo xDrive20d. Individual turbo replacement at a specialist runs 1,000-1,500 euros; both turbos together run 1,800-3,000 euros. If turbo failure sends debris into the engine, damage escalates to 3,500-4,500 euros. Regular motorway driving and short oil change intervals help prevent actuator and bearing failures.

BMW issued a major recall affecting approximately 800,000 diesel vehicles worldwide due to defective EGR coolers. The N47-equipped X1 E84 is included in the affected models. Coolant can escape from the cooler and combine with diesel soot at high temperatures, potentially causing the intake manifold to melt and, in rare cases, vehicle fires. BMW has expanded this recall multiple times since 2018 and acknowledged that earlier corrective actions were inadequate. An optimised cooler from a different supplier was only introduced in 2022. The recall repair is free at BMW dealers, but many cars may not have had it completed yet. Always verify recall status with BMW using the VIN before purchase. If the recall has been completed, cost is zero. If repair is needed outside the recall scope, EGR cooler replacement costs 600-1,500 euros at an independent workshop.

The ATC35L transfer case in the E84 xDrive uses a servo motor with internal plastic gears that wear over time. The higher torque output of the 25d (450 Nm vs 350-400 Nm on the 20d) puts slightly more stress on the transfer case components. Symptoms include a 4x4 warning light, ABS and traction control deactivation, clicking noise from the transfer case after shutting off the engine, and drivetrain vibrations or juddering in tight turns. Replacing only the actuator motor runs 800-1,200 euros. If the internal clutch pack is damaged from running with mismatched tires, a full transfer case replacement costs 2,000-2,500 euros. Prevention: always use matched tires within 3 mm tread depth across all four wheels, and change the transfer case fluid every 60,000 km despite BMW claiming it is a lifetime fill.

The N47 intake manifold contains plastic swirl flaps that optimise airflow at different engine speeds. Heat cycling and vibration cause the plastic to become brittle over time. The actuator linkages wear, causing the motor to overshoot and trigger fault codes with limp mode. In the worst case, broken flap material enters a cylinder, damaging pistons and valves (repair cost 3,000+ euros for engine work). Actuator repair alone costs 150-350 euros at a specialist, while a new intake manifold fitted runs 850-1,200 euros. Many owners opt for a preventive blanking with aluminium plates at around 100-200 euros total, which eliminates the risk with no noticeable performance loss. Failure typically occurs between 80,000 and 150,000 km.

The DPF requires temperatures above 600 degrees Celsius to regenerate, which typically needs 20-30 minutes of sustained driving at 60+ km/h. Cars used predominantly for short urban trips accumulate soot faster than the system can clear it. Failed regeneration cycles dump unburnt fuel into the engine oil, raising the oil level and diluting it. Professional forced regeneration costs 100-250 euros if performed early. DPF cleaning runs 350-600 euros. Full DPF replacement costs 1,200-2,000 euros including fitting. Check the engine oil level before buying: if significantly above the maximum mark, diesel has been contaminating the oil from failed regenerations.

A common leak point on the N47 engine. The rubber gasket between the oil filter housing and the engine block hardens over time from repeated heat cycling. Oil seeps from the housing and can drip onto hot exhaust components, creating a burning oil smell. The gasket itself costs under 20 euros, but labour runs 2-4 hours due to limited access. Independent shops charge 300-400 euros, BMW dealers 450-600 euros. Often combined with valve cover gasket replacement to save on repeated labour costs.
