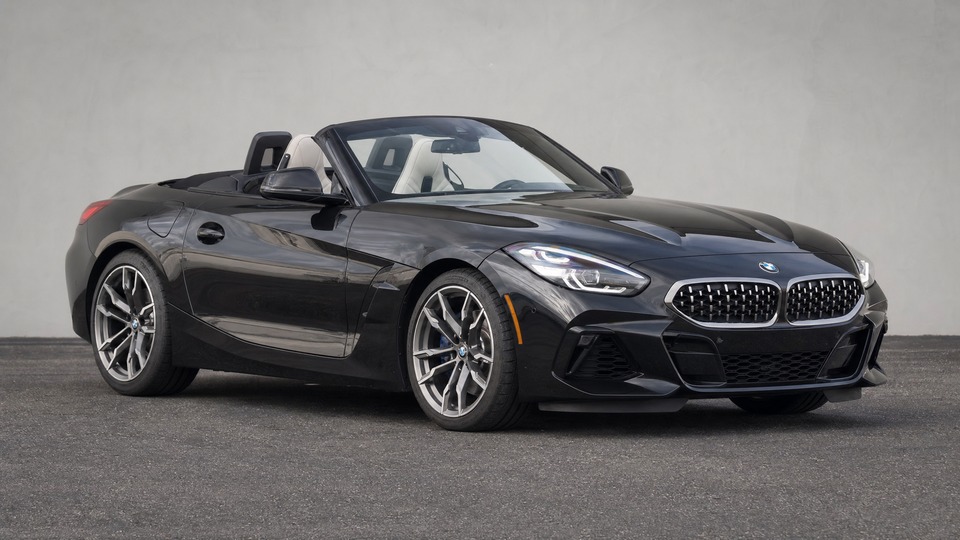

BMW Z4 sDrive20i G29

The B48 engine uses a plastic oil filter housing that also serves as a heat exchanger (oil cooler). Over time, the plastic warps from repeated heat cycles, causing the gasket to fail or the housing itself to crack. Symptoms include oil spots under the car, low coolant warnings, or in severe cases oil mixing with coolant. This is a well-documented issue across all B48-equipped BMWs. Gasket-only replacement at an independent shop costs around €800-1,200, while a full housing replacement (if cracked) runs €1,500-2,500. The coolant vent hose connected to the housing is also brittle and should be replaced at the same time. Most specialists now recommend replacing gasket, housing, and vent hose together as a package to avoid repeat repairs.

The B48 uses an electric water pump integrated with the thermostat housing. Failures are common between 80,000 and 120,000 km, although some cars see pump issues as early as 60,000 km. Symptoms include a coolant temperature warning, poor cabin heating, or the heater blowing maximum heat unexpectedly. Most specialists recommend replacing the water pump and thermostat together since they share the same cooling circuit and often fail in a similar timeframe. Parts cost approximately €300-500, with 3-5 hours of labor needed due to the tight engine bay in the Z4.

As the rubber gasket around the valve cover hardens with age and heat cycles, oil begins to seep down the side of the engine. On the B48, this repair is more involved than on older BMWs because the fuel injectors and high-pressure fuel line must be removed first, requiring special tools. The gasket itself costs around €30, but labor is the main expense. Independent shops typically charge €600-800, while BMW dealers may charge €800-1,000. If left unaddressed, oil can drip onto hot exhaust components, creating a burning smell and potential fire risk.

The Z4's soft-top drainage system relies on channels that run from the roof frame, through the A-pillars, and exit near the rear wheel arches. Leaves, dirt, and general debris gradually block these drains. When blocked, water overflows into the cabin, footwells, or boot during heavy rain. If caught early, cleaning the drains with a pipe cleaner costs essentially nothing but time. However, if water has been sitting in the boot or under carpets for an extended period, electrical damage to wiring harnesses, amplifier, or boot-mounted modules can result in repairs costing €500-800. Checking and clearing drains every 6 months is recommended, especially if the car is parked under trees.

The G29's fabric soft top is mechanically simpler than the E89's retractable hardtop, but still relies on electric motors, microswitches, and latch mechanisms that can fail over time. Reported issues include the roof stopping mid-cycle, latches not engaging properly, and the roof ECU throwing errors. Minor fixes like microswitch replacement or ECU recoding cost €500-800. More serious issues involving motor replacement or frame realignment can reach €1,500-2,500. This is less common on the G29 than on previous Z4 generations, and many cars reach high mileage without any roof mechanism problems.

Several G29 owners report the Harman Kardon audio system developing intermittent dropouts, particularly affecting the bass frequencies. The amplifier is located in a position exposed to heat and moisture. BMW dealer replacement costs €1,000-1,200, but specialist amplifier repair services can fix the unit for €200-400 by resoldering failed components. This issue affects multiple BMW models from the same era and appears linked to a supplier batch problem. Cars without the HK system use a simpler HiFi amplifier that is less failure-prone.

BMW uses fluid-filled engine mounts that gradually lose their damping properties as the fluid leaks out internally. Forum reports indicate some G29 owners have needed engine mount replacement as early as 30,000 km, though 60,000-80,000 km is more typical. Symptoms include increased vibration felt through the steering wheel and gear lever at idle, and a slight clunk when blipping the throttle in neutral. Parts cost approximately €150-200 per mount, with 2-3 hours of labor. This is a relatively straightforward repair at any BMW specialist.

BMW issued a global recall in early 2026 affecting Z4 models built between July 2020 and July 2022. The magnetic switch in the starter can develop excessive wear, leading to hard starting or, in rare cases, a short circuit and localized overheating. This is a free recall repair (starter replacement) if the car is affected. However, if you are buying a used car where the recall has not been completed, factor in the need to have this done promptly. Always verify recall status with BMW using the VIN before purchase.
