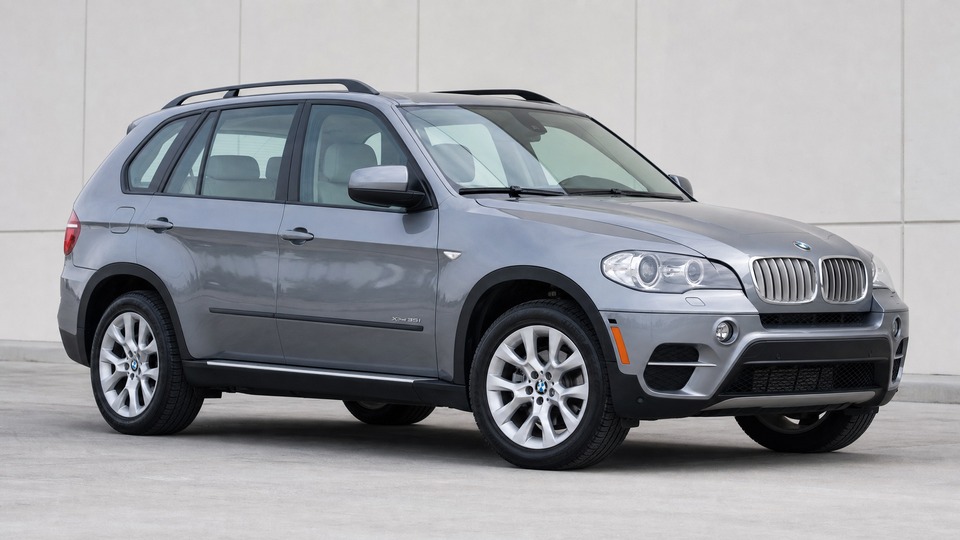

BMW X5 xDrive35d E70

The M57 uses a sequential twin-turbo arrangement with a smaller high-pressure turbo and a larger low-pressure turbo. Over time, turbo oil lines can leak, the wastegate actuator can stick, or bearings can wear. Symptoms include loss of power, excessive exhaust smoke, or a high-pitched whine. A single turbo replacement with genuine BMW parts costs around €2,000-3,500, while replacing both turbos plus the installation kit can exceed €5,000-6,000 at a dealer. Independent specialists often charge 30-40% less. Back pressure from a clogged DPF accelerates turbo wear, so maintaining the exhaust system is important. Many M57 engines reach 200,000+ km on original turbos with regular servicing.

The DPF traps soot and burns it off during regeneration cycles, which require sustained highway driving. Vehicles used predominantly for short urban trips often fail to complete regeneration, causing soot accumulation. A severely clogged DPF triggers limp mode and can damage the turbos through excessive back pressure. Professional cleaning costs €300-500 and can restore function if the filter is not damaged. Full replacement with a genuine DPF runs €1,500-3,000 including labor. Parts availability can be limited and lead times long. Regular long-distance driving significantly reduces the risk. The DPF warning light should never be ignored.

The Exhaust Gas Recirculation valve collects carbon deposits over time, restricting airflow and reducing performance. Symptoms include rough idle, poor throttle response, and increased emissions. EGR valve replacement costs €300-600 for parts plus 2-4 hours labor. More seriously, BMW issued a recall for EGR coolers on certain diesel models due to internal coolant leaks. When the cooler leaks, coolant mixes with diesel soot, and high EGR temperatures can cause the intake manifold to melt or smolder, creating a fire risk. EGR cooler replacement with intake manifold inspection runs €1,500-2,500. Verify with BMW using the VIN whether any EGR-related recalls apply to the specific vehicle.

The optional rear air suspension (standard on many European models) uses air springs that perish over time. A small air leak forces the compressor to run frequently, eventually burning it out. A single air spring replacement costs €400-600. The compressor costs €600-900 to replace. If both springs and the compressor fail together (common when a leak is ignored), the combined repair reaches €1,200-2,000 at an independent shop or €2,500-3,500 at a BMW dealer. Conversion to conventional springs is possible for €800-1,200 but removes the self-leveling function. Check ride height at all four corners and listen for the compressor running after the engine is switched off.

The xDrive system uses a transfer case with an electric actuator motor that distributes torque between front and rear axles. The actuator motor can fail due to internal gear wear, triggering xDrive warning messages and drivetrain shudder, especially during turns. Dealers often quote full transfer case replacement (€3,000-4,500), but the actuator motor can usually be replaced separately for €800-1,200 at a specialist. Internal transfer case failure (from mismatched tires or neglected fluid changes) is more expensive. Regular transfer case fluid changes every 60,000 km help prevent issues. Mismatched tire sizes across axles accelerate wear significantly.

The oil filter housing gasket (OFHG) and oil cooler gasket are well-documented weak points on the M57 engine. These rubber gaskets harden and shrink with age and heat cycling, allowing oil to seep from the housing. Oil may drip onto hot exhaust components, creating a burning smell and smoke. The OFHG replacement costs €200-400 at an independent shop. The oil cooler gasket is more involved, running €400-800 including labor. Both gaskets are commonly replaced together for €600-1,200. On the diesel 35d, the valve cover gasket can also fail at the intake inlet, allowing boost pressure into the crankcase and blowing oil past every seal. This is a more involved repair requiring intake removal.

The selective catalytic reduction system uses AdBlue (urea solution) to reduce NOx emissions. The system monitors fluid quality and level, and if a fault is detected, it displays a warning with a countdown of remaining starts before the engine will no longer start. Common failure points include NOx sensors (€250-500 each, two fitted), the AdBlue injector (€300-500), and the SCR tank temperature sensor, which cannot be replaced separately and requires full tank replacement (€1,000-1,500). Independent diagnosis is important, as dealers may quote full system replacement when only a sensor has failed.

The M57 engine uses swirl flaps in the intake manifold to improve low-load combustion. These flaps can fracture at the shaft, with debris potentially entering the cylinders. If fragments reach the combustion chamber, catastrophic piston and valve damage can result, requiring engine rebuild or replacement. BMW revised the design from late 2008, reducing the risk on later E70 models. Preventive swirl flap delete kits (aluminum blanks) cost €100-200 and are widely recommended by specialists as a precaution. If the flaps have already fractured without engine ingestion, manifold replacement costs €500-1,200. Full engine damage from ingested flap debris can exceed €5,000.

Diesel glow plugs heat the combustion chambers for cold starting. On the M57, glow plugs can seize into the cylinder head if not replaced proactively, making extraction much more difficult and expensive. Symptoms of failure include hard starting in cold weather, rough idle for the first few minutes, and white exhaust smoke. Replacement of all six glow plugs plus the control module costs €400-600 at an independent shop or €800-1,200 at a dealer. The glow plug service interval is approximately every 120,000 km. Seized glow plugs may require specialist extraction tools or drilling, adding significantly to the cost.

The rear lights mounted on the tailgate use butyl tape seals that commonly fail, allowing water to enter the housing. Water damages the small circuit boards and corrodes the LED connectors, causing lights to flicker or stop working. BMW addressed this with an updated rubber gasket seal. The updated gasket costs approximately €30-50 per light. If the circuit board is already corroded, the complete light unit needs replacement at €150-300 per side. This is a very common issue on E70 models of all engine variants and should be checked on every pre-purchase inspection.
