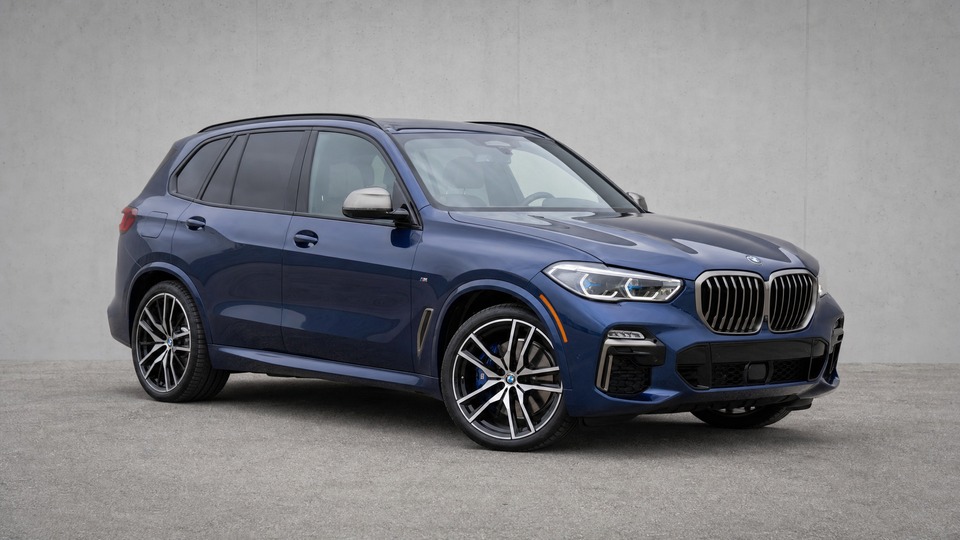

BMW X5 M50i G05

The N63 engine family places the exhaust manifolds and turbochargers inside the valley between the cylinder banks (the "hot-vee" design). While this is excellent for packaging and turbo response, it creates extreme heat exposure for the valve stem seals on both cylinder heads. Over time, this heat hardens and shrinks the rubber seals, allowing engine oil to pass into the combustion chambers and burn off. The N63TU3 represents a substantial improvement over earlier N63 versions: BMW added thermal shielding, switched from Alusil to arc-wire-sprayed cylinder bores, and fitted S63-derived connecting rods. The 2014 Customer Care Package that addressed original N63 defects and the class-action settlement (Bang vs. BMW) do not cover N63TU3 engines, as BMW considers the TU3 a fundamentally different design. However, forum reports indicate that oil consumption still begins climbing on many TU3 engines once they pass 80,000-120,000 km. Owners typically notice consumption rising from negligible to approximately 1 litre per 2,000-3,000 km. Symptoms include blue puffs from the exhaust on cold start or after idling, and a progressively dropping oil level between service intervals. Repair requires removing both cylinder heads to access and replace the seals. Independent BMW specialists in Germany typically charge €3,500-5,000, while BMW dealers quote €5,500-7,000 depending on whether additional work (valve guides, gaskets) is needed. Some specialists now offer in-situ seal replacement without full head removal for approximately €2,500-3,500, though this method is not universally available. Using high-quality 0W-20 oil at shortened intervals (10,000 km rather than the CBS-indicated 15,000-20,000 km) can slow seal degradation.

BMW xDrive transfer cases on 2019-2025 models are the subject of a class-action lawsuit filed in the U.S. District Court for the District of New Jersey. The core issue is that the ATX13-X transfer case's internal clutch packs bind and release erratically instead of engaging smoothly, causing the vehicle to jerk or shudder during low-speed maneuvers such as parking, roundabouts, and tight turns. BMW has been aware of this since at least May 2020, when they issued Service Industry Bulletin SIB 27-02-20 titled "Jerking or Shuddering From The Driveline." According to the lawsuit, BMW filled these transfer cases at the factory with fluid that does not meet their own specifications, and the units were marketed as "lifetime-filled" requiring no service. The first step is a transfer case fluid change (€250-500), which resolves the shuddering in some cases. BMW later released updated fluid specifications. If the fluid change does not resolve the issue, the internal clutch packs are damaged beyond recovery and the entire transfer case must be replaced. Replacement costs run €2,500-4,500 including the unit, coding, and labour. BMW covered many of these repairs under warranty, so if you are looking at a car where this was done under warranty, verify it through service records. For used cars now outside warranty, this is a significant financial risk. During a test drive, perform multiple low-speed tight turns in both directions (parking lot or roundabout) and feel for any juddering, jerking, or binding sensation through the drivetrain. If present, budget for a transfer case replacement before purchasing.

The G05 X5 M50i comes with standard air suspension (Adaptive M Suspension Professional). The most common failure pattern starts with the rear air springs developing micro-cracks in the rubber bellows, allowing slow air loss. The car sags at one or both rear corners after being parked overnight. The compressor then works overtime to compensate, which accelerates its own failure. A single rear air spring replacement costs €400-700 for the part plus €200-400 for labour. If both rear springs need replacement, budget €1,000-1,600. Compressor replacement runs €800-1,500 at independent shops, or €1,800-2,500 at BMW dealers. The plastic air manifold (valve block) can also develop micro-leaks, adding another €300-600 for parts and labour. Air suspension components have a typical service life of 80,000-120,000 km, though exposure to road salt, rough roads, and temperature extremes can accelerate deterioration. The critical lesson from owner forums is to address air spring leaks immediately: delaying a €400 spring replacement for several months can burn out the compressor, turning a €600 repair into a €2,000 bill. When inspecting a car for purchase, park it overnight if possible and check the ride height the following morning. Any visible sag indicates a leaking spring. Also listen for the compressor running repeatedly after the engine is started: it should pressurize once and stop.

BMW's cooling system design uses multiple plastic and composite components that age faster under the N63's elevated operating temperatures. The main electric water pump, auxiliary coolant pump, thermostat housing, and expansion tank are all known wear items. Failures typically occur between 80,000-150,000 km. The electric water pump is the most common failure: symptoms include a coolant warning on the iDrive display, engine overheating, or reduced cabin heating output. Replacement costs €700-1,200 at independent specialists, or €1,200-1,800 at BMW dealers. The expansion tank can develop cracks, particularly where the level sensor is fitted, causing coolant to weep or drip. Replacement is €300-500. The thermostat housing (integrated with the thermostat) costs €400-800 to replace, and BMW recommends replacing it together with the water pump if one fails. Coolant hose connections and the degas pipe also deteriorate. When inspecting a car for purchase, check the coolant level (should be between min and max), look for any stains or residue around the expansion tank, water pump area, and hose connections, and note any sweet smell from the engine bay when warm. If a coolant warning has recently been cleared from the car's fault memory, this should be investigated before purchase.

The N63TU3's hot-vee architecture creates an oven-like environment for every seal, gasket, and hose near the turbochargers. Over time, valve cover gaskets, turbo oil feed and return lines, and oil separator (CCV) components harden, crack, and begin leaking. This is distinct from internal oil consumption (valve stem seals): these are external leaks visible as oil dripping or weeping onto exhaust components, which can produce smoke and burning oil smell. Valve cover gasket replacement on the N63 is more complex than on inline-six BMWs due to the V8 layout: two valve covers, limited access in the hot valley, and the need to work around turbo plumbing. Independent shops charge approximately €1,200-2,000 for both valve covers, while BMW dealers quote €2,000-3,500. Turbo oil feed lines can leak at their fittings and are typically replaced during valve cover work for an additional €200-400 in parts. Oil leaks from the turbo area are a fire hazard if oil drips onto the hot exhaust manifold. When inspecting a used M50i, look carefully at the engine bay from below and above for any oil residue, particularly around the centre of the engine (the valley area), along the turbo plumbing, and on the exhaust headers. Any active dripping should be investigated and repaired before regular use.

BMW issued a global recall (24V-104 in the US, equivalent EU recall) affecting 2022-2024 G05 X5s due to a fault in the Integrated Brake (IB) module. The rotor and shaft within the IB system may not have been welded properly, potentially separating during hard braking. This can result in loss of power brake assist, extended stopping distances, and loss of ABS and DSC functionality. The recall was expanded in October 2024 to cover additional model years. The remedy is a full IB module replacement at no cost to the owner. Some owners reported waiting several months for parts availability. When purchasing a 2022 or 2023 model, verify that this recall has been completed by contacting BMW with the VIN. Do not purchase a car with an outstanding IB recall, as this is a critical safety issue. The cost field shows €0 because BMW replaces the module free of charge, but it remains listed here because unresolved recall status significantly affects the car's suitability for purchase.

Early G05 models (2019-2020 production) shipped with early versions of the iDrive 7 software that had various stability issues. The most commonly reported problems are: a black screen on startup that requires a manual reboot (holding the volume knob for 20-30 seconds), Apple CarPlay and Bluetooth connectivity dropouts requiring re-pairing, and head-up display flickering or intermittent failure. Most of these issues are resolved through software updates, which BMW dealers can apply for €100-200 outside the warranty period. If the software update does not resolve the issue, the head unit hardware itself may need replacement, costing €600-800 for the part and labour. Post-2021 production cars with updated software revisions are significantly less prone to these issues. When test driving, verify that all screens boot correctly on cold start, test CarPlay or Android Auto connectivity, check the head-up display for any flickering, and cycle through the backup camera and surround view system. A car that has not received recent software updates may simply need a dealer visit rather than expensive hardware replacement.

The N63TU3 V8 uses two high-pressure fuel pumps, one per cylinder bank. Failures are less common on the TU3 than on earlier N63 versions, but they still occur, typically after 100,000 km. Symptoms include extended cranking time before the engine starts, rough idle, misfires under load, and in severe cases the engine entering limp mode with a check engine light. Early 2019-2020 production cars were also subject to a separate HPFP recall (19V-513) where the pump flange was not properly attached to the engine, posing a fuel leak and fire risk. The recall remedy involved replacing both high-pressure pumps and their mounting screws, free of charge. For non-recall related failures outside warranty, replacement of one pump costs approximately €600-1,200, or €1,200-2,500 if both pumps are replaced at the same time (recommended, as both have the same age and wear). Verify the HPFP recall completion via VIN on any 2019-2020 model. For all model years, listen for extended cranking times and note any hesitation or misfire during acceleration.
