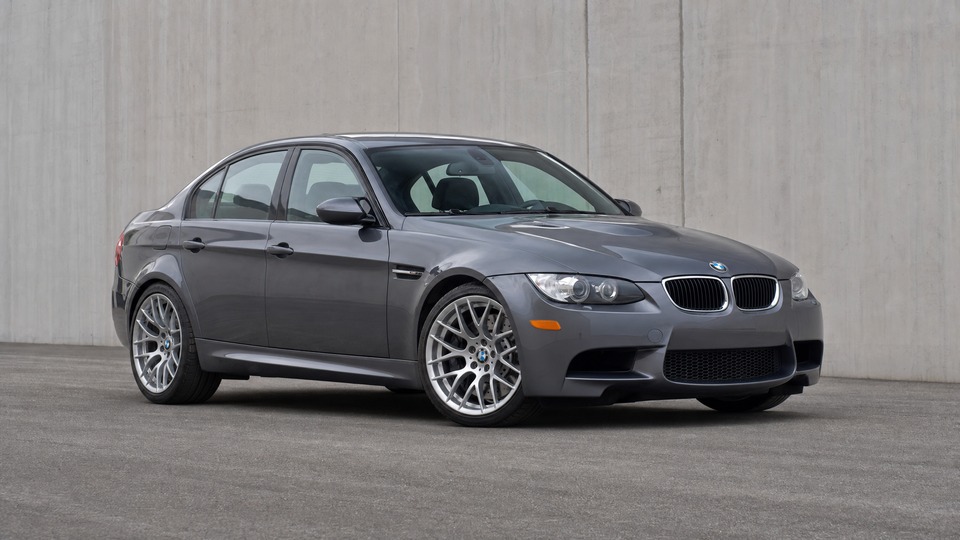

BMW M3 E90/E92 S65 V8

The S65's rod bearings are engineered with race-style tight clearances. Under real-world conditions, this mismatch between design intent and typical road use accelerates bearing wear, particularly when oil is not fully warmed before high-RPM driving, or when oil change intervals are stretched. Catastrophic failure (spun bearing, engine destruction) affects fewer than 1% of all S65 engines, but premature bearing surface wear is far more common. Specialist consensus is that preventive rod bearing replacement should be treated as a maintenance item between 80,000 and 120,000 km for street cars, and sooner for track-driven examples. Upgraded ACL or BE Bearing shells with wider tolerances are the standard replacement. At an independent BMW specialist in Europe, the job costs approximately 2,000-3,000 euros including parts and labor (oil pan drop, inspection, new bearings). If a bearing has already spun, engine rebuild costs start at 8,000-10,000 euros, and full engine replacement can reach 15,000+ euros. Early 2007-2009 cars are considered slightly higher risk. Oil analysis (Blackstone Labs or similar) can detect copper content rising before failure occurs. Always verify whether this service has been performed before purchase.

The S65 has two electronically controlled throttle actuators (one per bank of four cylinders), each containing small plastic step-down gears that wear and eventually strip. The factory plastic gears have an expected lifespan of approximately 100,000-120,000 km, after which failure becomes increasingly likely. When a gear strips, the affected bank loses throttle control and the car enters limp mode with EML and DSC lights illuminated. BMW does not sell the gears separately, only the complete actuator unit at approximately 800-1,000 euros each. Since there are two actuators, full OEM replacement costs 1,600-2,500 euros including labor. Specialist rebuild services (such as Beisan Systems, Hack Engineering, or similar European specialists) offer rebuilt units with upgraded metal or hardened gears for 400-600 euros per actuator. Both actuators should always be addressed simultaneously to avoid repeating the repair. This is one of the most common S65 failures and virtually guaranteed at higher mileages.

Like most BMW engines, the S65 develops oil leaks from several gasket locations as it ages. The valve cover gaskets are the most common first failure, typically starting to seep between 80,000 and 120,000 km. Oil leaking from the valve covers drips onto the exhaust manifolds, producing a burning smell. The oil filter housing gasket is another frequent source. The oil pan gasket requires more involved labor. A combined valve cover gasket and oil filter housing gasket replacement at an independent specialist costs approximately 500-1,000 euros. Adding the oil pan gasket (which may require subframe loosening for access) increases the total to 1,200-2,000 euros. Most S65 engines over 100,000 km will have at least one active oil seep. Regular inspection and timely repair prevents oil from reaching the serpentine belt or accumulating around the exhaust.

The S65 has four VANOS adjusters (two per camshaft pair) that control variable valve timing. These adjusters rely on precise internal clearances without soft seals, and over time the internal rotors can develop scoring, binding, or breakage. Symptoms include a characteristic rattling noise (often described as marbles in a tin can), rough idle, loss of power, and VANOS deviation fault codes. VANOS solenoid failure is the simpler issue and costs approximately 200-500 euros for replacement. Full VANOS adjuster failure is more serious: BMW does not sell the internal components separately, requiring complete unit replacement at approximately 800-1,000 euros per adjuster. With four adjusters, a full replacement can reach 3,000-4,000 euros. Reports of VANOS plastic spring cover failures have increased on cars approaching 120,000-130,000 km. Remanufactured VANOS units from specialists offer a more cost-effective alternative at approximately 500-700 euros per unit.

Approximately half of E9x M3s were sold with the 7-speed M-DCT dual-clutch gearbox. The DCT clutch packs wear with use, particularly on cars that have seen track time or frequent launch control use. Clutch replacement requires transmission removal and runs approximately 2,500-4,000 euros at a specialist. The DCT oil pan is plastic and is known to warp over time, causing oil leaks from the top, sides, and bottom of the transmission. A complete pan replacement with gasket costs approximately 500-800 euros. BMW designates the DCT fluid as a lifetime fill, but most specialists strongly recommend fluid changes every 50,000-60,000 km to extend the gearbox lifespan. Neglected fluid leads to accelerated clutch and mechatronic wear. Manual gearbox cars do not share these issues and are significantly simpler in this regard.

The S65's high-revving nature puts significant stress on the factory fluid-filled engine mounts. Over time, the rubber deteriorates and the fluid leaks out, allowing the engine to move excessively under load. Symptoms include increased vibration in the cabin, a harsh clunk when engaging gear, and visible engine rocking when blipping the throttle. Worn mounts can also allow the engine to shift enough to contact the radiator or damage the serpentine belt routing. OEM mounts cost approximately 150-200 euros each, with 2-3 hours of labor. Many owners upgrade to solid rubber or polyurethane mounts (100-250 euros per pair) which last significantly longer, with a slight increase in NVH. Most mounts need replacement by 100,000-130,000 km.

BMW recalled certain E9x M3s (produced December 2009 to October 2011) for the positive battery cable connector at the front fuse box, which can degrade from vibration and frictional corrosion. Symptoms include intermittent loss of electrical power, dashboard warning lights, or difficulty starting. The recall repairs this free of charge, but not all cars have been serviced. Even outside the recall window, this connection can degrade on older cars. Repair involves replacing and securing the connector, costing approximately 300-600 euros if done outside warranty.
