BMW X3 xDrive20i F25 Reliability

Common Problems

N20 timing chain guide failure

€1,800 - 4,0001 of 7

Plastic chain guides degrade and can cause catastrophic engine damage, mainly on pre-2015 cars · more· less

The N20 engine's timing chain guides were made from a plastic material prone to cracking and breaking apart, particularly on engines built between 2011 and early 2015. When the guides fail, the chain develops slack, which can cause it to skip teeth and result in piston-to-valve contact — a catastrophic failure requiring engine replacement. Symptoms include a rattling noise on cold start lasting several seconds and rough running. BMW acknowledged the issue through a Customer Care Program extending warranty to 7 years or 112,000 km on 2012-2015 models, but most cars are now outside this coverage. Post-2015 engines received redesigned guides with more durable material and are significantly less prone to failure. Typical repair at an independent specialist runs €1,800-2,500 for parts and 10-15 hours of labor. If engine damage has occurred, costs can reach €4,000+ for a replacement engine.

Oil filter housing gasket leak

€400 - 9002 of 7

Gasket hardens with age, causing oil to leak onto the serpentine belt and engine components · more· less

This is one of the most common issues on any BMW with the N20 engine. The oil filter housing gasket deteriorates over time, typically becoming noticeable between 60,000 and 100,000 km. The gasket is inexpensive (around €20-30) but labor is 3-5 hours because of accessibility. At a BMW dealer, expect €700-900; an independent shop typically charges €400-600. If left unrepaired, oil can drip onto the serpentine belt and other components, causing secondary damage. The valve cover gasket tends to fail around the same time, and many owners address both together for €800-1,400 combined.

Electric water pump / thermostat failure

€600 - 1,2003 of 7

Electric water pump fails typically between 80,000 and 130,000 km, risking engine overheating · more· less

The N20 uses an electric water pump integrated with the thermostat housing. These pumps are known to fail, usually between 80,000 and 130,000 km. BMW issued a class-action settlement covering electric coolant pump failures within 7 years and 135,000 km, but most F25s are now outside that window. Symptoms include coolant warning, engine overheating, or poor cabin heating. The integrated design means the water pump and thermostat are typically replaced together. Parts cost €300-500, with labor of 3-5 hours adding €300-700 depending on the workshop.

Turbo wastegate rattle

€400 - 2,0004 of 7

Worn bushings in the wastegate flap cause metallic rattle at idle and during deceleration · more· less

A metallic rattling or buzzing noise from the turbocharger area, particularly at idle or during throttle lift-off, is a well-known N20 issue. The cause is worn bushings and excessive play in the wastegate flap assembly. While annoying, the rattle itself does not immediately affect performance. Repair options range from a bushing and flapper shaft kit (€400-600 at a specialist, requiring partial turbo disassembly) to full turbocharger replacement if internal damage has progressed (€1,500-2,000 including labor). The issue tends to develop gradually after 80,000 km.

Valve cover gasket leak

€500 - 1,0005 of 7

Gasket degrades with heat cycling, causing oil seepage around the valve cover · more· less

The valve cover gasket on the N20 degrades over time due to repeated heat cycling. Oil seepage typically becomes visible between 80,000 and 120,000 km. On the F25, the repair is more involved than on a 3 Series sedan because of the engine bay layout. The valve cover gasket itself costs €50-100, but labor runs 3-5 hours. Total cost at an independent shop is typically €500-700; at a BMW dealer, expect €800-1,000. Many owners combine this repair with the oil filter housing gasket to save on labor.

Transfer case actuator / xDrive failure

€800 - 3,5006 of 7

Transfer case actuator motor can fail, causing xDrive warning and reduced traction · more· less

The xDrive transfer case uses an electric actuator motor to distribute torque between axles. This actuator can fail, triggering a drivetrain malfunction warning. Dealers often quote full transfer case replacement (€2,500-3,500 including labor), but in many cases only the actuator motor needs replacing (€800-1,200). Transfer case fluid should be changed every 80,000-100,000 km to help prevent internal wear. Neglecting this service increases the risk of more expensive internal failures. The issue is less common than engine-related problems but can be costly if misdiagnosed.

VANOS solenoid / oil supply issues

€300 - 8007 of 7

Clogged VANOS solenoids cause rough idle, power loss, and fault codes · more· less

The VANOS (variable valve timing) solenoids on the N20 can become clogged with oil varnish and debris, particularly if oil change intervals were extended. Symptoms include rough idle, loss of low-end torque, cold-start rattle, and check engine light with camshaft timing fault codes. VANOS issues can overlap with timing chain symptoms, so proper diagnosis is important. Cleaning or replacing the solenoids costs €300-500 at an independent shop. If the issue stems from degraded o-rings within the solenoids, the repair is similar. BMW recommends replacing VANOS solenoid o-rings every 80,000 km as preventive maintenance.

Timing chain is the headline risk, but oil leaks are the most frequent issue

The N20 engine in the F25 xDrive20i is reasonably capable but has well-documented weak points. The timing chain guide issue (primarily affecting 2011-2014 cars) is the most serious concern — if it fails, engine damage is likely. Post-2015 LCI models received improved chain guides and are considerably less prone to this failure. Oil leaks from the filter housing and valve cover gaskets are very common by 100,000 km but are manageable repairs. The ZF 8HP transmission is generally reliable with proper fluid changes. The xDrive system adds an extra maintenance item (transfer case fluid) and a small risk of actuator failure. Overall, a well-maintained post-LCI xDrive20i can be a dependable ownership experience, while pre-2015 cars warrant careful inspection of the timing chain before purchase.

Pre-Purchase Inspection Checklist

General checks

Service history
Complete BMW dealer or specialist records essential. Verify oil changes at maximum 15,000 km intervals — the N20 is sensitive to oil quality.
Tires
Check tread depth, age (date codes), and uneven wear patterns. Uneven wear may indicate suspension or alignment issues.
Cold start
Must start engine completely cold. Listen carefully for any rattling in the first 10-30 seconds.
Test drive
Minimum 30 minutes including highway speeds. Monitor for drivetrain malfunction warnings and transmission behavior.

Specific for this vehicle

Listen for timing chain rattle on cold start
Start the engine cold and listen for metallic rattling in the first 5-30 seconds. A rattle lasting more than a few seconds indicates chain tensioner wear. This is the single most critical check on pre-2015 cars.
Inspect for oil leaks underneath
Check around the oil filter housing (front of engine) and valve cover for oil residue. Both are common leak points on the N20. Fresh oil spray on the underside of the engine cover is a giveaway.
Check coolant level and condition
Low coolant or discolored fluid indicates water pump, thermostat, or head gasket issues. Verify the expansion tank is not cracked — these become brittle with age.

+ 4 more checksShow less

Listen for turbo wastegate rattle at idle
With the engine warm and idling, listen for a metallic buzzing or rattling from the turbo area. Also listen during deceleration. Indicates worn wastegate bushings.
Test xDrive for warnings during driving
Drive at varied speeds and on turns. Watch for any 'Drivetrain Malfunction' warnings. Check transfer case and differential service history.
Verify timing chain recall / warranty work status
For 2012-2015 models, check with BMW whether the timing chain Customer Care Program work was performed. Request VIN-based service history from BMW.
Check oil level between dipstick marks
The N20 is known for oil consumption. Check the oil level — if it is significantly below the full mark and the last oil change was recent, the engine may have excessive consumption.

Recalls and Technical Service Bulletins

Takata airbag inflator (2010-2017 F25 models) Critical - verify completed

ISOFIX child seat bracket fracture risk (2010-2016 F25/F26) Verify completed

N20 timing chain guide extended warranty program (2012-2015 with N20) Verify completed

Contact BMW with the VIN to verify all recalls and Customer Care Programs have been completed. The Takata airbag recall is safety-critical and the timing chain program is important for long-term engine health.

Warranty Status

Factory warranty (2 years) Expired on all F25 X3 models

N20 timing chain extended coverage (7 years / 112,000 km) Expired on most cars — verify with BMW

Rust perforation warranty (12 years) May still apply to 2014+ models

All F25 X3 models are outside their original 2-year factory warranty. The N20 timing chain Customer Care Program (7 years / 112,000 km) has also expired on most cars. BMW's 12-year rust perforation warranty may still cover 2014 and newer models. Third-party extended warranties are available through BMW dealers and independent providers.

This report is for informational purposes only and does not constitute professional advice. Estimates may be inaccurate. Always have a qualified specialist inspect the vehicle before purchase. We accept no liability for decisions made based on this information.

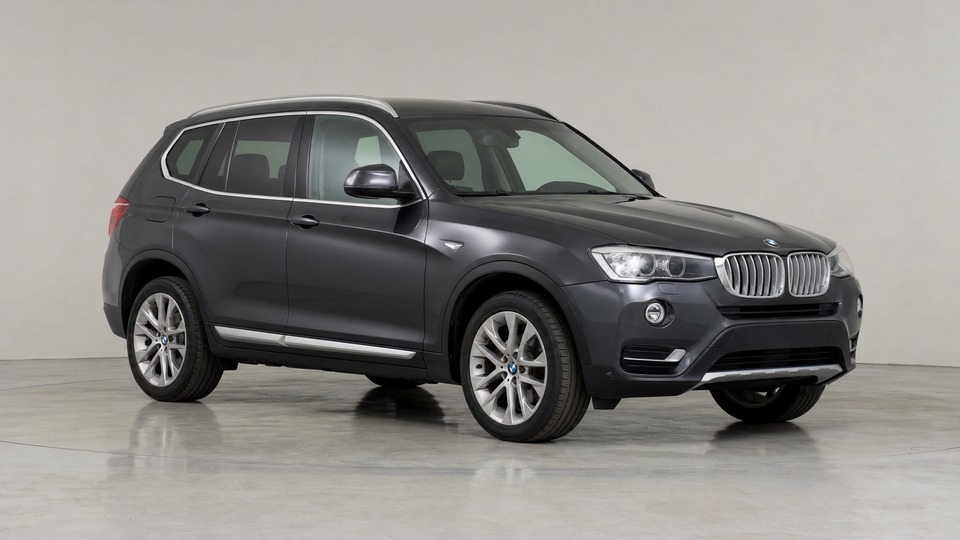

BMW X3 xDrive20i F25
