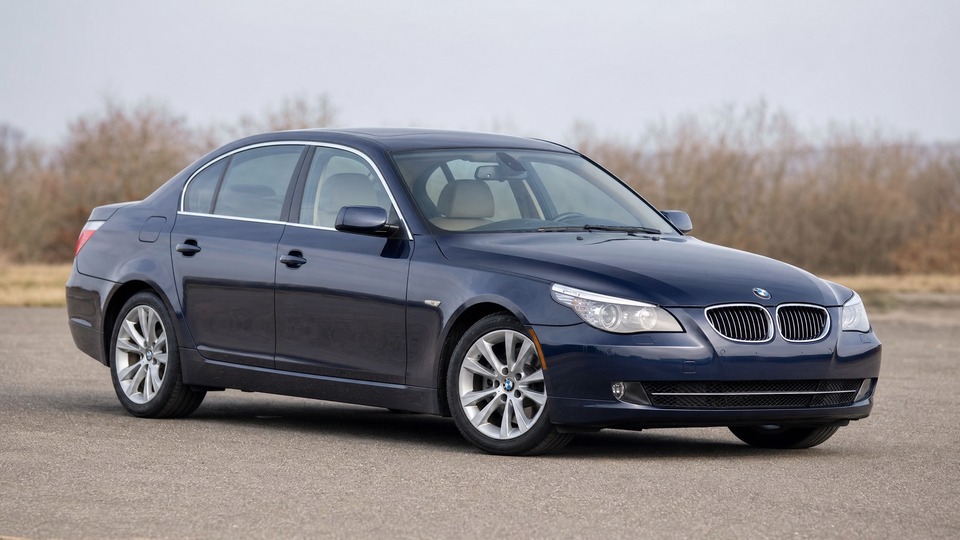

The E60 525i is BMW's mid-range executive saloon from the Bangle era, available with three naturally aspirated inline-six engines across its 2003-2010 production run. The M54 (2003-2005) and N52 (2005-2007) are 2.5-litre units, while the facelift N53 (2007-2010, European markets) is a 2,996 cc three-litre despite the unchanged 525i badge. All three are considered reliable by BMW standards, with many examples exceeding 250,000 km. Main ownership concerns center on the E60 platform itself: aging iDrive electronics, cooling system components on the N52, and direct injection fuel system issues on the N53.· more· less
Plastic-bodied electric water pump fails without warning, typically between 80,000-150,000 km · more· less
The N52 engine (2005-2007 models) uses an electric water pump that is a well-documented failure point. The plastic housing cracks and corrodes over time, and failure is sudden with no advance warning — the car overheats and needs towing. Most failures occur between 80,000 and 150,000 km, though some last significantly longer. Replacement includes the pump and often the thermostat (they commonly fail together). Parts cost €250-500 depending on OEM or aftermarket (Pierburg), and labor adds another €200-400. The M54 engine (2003-2005) uses a conventional belt-driven pump which is less failure-prone but should be replaced preventively around 100,000 km as part of a cooling system overhaul.
Valve cover gasket and oil leaks
up to €9002 of 8
Gaskets harden with heat cycles causing oil leaks from valve cover, oil filter housing, and oil pan · more· less
Oil leaks are among the most common issues on all three engine variants. The valve cover gasket hardens and cracks. BMW's technical documentation specifies a cast magnesium cylinder head cover for the N52 in this car; the plastic cover often described for it belongs to the later N52KP and N51 engines. The oil filter housing gasket is another frequent leak point, typically failing between 60,000 and 120,000 km. If the oil filter housing gasket leak is left unattended on an N52, oil can reach the serpentine belt area and cause it to be consumed through the front crank seal — a much more expensive repair. Individual gasket replacements cost €200-400 each including labor at an independent shop. Most E60 525i models at this age will need at least one gasket replacement.
CCV (crankcase ventilation) valve failure
up to €6003 of 8
Oil separator valve clogs or fails, causing rough idle, increased oil consumption, and whistling noise · more· less
The CCV system (also called PCV) recirculates oil vapors back into the intake. When the valve or its diaphragm fails, it creates a vacuum leak that affects idle quality and can increase oil consumption significantly. On the N52, the CCV is a separate unit mounted under the intake manifold, making access straightforward. On the M54, the system is simpler but still ages. Typical failure occurs between 100,000 and 160,000 km. Parts cost around €80-150 (aftermarket kit with hoses), and labor is approximately €150-300 depending on engine variant.
VANOS system issues
up to €1,5004 of 8
VANOS solenoids clog from oil contamination, and N52 housing bolts may loosen over time · more· less
The VANOS variable valve timing system can develop problems on all three engine variants. The most common issue is solenoid clogging from oil varnish buildup, causing cold-start rattle, rough idle, and reduced power. Cleaning or replacing the solenoids costs €150-400. A 2023 US campaign covers loosening VANOS housing bolts on the N52, where a bolt can break and stall the engine. It names later model years than this E60, so it is not work to verify here, but the failure mode is worth listening for on an N52 car. On the M54, VANOS seals degrade with age and can be rebuilt for €200-400. Full VANOS unit rebuilds on any variant can reach €800-1,500.
Mechatronic valve body sleeves wear causing harsh shifts and delayed engagement · more· less
The E60 525i with automatic transmission uses the ZF 6HP19, which is generally reliable when serviced regularly but has a known weak point in the mechatronic unit. The valve body sleeves wear over time, causing fluid leaks within the unit that lead to harsh shifting, hesitation between gears, and harsh downshifts when braking. Problems typically appear after 150,000 km, especially if the transmission fluid was never changed (BMW originally claimed it was a sealed-for-life unit, which specialists universally dispute). Preventive fluid and filter changes every 60,000-80,000 km significantly reduce the risk. Mechatronic sleeve repair costs €600-1,000 at a specialist, while full mechatronic replacement runs €1,500-3,000.
iDrive CCC unit failure
up to €6006 of 8
First-generation iDrive screen goes black or system reboots repeatedly · more· less
The E60 was among the first BMWs with the iDrive system, using the CCC (Car Communication Computer) module. These units commonly fail after 8-15 years due to solder joint cracks or capacitor degradation on the circuit board. Symptoms include a black screen, constant rebooting, frozen display, or complete navigation/audio loss. European repair specialists offer board-level repairs for around €200 with a 1-2 year warranty. Replacement with a used coded unit costs €300-500. A full dealer replacement can exceed €1,500 but is rarely necessary given the availability of specialist repairs.
Direct injection fuel system components fail prematurely on the N53 engine (2007-2010 European models) · more· less
The N53 engine (used in European-market 2007-2010 525i models) introduced stratified direct injection, which brought several fuel system weaknesses. The high-pressure fuel pump (HPFP) was subject to a BMW recall due to widespread failures. Even after the redesign around 2012-2013, injector failures remain common, causing rough idling, misfires, and starting problems. Carbon buildup on intake valves (a consequence of direct injection) reduces performance after 60,000-80,000 km. HPFP replacement costs around €600-1,000, while a set of injectors can run €1,000-2,000 including labor. If buying an N53-equipped car, verify pump recall completion and budget for potential injector work.
Front thrust arm bushing wear
up to €7008 of 8
Rubber bushings deteriorate causing steering wander and uneven tire wear · more· less
The front thrust arm (tension strut) bushings on the E60 are a known wear item that commonly needs replacement between 80,000 and 130,000 km. Worn bushings cause imprecise steering feel, wandering under braking, and accelerated inner-edge tire wear. BMW notes that the bushings can only be replaced once before the complete arm must be changed, as the aluminum housing can distort during bushing extraction. Parts cost €80-200 per side (bushing or complete arm), and labor is typically 1-2 hours per side plus alignment. Expect to pay €300-700 for both sides including alignment.
Reliable engines on an aging platform
The M54, N52, and N53 inline-sixes are fundamentally sound engines with many examples reaching 250,000+ km. The primary ownership risks come from the E60 platform itself: cooling system components (especially the N52 electric water pump), aging first-generation iDrive electronics, and oil leaks from multiple gasket points. The N53 variant adds direct injection fuel system concerns. Manual transmission cars avoid the ZF mechatronics risk entirely. With a complete service history and proactive cooling system maintenance, the 525i can be a reliable and enjoyable ownership experience.
Service history
Complete BMW dealer or specialist records essential. Verify oil changes were done at least every 15,000 km (not the extended 25,000 km BMW interval).
Tires
Check tread depth, age (date codes), and inner-edge wear which indicates worn thrust arm bushings.
Cold start
Start engine completely cold. Listen for any rattle or unusual sounds in the first 30 seconds.
Test drive
Minimum 30 minutes including motorway speeds to fully warm up the engine and transmission.
Specific for this vehicle
Identify which engine variant is fitted
Check the engine code on the data plate or via diagnostic scan. M54 (2003-2005), N52 (2005-2007), or N53 (2007-2010 Europe). Each has different weak points.
Inspect for oil leaks around valve cover and oil filter housing
Look for oil residue on the engine block sides, especially around the valve cover edges and oil filter housing. Any visible seeping means gaskets need replacement.
Check coolant level and condition
Low coolant or brown/milky appearance indicates serious problems. On N52 models, ask when the electric water pump was last replaced.
+ 4 more checksShow less
Test iDrive system thoroughly
Navigate through all menus, check screen brightness, test radio and navigation. A flickering or rebooting screen indicates CCC module failure.
Check steering feel under braking
Apply brakes firmly from 80 km/h. If the car pulls or the steering wanders, thrust arm bushings are likely worn.
Test all electrical systems
Check every window, heated seats, climate control, and central locking. The E60 is known for electronic module failures.
Listen for VANOS bolt noise (N52 models)
Loosening VANOS housing bolts are a known N52 failure. The campaign that covers them is a US action for later cars, so ask about noise and any bolt work rather than expecting a recall record.
Recalls and Technical Service Bulletins
Battery cable cover fire risk (all E60 models, 2003-2010)Verify completed
PCV valve heater short circuit / fire risk (2006 models)Verify if applicable
Front seat backrest heater can overheat - UK safety recall R/2005/001 for affected 2004 5 Series carsVerify completed
High-pressure fuel pump failure (N53 engines, 2007-2010)Verify if applicable
Contact BMW with the VIN to verify which campaigns apply to the individual car and whether they were completed. The battery cable cover and the seat backrest heater actions are the safety items with the broadest reach. Several entries that circulate for the E60 do not belong to it: the VANOS housing bolt action is a US campaign for model year 2010-2012 cars produced from September 2009, and the occupant detection mat work was limited to certain US vehicles and seat types. BMW's UK and Ireland airbag inflator list excludes the E60, and BMW France identifies E60 and E61 airbags as Autoliv units outside that programme.
Warranty Status
Factory warranty (2 years)Expired on all E60 525i models
Extended warranty availabilityThird-party only (BMW no longer offers extended coverage for this age)
Rust perforation warranty (12 years)Expired on all models
All BMW 525i E60 models are well outside their original 2-year factory warranty. Third-party extended warranties are available but may exclude known weak points like the electric water pump and iDrive system. Inspect carefully before purchase.
