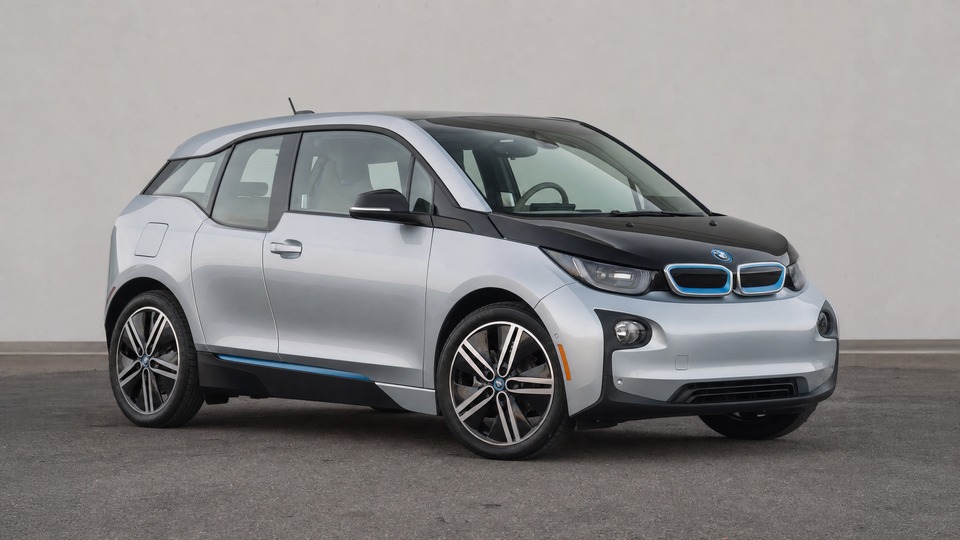

BMW i3 94Ah I01

The i3's AC compressor cools both the cabin and the high-voltage battery through a shared refrigerant circuit. When the compressor fails catastrophically, metal shavings can contaminate the battery cooling passages, expansion valves, and condenser. BMW did not include an industry-standard particulate trap in the system. If debris reaches the battery cooling tray, the repair can exceed the car's value. BMW updated the compressor design six times between 2013 and 2019. The 94Ah models (2016-2018) use earlier revisions than the 120Ah and may be somewhat more susceptible than later cars. If only the compressor fails without contamination, replacement costs around €1,500-3,000. A full system flush with battery cooling circuit repair runs €5,000-10,000 at a dealer. Listen for unusual grinding or squealing from the AC system. Some owners recommend having a specialist listen to the compressor annually.

The 12V auxiliary battery is the most commonly reported i3 issue across all model years. It powers all auxiliary systems (lights, infotainment, door locks) and typically fails every 3-4 years. Some owners report even shorter lifespans of 12-18 months. Symptoms include intermittent infotainment glitches, warning lights, drivetrain malfunction messages, door lock malfunctions, and eventually a complete no-start condition even though the main high-voltage battery is fully charged. A weak 12V battery can mimic far more serious faults like EME failure, triggering expensive diagnostic chases. Replacement costs €150-300 depending on whether done at an independent shop or BMW dealer. Using a trickle charger (CTEK recommended) when the car sits for more than a few days extends battery life significantly.

The i3's strong regenerative braking means the conventional friction brakes are barely used in daily driving. This causes the brake discs to develop heavy surface rust and eventually deep corrosion, particularly on the rear axle. By 60,000-80,000 km, many owners find rear discs corroded through despite brake pads still having plenty of material. The discs eventually need replacing not because they are worn, but because they are corroded beyond safe use. Replacement costs €400-800 for a full set including pads. To slow corrosion, periodically apply the friction brakes firmly during driving, especially in wet conditions. Some owners switch to coated or composite discs for longer life.

A design flaw causes the thin heating element wire to break where it passes over a metal rod spanning across the seat base. The break results in the seat heater either not working at all or switching off within seconds of activation. This is particularly frustrating in an EV where seat heaters are preferred over cabin heating to conserve range. BMW dealer repair costs €400-500 for a new heating mat plus labor to disassemble the seat. Independent specialists charge €200-350. Some owners have successfully repaired the broken wire themselves for under €20, though this requires removing the seat cover.

The electrically operated charge port door can fail to open reliably, particularly in cold or wet weather. The locking solenoid is poorly designed for moisture exposure and can seize. Symptoms include grinding noises when the flap attempts to open, weak or incomplete opening, or complete failure to open. A manual release pull cord is accessible from behind the rear passenger door trim for emergency access. The actuator motor itself costs €100-200 and replacement labor is straightforward. Total repair costs €200-450 at a BMW dealer. Spraying silicone lubricant on the mechanism periodically can help prevent failures.

The i3 BEV (non-heat-pump equipped models) uses a high-voltage resistive heater element located behind the front trunk. When this fails, the cabin receives no warm air. The heater element itself costs approximately €500. However, if the failure causes water ingress into the HV cable connection, it can trigger additional faults in the EKK (coolant pump) and associated HV components, escalating repair costs. BMW dealers sometimes insist on replacing the entire HV heater circuit including cables and the EKK, pushing quotes to €2,000-2,500 or more. Independent EV specialists can often replace just the heater element for €500-800. Cars equipped with the optional heat pump are less affected.

The rubber boots protecting the top strut mount bearings can deteriorate over time, allowing water and road debris to reach the bearing. Once corroded, the bearing seizes and causes a distinctive twanging or creaking noise when turning the steering wheel, and clunking over bumps. This is commonly reported on i3s over 5-6 years old. Replacement of both front strut mount assemblies costs €300-700 including labor. The dust covers should be inspected and replaced if torn to prevent recurrence.

The EME (Electric Motor Electronics) module is the i3's inverter and DC-DC converter. Spontaneous failures are rare but catastrophic, causing complete loss of propulsion. Two NHTSA recalls (19V-310 and 19V-599) addressed EME defects on 2018-2019 models, though the 94Ah production window (2016-2018) largely predates the worst of these issues. When replacement is needed out of warranty, a new EME module from BMW costs €5,500-7,000 including labor. Refurbished units from specialists in the UK and Bulgaria cost €2,500-4,000. A failing 12V battery can produce identical drivetrain malfunction warnings, so always rule out the 12V battery before accepting an EME diagnosis.
