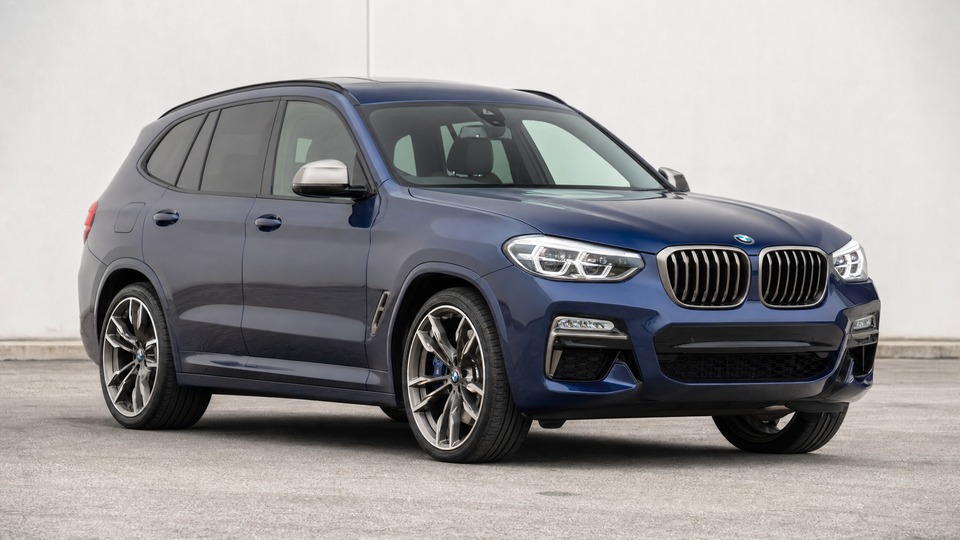

BMW X3 M40d G01

The B57 requires sustained highway driving for DPF regeneration. The exhaust gas temperature must exceed 240 degrees and the coolant must be above 75 degrees for at least 20-30 minutes of driving above 60 km/h. Short urban trips prevent regeneration from completing, causing soot accumulation. Symptoms include a DPF warning light, reduced power, and increased fuel consumption. A forced regeneration at a workshop costs 200-400 euros. If the filter is severely blocked, a professional chemical cleaning runs 400-800 euros. Full DPF replacement on the B57 costs 1,500-2,500 euros including labor due to the integrated SCR catalyst design. Prevention is straightforward: ensure at least one sustained motorway drive of 30+ minutes per week. Cars with documented short-trip usage history should be avoided.

The B57 uses two NOx sensors (upstream and downstream of the SCR catalyst) to monitor and control the AdBlue injection system. These sensors operate in harsh conditions with extreme heat, vibration, and corrosive gases. Failure triggers fault codes like P2202 or P229F and can result in BMW's progressive warning system: the car displays an AdBlue warning, then a countdown of remaining starts before the engine will refuse to start. A single NOx sensor replacement costs 400-600 euros including coding at an independent workshop. If the SCR catalyst itself has degraded (typically after 150,000+ km), the combined DPF/SCR unit may need replacement at 1,200-1,800 euros. The AdBlue injection nozzle can also crystallize if poor-quality AdBlue is used, adding 200-400 euros. Always use ISO 22241 certified AdBlue and avoid leaving the tank empty for extended periods.

The xDrive transfer case (ATC13-X) uses a multi-plate clutch to distribute torque between front and rear axles. This clutch can wear prematurely, causing the vehicle to jerk or shudder during slow turns, parking, or light acceleration. BMW acknowledged the problem in service bulletin SIB 27-02-20. Contributing factors include mismatched tire rolling diameters (different tread depths or brands across axles) and neglected transfer case fluid changes. The M40d's higher torque output (680 Nm) puts additional stress on the transfer case compared to lower-powered X3 variants. A fluid change costs 250-400 euros and often resolves mild symptoms. If the internal clutch pack is worn, the transfer case requires replacement at 2,000-3,000 euros. Specialists advise changing DTF-1 specification fluid every 60,000-80,000 km, though BMW does not specify a fixed service interval. Running matched tires on all four corners is essential.

The B57's twin-turbo system uses electronically controlled wastegate actuators that can develop rattling or sticking over time, particularly on pre-LCI cars produced between 2018 and 2021. Symptoms include a metallic rattling sound under load, reduced boost pressure, and in some cases limp mode with turbo-related fault codes. BMW issued a service information bulletin regarding wastegate valve actuator issues. If caught early, the actuator itself can sometimes be replaced without removing the turbocharger, costing 500-800 euros at a specialist. However, if the turbo internals are damaged due to prolonged running with a faulty actuator, full turbocharger replacement on the B57 runs 2,000-3,000 euros due to the twin-turbo complexity. The LCI models with mild hybrid appear to have improved actuator durability.

The B57 shares the modular design approach of other BMW engines, using a plastic oil filter housing with an integrated coolant-to-oil heat exchanger. The gasket between the housing and the engine block degrades from continuous thermal cycling, typically between 80,000 and 130,000 km. Symptoms include oil residue visible around the filter housing, a gradual drop in oil level between services, and in severe cases coolant contamination visible as milky residue on the oil filler cap. An independent workshop can replace the gasket for 400-600 euros. If the housing itself has cracked, full replacement costs 800-1,200 euros. Catching this early through regular underbonnet inspections prevents more expensive consequences.

Like other modern BMW engines, the B57 uses an electrically driven water pump and a thermostat integrated into a plastic housing. These components can develop leaks or fail electronically, usually between 100,000 and 150,000 km. Symptoms include coolant warning lights, gradual coolant loss, engine running hotter than normal, or poor cabin heating. The water pump replacement costs 600-900 euros at an independent shop. If the thermostat housing also needs replacement, add another 200-400 euros. It is generally recommended to replace both components together due to the shared labor involved. Running the engine with a failed water pump risks head gasket damage from overheating.

The G01 X3 M40d weighs approximately 1,900 kg and produces 680 Nm of torque, placing significant stress on the front suspension. The lower control arm bushings are the most common wear point, typically becoming noisy between 80,000 and 120,000 km. Symptoms include clunking over bumps, imprecise steering feel, and uneven front tire wear. Replacement of both front lower control arms with bushings costs 500-800 euros at an independent shop using quality aftermarket parts, or 800-1,200 euros with OEM parts at a dealer. Some specialists offer upgraded bushings with firmer rubber compounds that extend service life.
