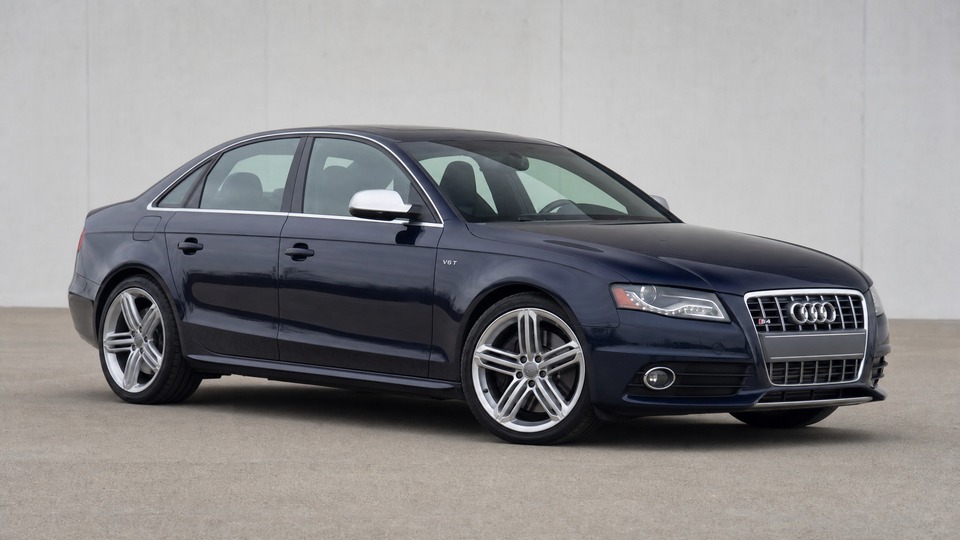

Audi S4 3.0 TFSI B8

The DL501 (0B5) S tronic gearbox uses a mechatronic unit that controls all gear changes hydraulically. The electronics board and solenoids can fail due to heat exposure and mechanical wear. Symptoms include EPC and PRNDS warning lights, harsh gear changes, erratic gear selection, and eventually limp mode. Pre-2013 cars are significantly more affected, with the majority of reported failures on 2009-2011 models. Audi upgraded the unit for B8.5 models with a larger heat sink. A mechatronic repair kit costs approximately €600-800 for parts, making specialist repair possible for around €1,500. Full replacement at an Audi dealer can reach €3,500-4,000. Regular gearbox oil and filter changes every 60,000 km significantly reduce the risk, yet many owners neglect this because Audi once marketed the gearbox as having lifetime fill.

The cooling system is the most common weak point on the 3.0 TFSI, particularly on pre-2013 cars. The thermostat housing uses plastic components that become brittle under repeated thermal cycling, and the tabs holding the thermostat spring can break, causing it to stick closed and potentially overheat the engine. The water pump bearing can also fail, with a weep hole on the pump body serving as an early warning indicator. From 2013 onward, Audi introduced redesigned components with better materials. Repair is labor-intensive because the supercharger and intake must be removed. Parts cost approximately €250-350, but labor adds €600-1,500 depending on the shop. Always check for coolant residue around the thermostat housing during a pre-purchase inspection.

The PCV valve on the 3.0 TFSI is located beneath the supercharger with coolant flowing through it, making it a difficult repair. The diaphragm inside the assembly is prone to tearing, and the check valve can stick. Symptoms include rough idle, misfires, loss of supercharger boost, the engine refusing to rev above 4,000 rpm, phantom coolant loss, and increased oil consumption as excess crankcase pressure forces oil past seals. Typically occurs between 100,000-140,000 km. The part costs approximately €200-250, but the repair requires 6-10 hours of labor because the supercharger must be removed. Total cost at a specialist runs €800-1,200; at an Audi dealer, expect €1,400-1,600. B8.5 models received an improved PCV assembly, but the design remains fundamentally the same.

The 3.0 TFSI uses timing chains with hydraulic tensioners. The upper tensioners can lose oil pressure after the engine sits overnight, causing a distinctive rattle for 1-3 seconds on cold start. Audi issued a TSB in 2015 recommending replacement of both upper chain tensioners with an optimized design. While the rattle itself does not immediately damage the engine, prolonged neglect can lead to chain stretch and eventually chain skip, risking valve-to-piston contact. Affected models are primarily from 2010 to 2014. The updated tensioners can be installed without removing the engine. Cost at a specialist is approximately €1,200-2,000; dealer quotes of €3,000-3,500 have been reported. Using thicker oil (5W-40 instead of 5W-30) has been reported by some owners to reduce the severity of the cold start rattle.

The B8 S4 uses electronically controlled hydraulic engine mounts that stiffen or soften to reduce vibration. The rubber housing degrades and the magnetorheological fluid leaks out, identifiable as a distinctive dark goo around the mount. Symptoms include rough idle, vibration through the steering wheel and floor, and clunking when shifting between drive and reverse. Typically occurs between 80,000-120,000 km. OEM mounts cost approximately €200-300 each; a pair plus labor totals €400-900 at an independent specialist. Some owners opt for uprated solid polyurethane mounts which are cheaper but transmit more vibration to the cabin.

The crankshaft pulley has a rubber damper layer that can degrade over time, causing the outer ring to wobble or separate entirely. When this happens, the serpentine belt is damaged and accessories like the alternator, power steering, and supercharger lose drive. The OEM replacement part costs approximately €150-200, but if the separation causes collateral damage, total repair can reach €800-1,200. Most cases are reported around 80,000 km or more. OEM replacements have been reported to fail again; aftermarket one-piece pulleys from companies like JHM or Fluidampr are considered the permanent fix. The issue is documented on multiple forum threads, though it affects a relatively small percentage of cars.

Early Gen1 3.0T engines (primarily 2009-2011) may have an older-style oil pressure switch that can fail, causing a fault code for the high oil pressure circuit. When triggered, the engine management prevents operation above 4,000 rpm as a safety measure. An updated purple-colored switch (F22) is available. The switch is buried under wiring harnesses and secondary air components on the oil filter housing, but the part itself costs under €50. Total repair cost including labor runs €150-400 at a specialist. This primarily affects early B8 cars and is a straightforward fix once diagnosed.
