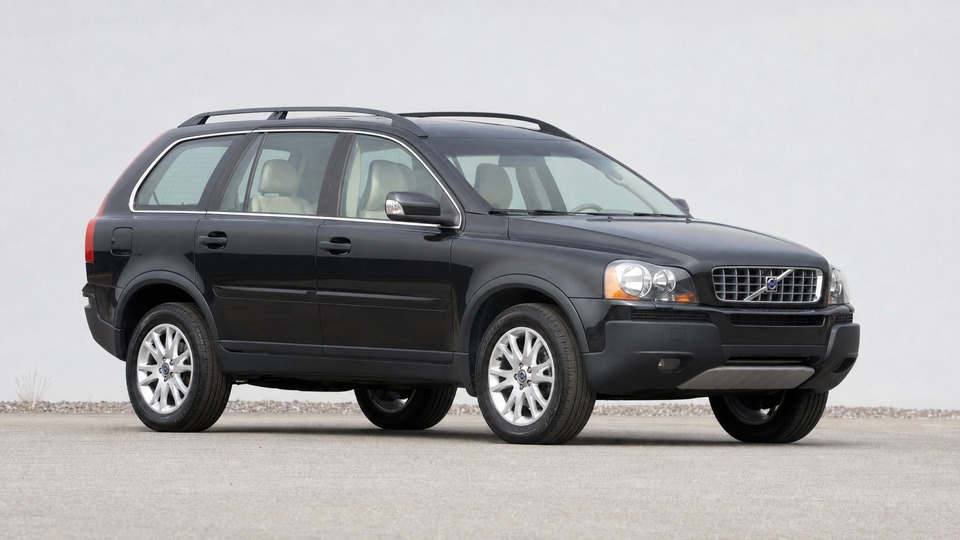

Volvo XC90 D5 Mk1

The XC90 D5 uses two different automatic gearboxes depending on year: the Aisin AW55-50SN (2003-2006) and TF-80SC (2007-2014). Both are prone to valve body wear, causing harsh shifting, flaring between gears, and delayed engagement. Volvo originally claimed these were 'sealed for life' units, but this policy led to premature failures. The AW55-50SN in particular suffers from first-gear clutch wear caused by a fuel-saving neutral feature at rest. A software update disabling this feature was issued, but many cars never received it. Valve body replacement costs approximately €1,200-2,000. If internal clutch pack damage has occurred, a full rebuild or replacement runs €2,500-3,500. Regular transmission fluid changes every 60,000 km significantly extend service life.

The angle gear (bevel gear) transfers power from the gearbox to the propshaft for AWD. The case halves are known to develop leaks at the sealing surface, and this is documented in Volvo technical bulletins. A reseal is relatively straightforward at €800-1,200, but if the leak is ignored and the unit runs dry, internal gear damage occurs requiring complete replacement at €1,500-2,500. The angle gear sleeve (coupling to the gearbox output shaft) has a typical service life of 130,000-160,000 km. Regularly checking for oil leaks underneath the car is the best prevention.

The D5 diesel engine recirculates exhaust gases through the EGR valve, which progressively clogs with carbon deposits. This is especially problematic on cars used predominantly for short trips. Symptoms include rough idle, loss of power, increased emissions, and engine management warning lights. Replacement of the EGR valve at a Volvo dealer costs approximately €800-1,000. Independent specialists often clean and refit for €400-600. The intake manifold swirl flaps also clog and the linkage mechanism can break, adding another €300-500 for repair. Cars driven regularly at highway speeds suffer far less from this issue.

The diesel particulate filter requires sustained highway driving (15-20 minutes at speed) for passive regeneration to burn off accumulated soot. The 185hp D5244T4 engine is particularly susceptible when used primarily in urban conditions. Symptoms include power loss, DPF warning light, and eventually limp mode. Chemical cleaning costs €100-200 per session but damages filter elements over time. A new genuine DPF costs €1,200-1,800 fitted. Pattern parts are available from €600-800. Cars with documented long-distance driving history are much less likely to have this issue.

The variable-geometry turbocharger on the D5 can fail from bearing wear (often caused by oil starvation during hot shutdown) or seized vanes from carbon buildup. Symptoms include loss of power, black or blue smoke, and whistling noises. Turbo replacement at a Volvo dealer costs €2,000-2,800 including labor. Reconditioned units are available from €1,500. Allowing the engine to idle for 30-60 seconds before shutdown and using quality oil significantly extend turbo life. Most failures occur beyond 150,000 km with irregular maintenance.

The Central Electronic Module controls most non-engine electrical systems (lights, locks, windows, wipers, instrument cluster). When sunroof or roof rail drainage channels become blocked with debris, water enters the cabin and reaches the CEM located under the dashboard on the driver's side. Symptoms include random warning lights, non-functioning windows or locks, battery drain, and no-start conditions. A replacement CEM costs €500-800 for the module plus programming, but water damage can also affect the wiring loom adding further cost. Prevention is straightforward: clean the sunroof drains annually by pouring water through the channels and verifying it exits freely behind the front wheels.

The hydraulic power steering system can develop leaks from the rack pinion seal and from degraded hoses. Symptoms include heavy steering at low speeds, fluid spots underneath, and groaning from the pump as fluid level drops. A steering rack replacement including hoses runs €1,200-2,200 depending on whether a new or remanufactured unit is fitted. The 2006 recall (affecting approximately 18,000 cars) addressed potential steering failure under extreme use, but age-related seal degradation is separate and affects cars across all production years.
