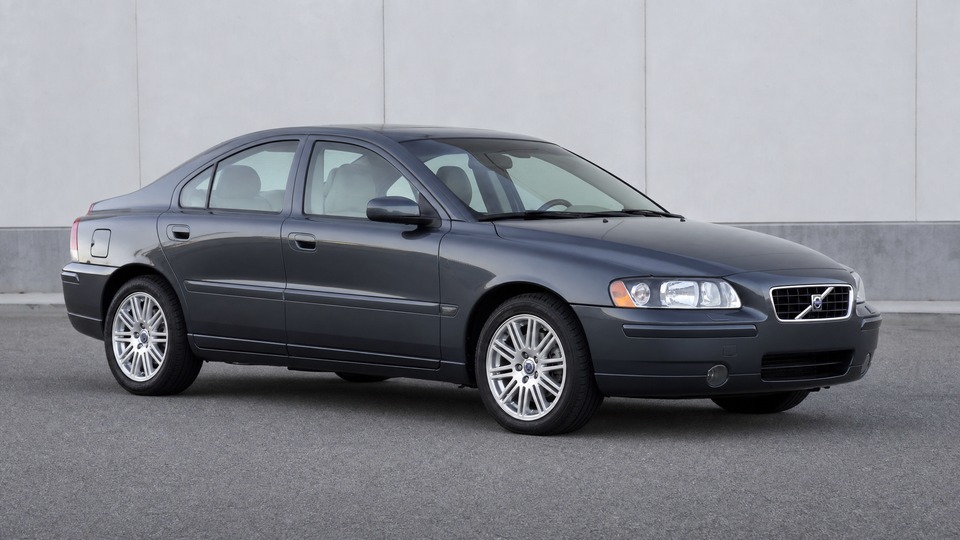

Volvo S60 2.4D P2

The 2.4D engine's EGR valve accumulates carbon deposits over time, particularly on cars used predominantly for short trips. When sufficiently clogged, it causes rough idle, hesitation, and engine management warnings. Cleaning costs approximately €150-300 at an independent shop; full EGR replacement runs €400-600. The swirl flap system is a separate but related issue affecting all D5244T variants: a small plastic rod connects the actuator motor to the swirl valves in the intake manifold. This rod has a plastic ball joint that wears out, causing the arm to detach. Symptoms include an 'Engine System Service Required' message on the dashboard and noticeable power loss under acceleration. Volvo dealers typically quote €600-800 for the repair because the intake manifold and injectors must be removed for access. Aftermarket repair kits with upgraded metal ball joints are available for around €60-80 for DIY repairs. The swirl flap issue affects the D5 engine family broadly and typically appears between 100,000 and 150,000 km.

ABS module failure is one of the most common issues on the entire P2 platform, affecting both petrol and diesel models equally. The module's internal circuit board degrades over time, causing ABS and DSTC (Dynamic Stability and Traction Control) warning lights to illuminate. When the module fails, ABS and traction control cease functioning, though basic braking remains operational. A new OEM module from Volvo costs €1,000-1,500 including programming. However, well-established specialist repair services across Europe can rebuild the existing module for €150-300 with multi-year warranties. Companies like BBA Reman and ATE-specialist workshops offer mail-in repair, making this a well-understood and economical fix. Most failures occur between 100,000 and 180,000 km.

This is a critical issue on D5244T engines. The auxiliary (serpentine) belt tensioner can fail, causing the belt to slip off and potentially wrap around the crankshaft pulley where it contacts the timing belt. If the timing belt is dragged off or damaged, catastrophic valve-to-piston contact occurs because the D5244T is an interference engine. Volvo issued a recall to replace the hydraulic tensioner with an updated mechanical design, and in some cases modified the cylinder block itself. However, not all vehicles were captured by this recall, and subsequent replacements may have reintroduced problematic parts. The auxiliary belt and tensioner should be inspected at every service and replaced preventively every 80,000 km. Tensioner replacement alone costs €200-400. If the belt wraps and destroys the engine, a replacement engine typically costs €3,000-4,000 including fitting. Always verify whether the recall work was completed and when the auxiliary belt was last replaced.

The Aisin Warner AW55-50SN 5-speed automatic was fitted to most Geartronic-equipped P2 S60s. Despite Volvo's claim that the fluid was sealed for life, the transmission fluid degrades with heat and age. The original valve body design put the car into neutral at standstill for fuel economy, which caused excessive wear on the B4 servo and first-gear clutch packs. Symptoms progress from rough shifts (especially 2nd to 3rd) to delayed engagement and eventually loss of gears. Early 2001-2002 cars are considered the most problematic. Volvo released a TCM software update and updated B4 servo piston to address the worst issues, costing approximately €50-150 for the software update alone. If internal damage has already occurred, valve body repair costs €800-1,500. A full gearbox rebuild runs €2,000-3,000. Regular fluid changes every 60,000 km are strongly recommended. This issue does not affect manual gearbox cars.

The CEM controls most electrical functions in the P2 Volvo and is located behind the glovebox area. Water enters through the cable entry point below the windscreen or from clogged scuttle panel drains, corroding the circuit board. Symptoms include windows not working, instrument cluster failures, no-start conditions, intermittent light failures, and central locking problems. A new CEM from Volvo costs €600-800 plus programming, but specialist repair services can refurbish the existing module for €200-400. Post-2005 facelift models received improved sealing but remain susceptible. When inspecting a P2 S60, test all electrical functions thoroughly. Multiple seemingly unrelated electrical failures are a strong indicator of CEM water damage.

The Bosch common-rail injectors on the D5244T can fail individually or develop worn copper seals. Early 2001-2003 engines had a known batch of problematic injectors on certain chassis numbers, where Volvo was sometimes willing to contribute toward repair costs during the warranty period. Symptoms include difficulty starting (especially in cold weather), rough idle, excessive black smoke, and diesel knock. A single injector costs approximately €250-350. Replacing all five injectors with labor and ECU calibration costs €1,500-2,000. Many owners report injector issues developing between 120,000 and 180,000 km. Using quality diesel fuel and regular fuel filter changes help extend injector life.

D5244T5 and D5244T4 models from mid-2005 onwards were fitted with a diesel particulate filter to meet Euro 4 emissions standards. Pre-2005 cars with Euro 3 engines (identifiable by a black engine cover rather than silver-grey) do not have a DPF and are unaffected. When the vehicle is used primarily for short trips, the DPF cannot complete its automatic regeneration cycle, which requires sustained driving at motorway speeds for 15-25 minutes. Incomplete regeneration leads to soot buildup, warning lights, and eventually a blocked filter. A forced regeneration at a garage costs €100-200. Professional cleaning costs €200-400. Full DPF replacement runs €800-1,200 for an aftermarket unit. If the DPF warning is ignored for too long, the car enters limp mode. Cars driven primarily on motorways rarely experience this problem.

Front control arm bushing wear is extremely common on P2 Volvos. The rubber bushings harden and crack with age, producing knocking or clunking sounds over bumps and imprecise steering. Most specialists recommend replacing the entire control arm assembly rather than pressing in new bushings, as the ball joint is integrated. Quality aftermarket arms from Meyle HD or Lemforder cost €50-80 per side. A complete front suspension refresh including both lower arms, stabilizer links, and tie rod ends costs €400-600 at an independent shop. Virtually all P2 S60s with more than 80,000-120,000 km will need this work. This is one of the most predictable wear items on the platform.
