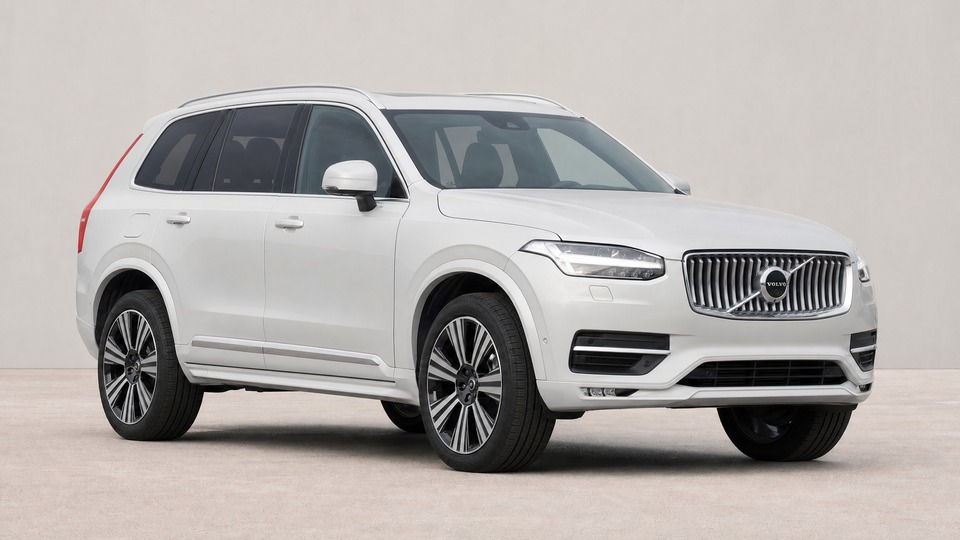

Volvo XC90 T5 Mk2

This is a known issue across all Volvo SPA-platform vehicles, including the XC90 T5. The evaporator core can freeze during normal AC operation, causing internal cracking and refrigerant loss. The repair is extremely expensive because the evaporator sits inside the main HVAC housing behind the dashboard. A technician must remove the seats, center console, steering column, and entire dashboard assembly to access it, requiring 12-15 hours of labor. Parts cost around 300-500 euro, but labor dominates the total bill. Volvo has introduced a preventative resistor harness (part number 32241228) that adjusts the temperature sensor reading to prevent the evaporator from getting too cold, but this is not fitted as standard. Some owners have experienced repeat failures even after replacement. The issue affects all model years on the SPA platform, with no clear production date cutoff. If buying a used XC90, check whether the AC blows cold on both sides and ask whether the evaporator has been replaced.

Early-production 2015-2016 VEA 2.0 engines (both T5 and T6) had a piston ring design that allowed oil to bypass into the combustion chamber, leading to oil consumption of up to 1 litre per 1,500 km. The root cause is carbon buildup blocking oil drain holes on the oil scraper ring, preventing proper oil return. Volvo modified the piston rings from engine serial number 1501327 onwards with larger oil drain holes. If the engine has the older pistons and symptoms are present, a piston ring replacement is required, which involves significant engine disassembly. A class action lawsuit was filed in the US over this issue. In Europe, Volvo addressed it through goodwill and extended warranty programs on a case-by-case basis. Most 2017+ production vehicles have the updated piston rings and do not exhibit this problem. When buying a 2015-2016 model, check the oil level carefully and ask about oil consumption history.

The Aisin TG-81SC 8-speed automatic is generally reliable, but the valve body can wear prematurely in cars used predominantly in stop-and-go traffic. When transmission oil loses its lubrication properties, the steel pistons sliding in the alloy housing start to stick, causing delayed or harsh shifts. Symptoms typically include a noticeable jerk when shifting from 2nd to 3rd gear under light throttle, and occasionally slipping in higher gears. This can appear before 80,000 km on city-driven cars. Volvo markets the transmission as having a lifetime fill, but specialists strongly recommend fluid changes every 60,000-80,000 km. A transmission fluid change and software recalibration can resolve mild symptoms. If the valve body needs replacement, expect 1,500-2,500 euro depending on whether a dealer or transmission specialist performs the work. Due to the complex valve body construction, replacement rather than repair is typical.

XC90 models equipped with the optional rear air suspension (common on Inscription trim) suffer from compressor failures due to moisture entering the compressor and dryer unit. All SPA-platform XC90s with air suspension built before 2019 are most susceptible, particularly in cold, humid climates. Symptoms include an uneven rear ride height, a 'Air suspension service required' warning, or the compressor running excessively. In the US, Volvo extended warranty coverage to 7 years from delivery, but in Europe coverage varies by market and is generally less generous. The compressor part costs around 400-500 euro, with labor adding 200-300 euro. The dryer unit should always be replaced alongside the compressor to prevent recurrence. Cars with standard steel springs are not affected by this issue.

The large Sensus Connect touchscreen controls nearly all vehicle functions including climate, navigation, and audio. Early models (2015-2017) were particularly prone to freezing, black screens, and spontaneous reboots. When the screen freezes, it can also affect turn signal sounds, parking sensors, and climate control. A temporary fix involves pressing and holding the Home button for 20-30 seconds, or locking the car and waiting 30 minutes for the system to reset fully. Volvo released multiple software updates that significantly improved stability on 2018+ models. If software updates do not resolve persistent issues, the Sensus control module may need replacement at 300-500 euro. Most cases on later models are resolved by free software updates during regular service visits.

On XC90s equipped with a panoramic sunroof, the drain tubes can become clogged with dust and debris within 1-2 years, even if the sunroof is never opened. The sunroof seal allows a small amount of water past by design, which is supposed to drain through four tubes at the corners. When these clog, water pools in the channels and eventually overflows into the cabin, collecting under the carpets and potentially flooding electronic control modules. Simple drain clearing costs 100-300 euro. If water has already damaged electrical modules, repair costs can escalate to 1,500-2,500 euro or more. Preventative maintenance involves clearing the drain tubes at every annual service. Cars without a panoramic sunroof are not affected.

The XC90 Mk2 weighs over 2 tonnes, and this mass combined with the aggressive regenerative braking distribution and adaptive cruise control creates significant thermal stress on brake components. Rear brake pads commonly need replacement by 30,000-40,000 km, and front rotors can develop thickness variation and pulsation within 30,000-50,000 km. Volvo has revised brake pad compounds and part numbers multiple times in an attempt to address this. While premature brake wear is factored into fixed costs, rotor warping that requires early replacement is an additional unpredictable expense. Upgraded aftermarket rotors and pads from brands like EBC or Brembo can improve longevity. The issue is worse in hilly areas and with frequent towing.
