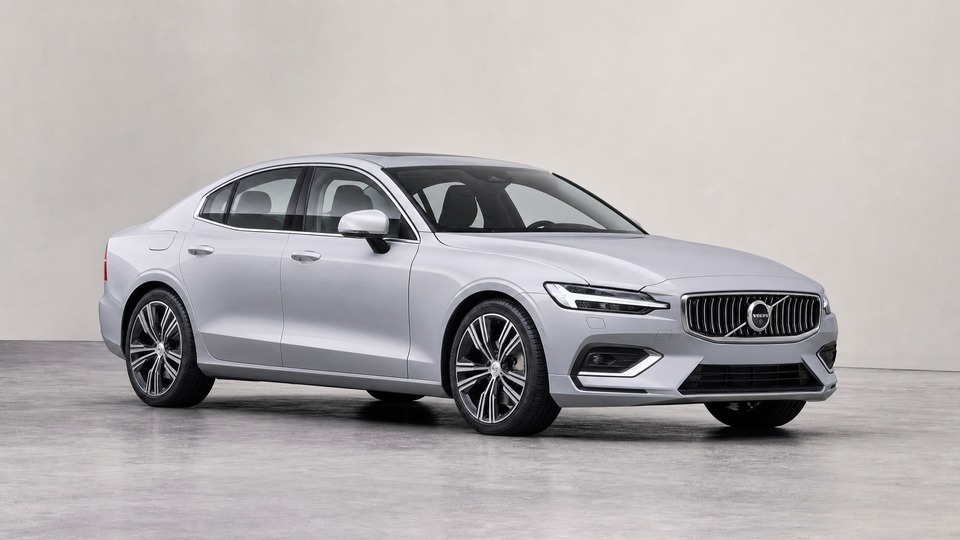

Volvo S60 B5 SPA

The S60 B5 draws significant standby current from the 12V battery through systems including the proximity key sensor, TCAM modem, and various control units. Even though the 48V system runs the starter and electrical accessories when driving, the 12V battery still serves as the wake-up battery and supports parasitic loads. Owners report the 12V AGM battery going flat after 1-3 weeks of inactivity, with 'Start/Stop battery service required' warnings appearing as early as the second year of ownership. The 12V battery is a specific AGM design due to the start-stop and mild hybrid integration: a standard flooded lead-acid battery cannot be substituted. A correct OEM AGM replacement costs €200-350 plus around €100 in labour and registration of the new battery with the BMS using Volvo VIDA software (independent shops with the correct tool can do this). For cars not driven daily, a quality 12V trickle charger (CTEK MXS 5.0) is essential.

The B5 mild hybrid replaces the conventional starter and alternator with a belt-driven Integrated Starter Generator (ISG) running on 48V. The ISG is mounted to the side of the engine and the 48V battery pack sits under the boot floor. Two well-documented failure modes exist on early production cars: (1) the MVBM (Mild-hybrid Vehicle Battery Module) can go offline due to a software bug, causing the 48V pack to fully discharge and the car to become unstartable, and (2) physical ISG failure has been reported on a handful of cars, requiring complete exchange of the unit. Volvo has issued multiple OTA software updates to address MVBM stability. When hardware does fail, the ISG itself costs approximately €1,500-2,200 as an exchange part plus 4-6 hours of labour; complete 48V pack replacement is in the €2,500-3,500 range. Some markets have an 8-year/100,000-mile (160,000 km) warranty on the high-voltage hybrid components. Independent shops are often reluctant to touch the 48V side, so out-of-warranty work usually goes to Volvo dealers.

The TCAM (Telematics Connectivity Antenna Module) handles the car's data connection, emergency call function, and Volvo On Call. The unit sits high in the car (often near the rear screen) and has been described by Volvo specialists as a weak design point sensitive to water ingress and temperature extremes. When the TCAM fails it can stay awake instead of going to sleep, drawing both the 12V and the 48V batteries completely flat over a few days. Owners report the car becoming completely dead with no response to the key fob. Replacement requires a new TCAM unit (€600-900) plus configuration to the car's identity by a Volvo dealer, total cost typically €1,200-2,500 including labour. Cars built between 2018 and the autumn 2018 production change are also subject to a software recall affecting the older VCM module. Verify the recall is closed and ask whether the car has experienced any 'reduced connectivity' warning lights.

Cars built 2020 through early 2022 use the Sensus infotainment system; from 2022 onwards the S60 uses Google's Android Automotive OS. Both systems are reported as glitchy. Sensus cars suffer screen freezes, unresponsive controls, and spontaneous reboots, particularly during cold starts or Bluetooth pairing. Android Automotive cars have a much more limited initial feature set than Sensus and have needed multiple over-the-air updates to reach functional parity. The common workaround on Sensus is to hold the Home button for 20-30 seconds for a soft reset. Free software updates resolve most software-side issues. However, chronic hardware failures requiring centre display module (CDM) replacement run €1,500-2,000 including labour. Newer Android Automotive cars receive OTA updates but the underlying issue of single-screen-controls-everything (climate, audio, navigation, backup camera) makes any freeze frustrating. Keep software up to date and budget for one CDM replacement during ownership of an older Sensus-era car.

A notable issue specific to 2019 and newer S60/V60 owners is highway vibration felt through the seat bottom, backrest, and steering wheel above 100-120 km/h. The cause varies: most cases are resolved with proper road-force wheel balancing (€80-120 at a tire specialist) or a set of new tires. Some cases have been traced to drive shaft balance issues or transmission mount wear (€400-800), and a handful to ISG belt tensioner wear. Sensus and Android Automotive forum threads contain dozens of owner reports. On a test drive, accelerate to motorway speed and feel for any vibration. If present, ask whether the owner has had road-force balancing done and request to inspect the tires for wear patterns or cupping.

Some S60 B5 owners report earlier-than-expected front brake wear, with pads and rotors needing replacement between 40,000 and 70,000 km. Two factors contribute: the B5 mild hybrid uses regenerative braking primarily at the front through the ISG (which slows the engine rather than directly braking the wheels), and the car is nose-heavy with FWD as standard. Driving style and city/motorway mix matter significantly. Front pads alone run €200-300, full front brake job (pads and rotors) is €450-700 at an independent shop or €700-900 at a Volvo dealer. Rear brakes typically last 80,000+ km. Worth inspecting at viewing; uneven wear or thin rotors are a negotiation point.

The Aisin AWF8F35 8-speed automatic in the S60 B5 is generally robust, but reports of clunking on park-to-reverse shifts, hesitation between higher and lower speeds, and torque converter lockup shudder do exist. Volvo has issued a TCU software update that resolves around 90% of the harsh-shift complaints. The transmission fluid is officially 'lifetime fill' but most independent Volvo specialists strongly recommend a drain-and-fill at 80,000-100,000 km using the correct Aisin AW-1 (or equivalent) fluid - cost approximately €300-450. Failure to service the fluid is the main cause of valve body wear, which if neglected runs into a refurbished valve body at €1,500-2,500 or a full rebuild at €3,000+. Ask whether the TCU has been updated and whether the transmission fluid has been changed.

This is a well-documented SPA platform issue affecting S60, V60, and XC60 cars with the panoramic sunroof. The drain system has three weak points: the rubber pass-through valve at the drain hose end can split, the plastic hose connecting the sunroof to the valve can shrink from heat cycling and detach, and the drain channels themselves clog with leaves and debris. When water cannot drain properly, it overflows into the floor pan where electronic modules are located. Documented repair bills for water damage to floor-mounted wiring harnesses have exceeded €3,000 in severe cases. Preventive maintenance is straightforward: clear the drain channels annually using compressed air with the sunroof tilted open (cost €0 DIY, €60-100 at a workshop). During inspection, check headliner edges, A-pillar trim, and floor carpets for water stains, dampness, or mustiness.
