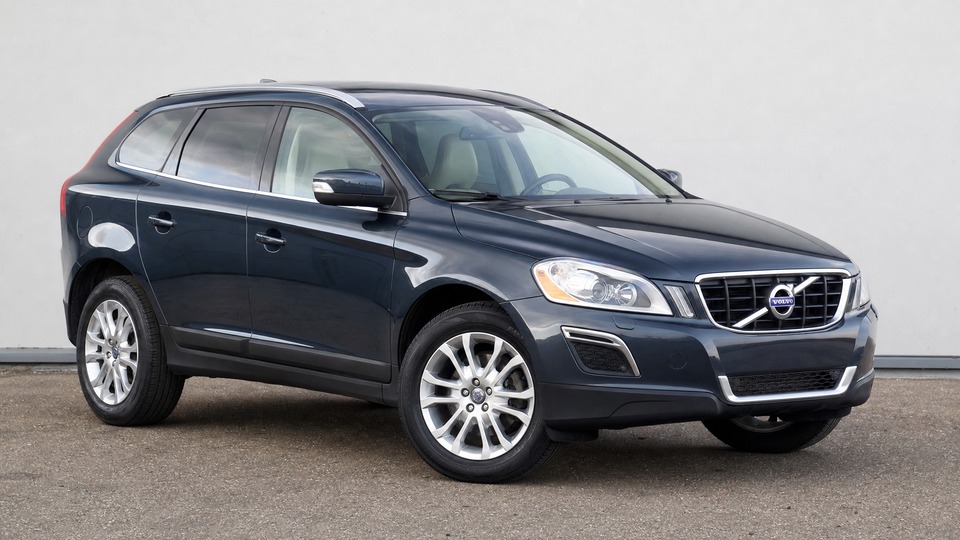

Volvo XC60 D5 Mk1

The D5244T uses a variable-geometry turbocharger that can develop seal failures and stuck vanes, typically between 120,000 and 200,000 km. Symptoms include loss of power, black smoke from the exhaust, and a metallic whistling or whining sound under load. Later twin-turbo D5244T20/T22 engines (2013+, 220 hp) have two smaller turbos which adds complexity. A single turbo replacement costs around 1,500-2,000 euros at an independent specialist. Twin-turbo versions can reach 2,500-3,000 euros. Using quality low-SAPS oil, changing it every 15,000 km or annually, and allowing the engine to idle briefly after hard driving all help extend turbo life. Most D5s will not need a turbo replacement within normal ownership if properly maintained, but it is the single most expensive potential repair.

The angle gear is a 90-degree transfer unit bolted to the Aisin gearbox, redirecting power to the rear axle via the propshaft. It sits directly behind the engine and below the turbo, reaching oil temperatures of 85-100+ degrees Celsius. The internal splined sleeve has an average lifespan of around 130,000-160,000 km and always strips on the angle gear side rather than the transmission side. Volvo does not specify a service interval for the angle gear fluid, but specialists strongly recommend changing it every 60,000 km. Many owners are unaware this maintenance is needed. If the angle gear fails, symptoms include vibration, clunking, and eventual loss of rear-wheel drive. A replacement unit costs 800-1,500 euros at a specialist. If the propshaft is also damaged, the total bill reaches 1,500-2,500 euros. Preventive fluid changes are far cheaper than replacement.

The EGR system on the D5244T is well documented as a weakness, particularly on cars driven mainly in urban traffic. Carbon deposits gradually restrict the EGR valve and cooler, triggering the check engine light and eventually limp mode. Cleaning the EGR valve costs approximately 200-400 euros but is often a temporary solution, as carbon returns if driving habits do not change. Full replacement of the valve and cooler assembly runs 800-1,200 euros. The problem typically appears between 80,000 and 130,000 km. Periodic motorway driving at sustained speeds helps prevent buildup. Some owners opt for an EGR delete or blanking plate, but this is not legal for road use in most European countries and will cause MOT/TUV failures.

Like all modern diesels, the XC60 D5 needs regular motorway driving to allow automatic DPF regeneration. When driven primarily on short trips, soot accumulates until the filter is blocked. A forced regeneration at a workshop costs 150-300 euros. Professional DPF cleaning runs 300-500 euros. Full replacement costs 1,000-2,000 euros. Repeated incomplete regeneration cycles also cause fuel dilution of the engine oil, which degrades lubrication and can damage bearings over time. Check the engine oil level before purchase: if it is well above the maximum mark, diesel has been contaminating the oil. Weekly motorway drives of 20+ minutes largely prevent this issue.

The D5244T intake manifold contains swirl flaps that optimize airflow at different engine loads. The linkage connecting these flaps to the actuator is prone to detaching, and the flaps themselves can become jammed or snap off due to carbon buildup. Symptoms include rough idle, poor throttle response, and engine warning lights. A swirl flap repair kit costs around 50-100 euros and can be fitted at home with basic tools. Professional repair runs 200-400 euros. If the manifold is heavily damaged, a replacement manifold costs 500-800 euros. Some owners choose to install a swirl flap blanking kit, which removes the flaps entirely and reportedly improves airflow, though this may affect emissions compliance. This issue affects the majority of D5 engines at higher mileages.

The Aisin TF-80SC 6-speed automatic is generally reliable but can develop solenoid or valve body issues, particularly on cars where transmission fluid was never changed. Volvo considers the fluid a lifetime fill, but specialists strongly recommend replacing it every 60,000-80,000 km. Symptoms include harsh downshifts, delayed gear engagement, hesitation in stop-and-go traffic, and in severe cases, limp mode. Using the correct fluid specification is critical: post-2012 cars require JWS 3324 oil, while earlier cars use JWS 3309. Incorrect fluid causes accelerated wear. A solenoid replacement costs approximately 500-800 euros. A full valve body replacement runs 1,200-2,000 euros. A fluid change on a car that has been neglected for 150,000+ km can sometimes make things worse by dislodging debris, so transmission specialists may recommend a full flush with filter change instead.

The brake vacuum pump on the D5244T is driven by the camshaft and uses an internal seal that deteriorates over time. When the seal fails, engine oil leaks onto the gearbox bell housing. This is a well-known issue on all Volvo 5-cylinder diesels and is not just cosmetic, as oil can reach the clutch on manual cars or drip onto exhaust components. A rebuild kit costs approximately 60-80 euros and takes 1-3 hours to fit. At an independent garage, the repair runs 300-500 euros. A Volvo dealer may quote 500-700 euros. The leak typically develops between 80,000 and 130,000 km and is progressive rather than sudden.

The Haldex coupling on the rear axle is responsible for distributing torque to the rear wheels. It uses an electric pump and a filter that Volvo does not schedule for routine service. On higher-mileage cars where the fluid has never been changed, the pump can overheat and fail. Symptoms include an 'AWD Disabled' warning on the dashboard and loss of rear-wheel traction. A Haldex service kit (fluid + filter) costs around 100-120 euros and should be done every 60,000 km to prevent failure. If the pump has already failed, replacement costs 400-800 euros for the pump unit plus labor. In rare cases, the complete Haldex unit may need replacement at 1,000-1,500 euros. Preventive fluid changes are the best protection.
