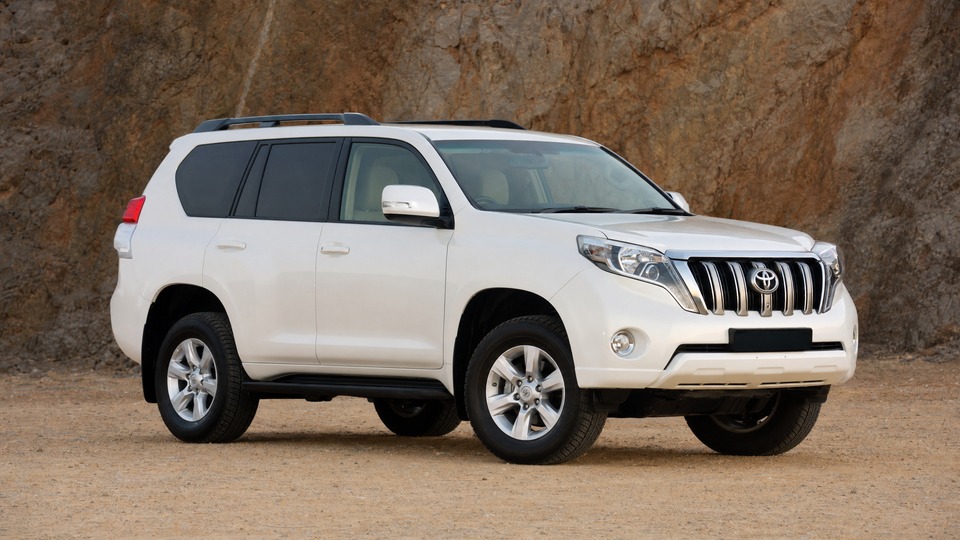

Toyota Land Cruiser 3.0 D-4D J150

When Toyota redesigned the 1KD-FTV for Euro 4 compliance in 2006, they removed the metal fibrous reinforcement from the piston crown and altered the compression ratio. This created a fundamental structural weakness. Affected piston part numbers include 13101-30060, 13101-30090, and 13101-30150. Pistons crack (usually cylinders 3 and 4), causing black exhaust smoke, loud knocking, loss of power, and high crankcase pressure. Most failures occur at 100,000-150,000 km, but some as early as 50,000 km. Vehicles with tuning chips or heavy towing loads are at highest risk. Toyota issued TSB EG-008T-0112 in September 2014 acknowledging the defect. Revised pistons (13101-30200 with ID code 110, later 13101-30250 with ID code 130) were introduced from 2013-2014 production onwards. Engine rebuild with new pistons costs €7,000-8,500 at a specialist; complete replacement engine €10,000-15,000. Post-2014 engines are significantly more reliable. Preventive piston replacement on a pre-2014 engine costs approximately €4,000-5,000 if done before failure.

The 1KD-FTV uses common rail direct injection operating at 30-160 MPa with multiple injections per combustion stroke. These extreme pressures cause premature injector wear, typically between 80,000-140,000 km depending on fuel quality. Symptoms include loud knocking when cold, rough idle, high fuel consumption, and white smoke (when copper injector seats fail on pre-2007 models). Toyota recommends preventive replacement every 100,000 km. Failed injectors can cause incorrect combustion patterns that accelerate piston cracking. A full set of four genuine Denso injectors costs €2,000-2,500; dealer installation adds €500-1,000 in labor. Some specialists achieve good results with ultrasonic injector cleaning at €300-400 per set. Installing a secondary fuel filter (Racor, Fuel Manager) for around €200 significantly extends injector life by filtering particles below 2 microns.

The diesel particulate filter requires sustained highway driving at 60+ km/h to reach temperatures necessary for regeneration. Short urban trips prevent this process, leading to soot accumulation. Warning signs include a DPF warning light, limp mode, increased fuel consumption, and error codes P2002 and P2463. A class action in Australia covered approximately 264,000 affected Hilux, Prado, and Fortuner vehicles. Toyota extended the DPF warranty to 10 years from first delivery in some markets. Post-July 2018 models received a manual DPF burn-off button. Professional forced regeneration costs €200-400 but is often a short-term fix. DPF chemical cleaning costs €500-800. A new genuine DPF unit costs €900-1,200; full replacement with labor runs €1,400-1,800. Aftermarket DPFs are available from €300-900. At least one sustained highway drive of 20+ minutes per week prevents most DPF issues.

The CT16V variable geometry turbocharger's electronic actuator (stepper motor) is prone to sticking from carbon buildup, especially on vehicles driven gently or only short distances. Symptoms include black smoke, loss of power, EPC warning light, and limp mode. This typically develops between 120,000-150,000 km. The actuator alone can be repaired at a specialist for €500-600, but if turbo internals are damaged (worn vanes, shaft play), full turbo replacement is needed at €1,200-2,500 depending on aftermarket vs OEM CT16V unit. A remanufactured turbo is a cost-effective alternative at €800-1,200. The oil feed line should always be replaced alongside the turbo as it frequently becomes clogged with carbon deposits. Occasional spirited driving and regular oil changes help prevent actuator sticking.

The exhaust gas recirculation valve and cooler accumulate heavy carbon deposits, particularly on vehicles used predominantly for short trips and city driving. Symptoms include check engine light, reduced power, rough idle, and pinging under load. Professional EGR cleaning every 60,000 km is recommended to prevent downstream damage to the intake manifold and turbocharger. EGR valve replacement costs €450-600; a new EGR cooler runs €800-950. Carbon cleaning of the entire intake system costs €300-400 at a specialist. Regular highway driving and quality diesel fuel reduce carbon buildup. When the EGR valve is removed for cleaning or replacement, always inspect the EGR passages in the intake manifold to ensure they are clear.

The plastic components of the cooling system (radiator end-tanks, overflow tank pipes, coolant hoses) become brittle with age and heat cycling. The most common failure point is the plastic pipe connecting the radiator to the overflow tank on the passenger side. By 150,000 km, some coolant system component will likely need attention. Hairline cracks in the radiator end-tanks develop slowly, producing pinkish coolant residue around the radiator. A genuine Denso radiator costs €900-1,000; aftermarket aluminum/plastic replacements are available from €300-500. Coolant hose replacement set costs €150-250. Rear heater pipes (on models with rear heating) can corrode and leak slowly, often going unnoticed because they dry quickly in the airflow under the vehicle. Total repair including labor runs €500-1,200 depending on scope.

Models equipped with the optional KDSS (Kinetic Dynamic Suspension System) use interconnected hydraulic cylinders to manage body roll. These cylinders can develop fluid leaks over time, and the accumulator solenoid is prone to rust and malfunction. Symptoms include a flashing KDSS warning light, excessive body sway in corners, and uneven ride height side-to-side. Individual hydraulic cylinders cost approximately €800-1,200 per unit, with labor adding €300-500 per axle. A complete KDSS overhaul including both front and rear cylinders, hoses, and fluid can reach €3,000-4,000 at a dealer. Some owners convert to conventional stabilizer bars as a more cost-effective long-term solution. Not all J150 models have KDSS — base models use conventional suspension and do not have this issue.

The hydraulic power steering pump develops leaks at higher mileages, typically 120,000-150,000 km. Symptoms include groaning noise when turning, stiff steering at low speed, and fluid puddles under the vehicle. An OEM Toyota pump costs approximately €1,100, while a seal kit costs only €45. Resealing the pump is a viable option if caught early, taking about 15 minutes on a bench once removed. Total replacement at an independent shop costs €400-800 including labor. Aftermarket pumps tend to leak again within a year and are not recommended. Toyota genuine or remanufactured units are the best option for long-term reliability.
