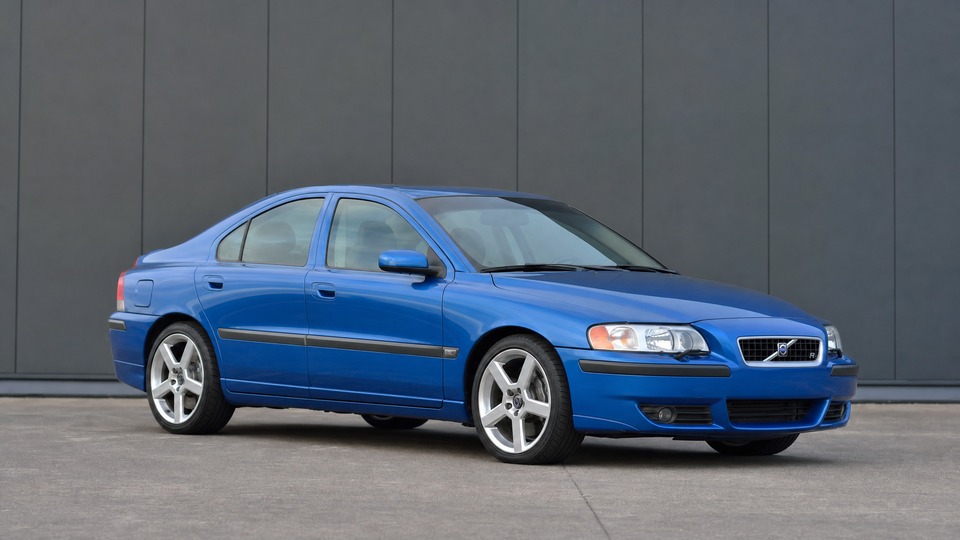

Volvo S60 R P2

The angle gear transfers power from the transmission to the rear driveshaft via a collar sleeve with internal splines. Under hard launches or traction changes (e.g., gravel to tarmac), these splines wear down and eventually strip. Manual transmission S60 Rs are more affected than automatics, and 2004-2005 models more than 2006-2007. The collar sleeve itself costs around €100-150 and is the most common fix (about €400-600 total with labor). However, if left unaddressed, damage can spread to the angle gear internals, requiring a full unit replacement at €1,500-2,500. Preventive care includes gentle launches and checking for AWD warning lights. Many owners report that failures occur between 80,000-150,000 km. A separate but related issue is angle gear oil leaks from the seal, which cost around €200-400 to fix. Always inspect under the car for oil drips at the transmission/driveshaft junction.

The Four-C (Continuously Controlled Chassis Concept) suspension uses electronically regulated Monroe/Ohlins dampers that adjust stiffness from soft to hard in milliseconds. These dampers are complex and eventually leak fluid or develop solenoid failures. Common symptoms include a 'Chassis Settings Service Required' message and the suspension being stuck in one mode. Replacement Four-C struts cost approximately €200-300 each (aftermarket Monroe units) to €400+ each (OEM), plus labor of 2-3 hours per axle. A full set replacement runs €800-1,500 at an independent shop, or €2,000-3,000 at a dealer. Water intrusion into the Four-C control module (located under the rear seat) can also cause system failures. There is no easy conversion to standard struts because the Four-C system is integrated with the car's electronics. Most failures occur after 80,000-120,000 km or 8-10 years.

The DEM is the electronic brain of the Haldex AWD system, mounted under the car where it is exposed to water and road salt. Corrosion on the circuit board causes fault codes (DEM-0002, DEM-0003, DEM-0006, DEM-0007) and 'Anti Skid Service Required' warnings. A new OEM DEM from Volvo costs €800-1,200, but rebuilt/repaired units are available for €350-500 from specialists. The Haldex pump can also fail separately due to contaminated fluid clogging the filter, eventually burning out the pump motor. Regular Haldex oil and filter changes (every 30,000-40,000 km) significantly reduce the risk of both DEM and pump failures. Protective covers for the DEM are available as aftermarket accessories (e.g., from IPD) and are a worthwhile preventive measure.

On automatic S60 Rs with the Aisin AW55-51SN gearbox, the transmission fluid is cooled via passages integrated into the engine radiator. If the internal seal between the coolant and ATF circuits fails, coolant enters the transmission. This is catastrophic because glycol destroys the clutch packs rapidly. Volvo has cited approximately a 2% failure rate. When the engine is off, coolant pressure (about 2.3 bar) pushes coolant into the zero-pressure ATF circuit. Symptoms include milky transmission fluid and frequent coolant-low warnings. If caught early, a radiator replacement (€300-500) and a full transmission fluid flush may save the gearbox. If the clutch packs are contaminated, a transmission rebuild or replacement costs €2,500-5,000. An aftermarket external transmission cooler (€150-250 installed) eliminates this risk entirely and is a recommended preventive upgrade.

The PCV system on the B5254T2 engine consists of a breather box (flame trap) and plastic tubing that becomes brittle and internally restricted with age. When clogged, crankcase pressure rises and forces oil past the valve cover gaskets, cam seals, and even the rear main seal. Symptoms include oil on the spark plug cover area, smoke from the dipstick tube when checked with the engine running, and illuminated check engine light due to incorrect fuel trim readings. The system should be serviced every 80,000-100,000 km depending on oil quality and driving conditions. Parts cost €100-200 and labor is approximately 2-3 hours. Neglecting this maintenance can lead to progressive seal failures that are individually more expensive to fix. Using high-quality synthetic oil and maintaining regular oil change intervals (maximum 15,000 km) reduces clogging.

ABS module failures are common across the P2 Volvo platform. The module's internal solder joints crack from repeated heating and cooling cycles, producing fault codes that often mimic wheel speed sensor failures (most commonly front left sensor). The DSTC (Dynamic Stability and Traction Control) system also relies on this module, so failures produce 'Anti Skid Service Required' messages. Low or fluctuating alternator voltage can accelerate module degradation. Repair options include module reflow/repair by specialists (€200-400) or a full replacement module (€600-1,200 installed). Diagnosis requires Volvo-specific scan tools (VIDA/DiCE) to distinguish module faults from actual sensor failures. This is a widespread P2 platform issue, not specific to the R, but the R's higher performance use may accelerate the thermal cycling.

The KKK (BorgWarner) K24 turbocharger on the S60 R operates at higher boost pressures than the standard 2.5T turbo, which accelerates wear on the bearings and seals. Symptoms include blue/white exhaust smoke (oil burning), reduced boost pressure, and increased oil consumption. A rebuilt K24 turbo costs approximately €500-800, while a new unit runs €1,000-1,500. Labor is approximately 4-6 hours. Ensuring proper warm-up and cool-down routines (avoiding immediate shutdown after hard driving) extends turbo life. Many owners report the original turbo lasting 150,000-200,000 km with good care. Always check for turbo shaft play during a pre-purchase inspection by removing the intake piping and checking for lateral movement in the compressor wheel.

The B5254T2 uses an 83mm bore aluminum block that is susceptible to cylinder sleeve cracking, especially at the 300 hp output level. Cylinder 4 is the most commonly affected. The cracking can result from pre-detonation causing localized overheating, and the thinner cylinder walls at 83mm (compared to earlier 81mm bores) offer less margin. This occurs more frequently in tuned cars running higher boost, but stock vehicles can also be affected. Symptoms include slow coolant loss without visible external leaks and occasional misfires. If a crack develops, the engine typically needs a used replacement block (€1,000-1,500 for a suitable donor) plus machine work and labor (€1,500-3,500 total). While the forums have documented cases, this remains an uncommon failure on stock engines with proper maintenance, occurring primarily after 150,000+ km or on cars that have been driven aggressively.
