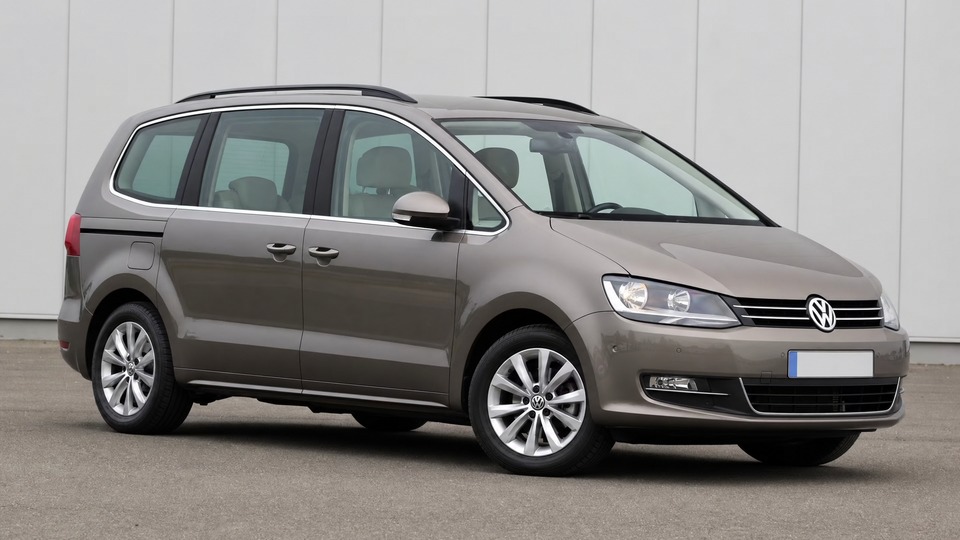

Volkswagen Sharan 1.4 TSI 7N

The EA111 CAVA twincharged engine (2010-2015 models) uses a single-row timing chain that was not robust enough for the loads placed on it. The hydraulic tensioner has a release valve that weakens over time, allowing oil pressure to bleed off while the engine is not running. This results in a distinctive rattle for 1-30 seconds on cold start, as the chain runs slack until oil pressure builds. The chain can also stretch beyond its adjustment range, typically after 80,000-120,000 km with long service intervals or low-quality oil. If the chain jumps teeth, it causes piston-to-valve contact and catastrophic engine damage. VW never issued a formal recall for this problem. A full chain, tensioner, guides, and sprocket replacement costs approximately 1,200-1,800 euros at a specialist (7+ hours labor), rising to 2,000-2,500 euros at a VW dealer. If engine damage has already occurred, a replacement engine may be necessary at 4,000-7,000 euros. Short oil change intervals (10,000 km maximum) with high-quality 5W-30 oil significantly reduce the risk. Post-2015 CZDA engines use a timing belt and are not affected by this issue.

This is one of the most commonly reported Sharan-specific problems, shared with the diesel variant. The electric sliding door system uses four cables and an electric motor with an anti-pinch safety sensor embedded in the rubber gasket. As the motor weakens with age, the system interprets extra resistance as an obstruction and reverses the door. The rubber gasket can shift position, triggering false anti-pinch alerts. In freezing temperatures, ice often prevents proper closure. The drive unit costs approximately 500-600 euros, and a complete OEM replacement including the control unit can reach 2,000-2,500 euros at a VW dealer. Independent specialists can often repair for 800-1,200 euros. Cleaning the door roller guides and lubricating them with PTFE spray resolves most minor issues. Some owners disconnect the electric function entirely, converting to manual operation. Cars without the electric sliding door option avoid this problem.

The Sharan's DQ250 six-speed wet-clutch DSG is more robust than the DQ200 dry-clutch found in smaller VW models, but it still develops problems with age. Sulphur buildup in the transmission fluid can cause short-circuiting of internal wires, leading to gear disengagement, jerky shifts, and warning lights. Clutch pack wear manifests as shuddering on acceleration, typically noticeable from 2nd gear upward around 2,000 rpm when turbo boost arrives. Mechatronic repair at a specialist costs 800-1,500 euros. Full clutch pack replacement adds another 1,000-1,500 euros. DSG oil and filter changes every 60,000 km (300-400 euros per service) are essential, despite VW once marketing the fluid as a lifetime fill. Manual gearbox Sharans avoid this problem entirely and should be preferred where available.

Both the CAVA and CZDA engines use direct fuel injection, which means fuel does not wash over the intake valves to keep them clean. Oil vapors from the PCV system coat the valve surfaces and bake into hard carbon deposits over time. Significant buildup typically begins affecting performance between 60,000 and 100,000 km, causing rough idle, cold misfires, reduced power, and poor fuel economy. Walnut blasting is the most effective cleaning method, costing approximately 300-500 euros at a specialist. Some owners report success with chemical cleaning products, though these are less thorough. Regular spirited driving and using premium fuel can slow the accumulation but not prevent it entirely. The Sharan's weight means the engine works harder than in lighter VW Group cars, potentially accelerating carbon buildup.

Ignition coil failure is a common issue on the 1.4 TSI engine across VW Group models. The coils degrade from repeated heat cycling and engine vibration, typically failing between 60,000-100,000 km. Symptoms include the engine management light illuminating, rough running, and misfires on individual cylinders. Diagnosis is straightforward: swapping the suspect coil to another cylinder confirms the fault if the misfire follows. A genuine VW coil costs approximately 30-50 euros, and aftermarket options are available for less, though quality varies significantly. Always use genuine or OEM-quality coils, as cheap aftermarket units are a common source of recurring misfires. Replacing all four coils and spark plugs together as a preventive measure costs 150-400 euros depending on parts quality.

Post-2015 Sharans with the EA211 CZDA engine use an integrated water pump and thermostat housing assembly with two separate thermostats managing coolant flow for the block and cylinder head independently. The plastic housing can crack or develop leaks, often triggered by contact with engine oil from a leaking PCV assembly. Symptoms include coolant loss, engine overheating warning, or poor cabin heating. The integrated assembly typically costs 200-350 euros for parts, but labor runs 4-6 hours because the intake manifold must be removed for access. Total repair at an independent garage is approximately 500-700 euros, rising to 700-900 euros at a VW dealer. This issue typically appears between 80,000 and 120,000 km. Pre-2015 CAVA engines have a different cooling system layout and are less prone to this specific failure.

Higher-spec Sharans with the panoramic sunroof have four corner drain tubes that clog with debris over time, causing water to overflow onto the headliner and down the A-pillars. The rubber seals can detach from the frame, and VW's glued drain hose connections can separate from heat cycling. If water reaches the body control module, replacement costs 800-1,000 euros. Drain cleaning and seal repair typically costs 200-500 euros at a specialist. Complete sunroof cassette replacement at a VW dealer can reach 1,600-2,000 euros. Regular drain maintenance prevents most issues. Cars without the panoramic sunroof avoid this problem entirely.
