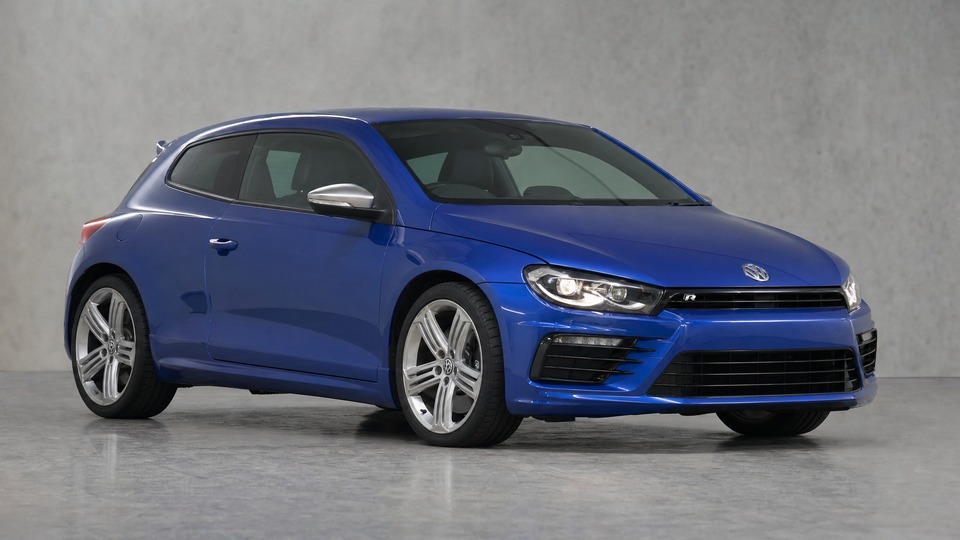

Volkswagen Scirocco R 2.0 TSI Mk3

This is the most important maintenance item on the EA113 engine. The high-pressure fuel pump is driven by a lobe on the intake camshaft via a bucket-style cam follower. Over time, the hardened coating wears through, exposing the softer metal underneath. If left unchecked, the pump piston machines directly into the camshaft lobe, destroying both the follower and the cam lobe. The follower itself costs only €40-60, and preventive replacement every 30,000 km on stock cars (15,000-20,000 km on tuned cars) is strongly recommended. If caught early, only the follower needs replacing — a simple 15-minute job costing under €100. If the camshaft is already damaged, the repair jumps to €1,500-2,500 for a new camshaft and associated labor. Always check the service history for evidence of regular cam follower inspections. If there is no record, assume it needs replacing immediately.

The EA113 engine uses a chain-driven oil pump integrated with the balance shaft module. The sprocket (part 06F105243C) is the weakest link in the system — it rotates at twice the crankshaft speed and can fail due to fatigue, particularly on engines that spend a lot of time at high RPM. Additionally, carbon deposits can clog the oil pickup screen over time, starving the pump of oil. Failure is catastrophic: complete oil pressure loss leads to bearing damage and potential engine seizure. Symptoms include a brief red oil pressure warning light, followed by engine noise and failure. Cars with regular oil changes using quality synthetic oil are less susceptible. Balance shaft delete kits and upgraded Pierburg oil pump conversions are available from specialists for €500-800 as a preventive measure. If the engine has already suffered oil pressure loss, a rebuild or replacement is typically needed at €3,000-5,000.

The OEM diverter valve uses a rubber diaphragm that tears from heat and pressure cycling. This is particularly common on tuned cars but also affects stock engines, typically between 60,000-120,000 km. Symptoms include a hissing sound under boost, sluggish acceleration, and the turbo taking longer to spool. When the diaphragm tears, boost pressure escapes and the turbo cannot reach its target. Volkswagen does not sell just the diaphragm — the entire valve must be replaced. An OEM replacement costs around €80-120. Many owners upgrade to a piston-type aftermarket diverter valve (Forge, GFB) for €150-250, which eliminates the rubber diaphragm entirely and provides a permanent fix. This is a straightforward repair taking under 30 minutes.

The 2.0 TSI intake manifold contains variable-length intake runners controlled by a flap motor. The actuator arm and position sensor are prone to failure, particularly on 2009-2011 cars. Symptoms include rough/lumpy idle at cold start, flat spots in acceleration, increased fuel consumption, and fault codes P2015 or P2014. VW released a revised manifold (part 06J133201BH) with an improved actuator design. Unfortunately, the sensor cannot be replaced separately — the entire manifold must be swapped. An independent shop charges approximately €400-500 for the part and fitting, while a VW dealer quotes around €600-700. Some owners opt for a flap delete, which is simpler but may trigger fault codes.

The Scirocco R's optional 6-speed DQ250 DSG is the wet-clutch variant, which is generally more reliable than the dry-clutch DQ200 used in smaller VW models. However, the mechatronic control unit can still fail, causing symptoms like lurching from standstill, jerky gear changes, loss of reverse, or the gearbox going into neutral unexpectedly. Most issues appear between 80,000-150,000 km. A new mechatronic unit from VW costs approximately €1,500, plus labor and oil/filter change, totalling €2,000-2,500 at a dealer. Specialist repair companies can refurbish the unit for €300-500, bringing total cost including labor to €800-1,200. Regular DSG oil and filter changes every 60,000 km significantly reduce the risk of mechatronic failure. Manual gearbox models do not have this issue — they use a conventional 6-speed manual which is robust.

The K04 turbocharger's wastegate can develop play in the pivot shaft over time, particularly from exhaust gas pulsations. This manifests as a metallic rattle or tapping noise, especially at idle and low RPM. In mild cases, the rattle is cosmetic and does not affect performance. In severe cases, the wastegate can stick or fail to regulate boost pressure correctly, causing overboosting or underboosting. VW issued a spring clip fix (part 06J 145 220A) that helps reduce the rattle on mildly affected turbos. If the wastegate mechanism is severely worn, a wastegate repair kit with new flapper, bushing, and arm costs approximately €150-250 plus welding. If the turbo itself has suffered internal bearing damage (more common on tuned cars), a full replacement is necessary at €1,500-2,500 including labor.

The EA113's PCV (positive crankcase ventilation) valve contains a rubber diaphragm that tears over time, typically between 60,000-100,000 km. When it fails, crankcase pressure builds up, which can lead to oil being pushed past seals and gaskets. Symptoms include rough idle, a high-pitched squealing or whistling noise, oil leaks around the valve cover, and in severe cases, oil being pushed into the intake manifold. A simple diagnostic test: if the engine runs better when you remove the oil filler cap, the PCV is likely faulty. The part costs €80-150, and replacement takes approximately 1-2 hours. If left unfixed, the excess crankcase pressure can damage the rear main seal, which requires gearbox removal to fix — pushing costs to €1,000+. Preventive replacement at 80,000 km is recommended.

The EA113 engine uses a mechanical water pump with a plastic thermostat housing that can warp or crack from heat cycling. Coolant leaks typically appear between 80,000-130,000 km. Symptoms include low coolant warnings, a sweet smell from the engine bay, poor cabin heating, or visible coolant around the thermostat housing area. On pre-facelift cars, the water pump is replaced alongside the timing belt, which spreads the cost. On facelift cars with the timing chain, it is a separate job. Parts cost €200-350, and labor is approximately 3-4 hours, bringing total cost to €400-800 depending on the shop.
