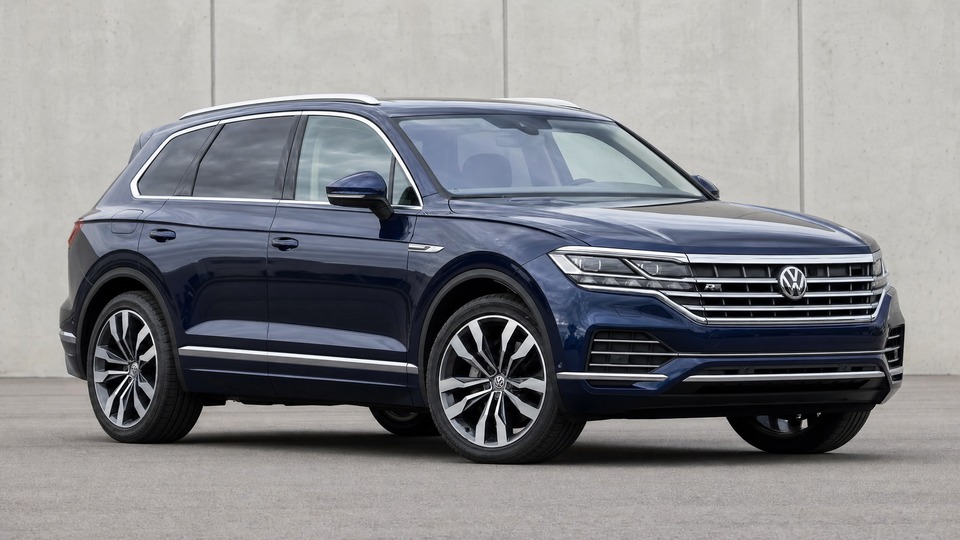

Volkswagen Touareg Mk3 3.0 TDI

The Touareg Mk3 uses optional air suspension on most R-Line and Atmosphere/Elegance trims. Air struts develop leaks in the rubber bladders, the compressor burns out from overworking to compensate, and the valve block or height sensors can fail. A single OEM air strut runs €800-1,200 plus 2-3 hours labor. A new compressor fitted at an independent shop is €600-900. If the vehicle sags overnight or shows a 'Running Gear Fault' warning, investigate immediately as a leaking strut forces the compressor to overwork and burn out. Aftermarket air spring suppliers like Arnott or Bilstein offer significantly cheaper parts (€350-500 per strut). Cold climates accelerate rubber deterioration. Worst-case scenario where multiple components fail together can reach €3,000-3,500.

The AdBlue tank heater is a known failure point on VW group 3.0 TDI engines. The original heater design lets caustic urea solution attack the heating element. NOx sensors (one upstream and one downstream of the SCR catalyst) also have a finite lifespan and commonly fail between 80,000-150,000 km. Symptoms include EML warning, AdBlue countdown timer, and eventually a no-restart condition. Each NOx sensor costs around €350-450 fitted. Tank heater replacement runs €400-800 at independent shops, €800-1,200 at VW dealers due to partial AdBlue tank dropping. Some owners experience multiple sensor and heater failures across ownership. Always scan for stored fault codes related to P22A7, P11D0, or AdBlue system codes.

The 12-inch and 15-inch Innovision Cockpit displays on Mk3 Touareg suffer well-documented software bugs, particularly on early production (2019 to mid-2020). Screens go blank while driving, freeze, or fail to wake from sleep. VW released several software updates and an upgraded internal cable in late 2020 to address the issue. Owner workaround: hold the volume knob for 10-15 seconds to force a hard reset. Most cases are fixable with a free dealer software update, but if hardware (display unit or cable harness) needs replacing, costs run €500-1,200. Verify any 2019-early 2020 car has had the latest software and cable update applied before purchase.

Carried over from the Mk2, the 3.0 V6 TDI continues to have a coolant leak pattern from multiple sources in the engine valley. The vacuum-controlled coolant valve behind the oil cooler is the most common culprit, with the EGR cooler itself a secondary failure. Symptoms are gradual coolant loss (often less than a litre per month) with no visible external leak. If left unchecked, a failed EGR cooler can allow coolant into cylinders, risking hydro-lock. Repair is labor-intensive (8-10 hours) as the engine valley must be fully accessed. Parts cost €400-600, but total labor-inclusive cost runs €1,500-2,500 at independent specialists, up to €2,800 at VW dealers.

The 3.0 V6 TDI uses chains rather than belts. The EA897 evo (Mk3) iteration is improved over earlier versions with a simplified two-chain arrangement, and reports of chain failure are less common than on Mk2 cars. However, the hydraulic tensioner can still lose pressure over time, particularly with stretched oil-change intervals or wrong oil grade. Symptoms begin with a brief rattle on cold start that fades within seconds. Repair requires removal of the front of the engine and the gearbox in the worst case, making it labor-intensive (12-15 hours). Total cost ranges from €1,800 at an independent specialist to €3,800 at a VW dealer. Risk is lower on Mk3 than Mk2, but still worth listening for.

The two-piece propshaft uses a centre support bearing carried over from the Mk2, and it wears similarly over time. Symptoms include vibration through the floor and steering wheel at 80-120 km/h, plus an intermittent whining sound from the gearbox area. VW dealers typically quote €800-1,000 for a new complete shaft as the bearing is not officially sold separately. Specialist propshaft repair companies can replace just the bearing for €200-400. Aftermarket upgraded carriers from Darkside Developments or similar specialists are €150-250. An independent garage can fit a replacement bearing for €150-300 total.

Like all modern diesels, the Touareg 3.0 TDI relies on periodic passive regeneration of the DPF at sustained highway speeds. City-only or short-trip use prevents this, leading to soot accumulation. When soot loading exceeds 75%, a forced regeneration via diagnostic tool may still clear it (€50-100). Beyond this, professional chemical cleaning costs €300-500, or replacement is €800-1,500 for aftermarket, up to €2,500 for OEM. Ash builds up permanently regardless and eventually requires DPF replacement after roughly 200,000-250,000 km. One highway drive of at least one hour every few weeks significantly extends DPF life.

The 3.0 V6 TDI common-rail injectors operate at extreme pressures and can fail over time. Symptoms include rough running at idle, smoke under load, and DTCs related to fuel pressure or specific cylinder injection. Mk3 cars have been more reliable than Mk2 in this respect due to improved injectors, but failures still occur after 150,000+ km, especially with cheap or contaminated fuel. A single OEM injector runs €350-500 plus labor; replacing all six is around €2,500-3,500 at VW dealers. Independent diesel specialists can rebuild or replace individual injectors for €200-400 each. Always have a fuel system pressure test as part of pre-purchase inspection.
