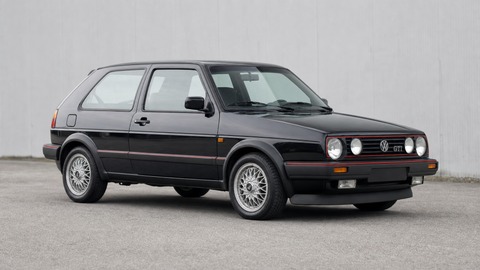

Volkswagen Golf 1.8 GTI 16V Mk2

All surviving Mk2 GTIs are now 34-40 years old, and rust is by far the biggest ownership concern. The Mk2 was partially galvanized, which is better than the Mk1 but does not prevent corrosion after this many decades. Critical areas include inner and outer sills (often hidden behind plastic GTI arch trim), floor pans (especially around the chassis rails either side of the transmission tunnel), jacking point stumps, A-pillar bases, door bottoms, scuttle panel (between windscreen and bonnet), rear panel seams, and the tailgate handle area. Water ingress through deteriorated door membranes accelerates floor rot. Sill repair panels cost around €40-60 per section, but professional welding and painting for a pair of sills runs €800-1,500. Floor pan repairs add €500-1,000 per side. Severely rotten cars requiring full structural metalwork can exceed €5,000. Always inspect with the car on a lift and plastic trim removed.

The 16V head is more highly stressed than the 8V and its valve guides tend to wear somewhat earlier. Blue smoke on startup indicates worn valve stem seals; smoke on the overrun points to worn valve guides themselves. If smoke appears under acceleration, the bores may be beyond tolerance, requiring a more extensive rebuild. A 16V cylinder head rebuild with new valve guides, stem seals, and a skim typically costs €1,000-1,500 at a specialist machine shop plus fitting labor. If bore wear is present, a full engine rebuild can reach €2,000-2,500. The 16V is generally quoted at 240,000 km (150,000 miles) before major engine work, compared to roughly 320,000 km for the 8V.

All European Mk2 GTI 16V models use K-Jetronic (CIS) mechanical fuel injection, which is more complex and specialist-dependent than the Digifant electronic system found on later 8V models. Common problems include a clogged metering head causing uneven fuel distribution, sticky airbox flaps, fuel accumulator failure causing hard hot starts, warm-up regulator (WUR) deterioration causing poor cold running, and system pressure loss from aged rubber hoses. The in-tank fuel pump and the main pump (mounted ahead of the rear wheel) both deteriorate. The main pump is expensive to replace and the retaining ring can seize, complicating the job. A full K-Jetronic system overhaul with new fuel accumulator, WUR, pressure regulator, and hoses runs €800-1,500 at a specialist. Individual component repairs range from €300-600. Finding a mechanic experienced with K-Jetronic is essential.

At 34-40 years old, the Mk2's wiring loom is well past its design life. Insulation becomes brittle and cracks, fuse box connectors develop corrosion, and solder joints on the instrument cluster and ECU crack from decades of thermal cycling. Common symptoms include intermittent gauge failures, dead heater blower speeds (thermal fuse on resistor pack), and rear wiper seizure. Connectors on the gearbox side of the engine bay are particularly vulnerable to corrosion. On the 16V, poor earth connections on the cylinder head can upset the K-Jetronic control system. Replacing individual circuits or repairing solder joints runs €200-600 at a specialist. A partial wiring loom replacement, if needed, can reach €800-1,000.

The 020 five-speed manual gearbox used in the Mk2 GTI is generally strong, but second gear synchromesh wear is well documented. The higher power of the 16V and the tendency for owners to extract more from the engine means 16V gearboxes can wear slightly faster than 8V units. German sources note that the differential rivets in 16V gearboxes can also fail under hard driving. The symptom is a crunch when engaging second gear, most noticeable when cold. Many owners find the wear stabilizes and remains livable for years. A professional gearbox rebuild costs €800-1,500. Good used 020 gearboxes from a 16V donor are available for €300-500 and can be fitted in a day.

The idle stabilization valve (ISV) on the 16V is responsible for maintaining a steady idle. Over time, carbon and dirt cause it to stick. Cleaning with petrol (not brake cleaner, which can damage internal seals) often restores function. A replacement ISV costs around €80-150. The rubber vacuum hoses throughout the intake system harden and crack with age, admitting unmetered air. The intake boot between the airflow meter and throttle body is a common failure point (€30-50). If the ISV, intake boot, and vacuum hoses are all addressed together at a workshop, expect €200-400.

The Mk2 GTI's rear disc brake calipers are prone to seizing, particularly the handbrake mechanism within the caliper body. The brake compensator valve can also seize. Symptoms include a weak or ineffective handbrake, uneven rear brake wear, and pulling under braking. Caliper rebuild kits cost around €15 per side, and refurbished replacement calipers are €80-100 each. Mk3 or Mk4 Golf rear calipers are a direct-fit upgrade that resists seizing better. A complete rear brake overhaul with rebuilt or replacement calipers runs €200-500 including labor.

The 16V engine is less tolerant of overheating than the 8V. The original oil/water heat exchanger is considered somewhat undersized for spirited driving. After 30+ years, the radiator core is silted and partially blocked, the water pump bearings wear, and the thermostat can stick open or closed. If overheating occurs and goes unaddressed, the aluminium 16V head can warp, leading to head gasket failure. A full cooling system refresh (radiator, water pump, thermostat, hoses, and coolant) costs €300-500 for parts plus €200-300 labor. If the head has warped from prior overheating, add €800-1,200 for head work.
