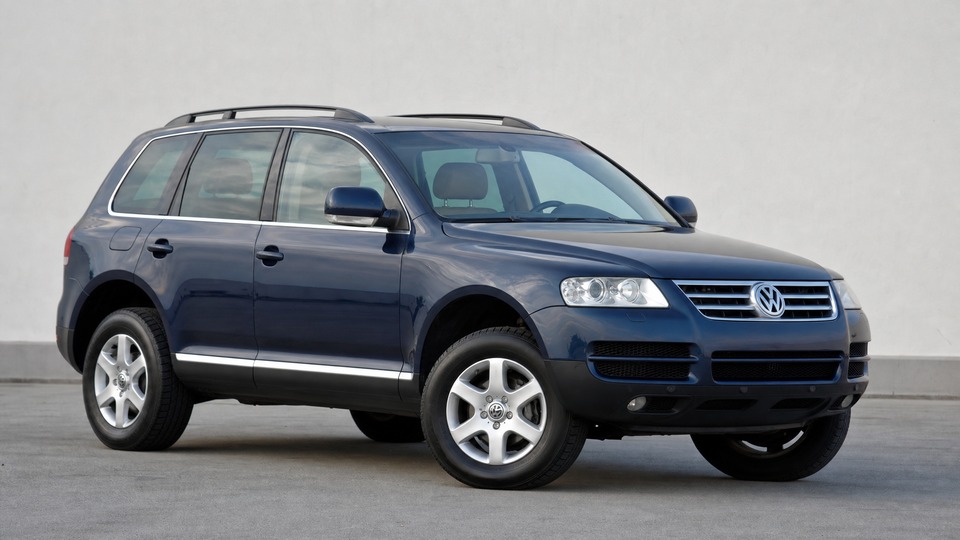

Volkswagen Touareg 3.2 V6 Mk1

The 3.2 VR6 has its timing chain at the rear of the engine, between the engine and transmission. This means replacement requires either dropping the engine or separating the engine from the gearbox, both of which are major undertakings. VW's chain supplier reportedly had manufacturing quality issues that led to premature chain link wear. Symptoms include a rattling noise on cold start that persists for several seconds, rough idle, or misfires. Timing chain stretch typically occurs between 120,000 and 200,000 km, though some engines run well beyond this. Not all 3.2 VR6 engines suffer from this issue; many reach high mileage without chain problems. When replacement is needed, a full kit (chain, guides, tensioner, sprockets) costs approximately €600-800 in parts, but labor runs €2,000-4,000 due to the engine removal requirement. VW dealers have quoted up to €5,000 for the complete job. Specialist shops with Touareg experience can sometimes manage for €2,500-3,500.

The Touareg 7L uses the same air suspension system as the Porsche Cayenne and Audi Q7. The rubber air spring bladders develop cracks over time, particularly in cold climates, causing slow air leaks. When a strut leaks, the compressor runs overtime to compensate, eventually overheating and failing. Symptoms include the vehicle sitting lower on one corner after being parked overnight, or suspension warning lights. A single OEM air strut costs €800-1,200, while aftermarket alternatives from Arnott or Aerosus are available for €250-500 each. The compressor typically costs €300-500 for aftermarket or €600-900 for OEM, plus €200-300 labor. Some owners convert to conventional coil springs using conversion kits (€700-1,200 for all four corners), which eliminates air suspension problems permanently but removes ride height adjustment. Air suspension issues commonly appear after 80,000-120,000 km or after 8-10 years, whichever comes first.

The Aisin 09D (TR-60SN) 6-speed automatic is generally robust, but the valve body is the known weak point. Internal channels wear over time and the solenoids lose precision, causing pressure regulation issues. Common symptoms include a harsh 4-5 upshift clunk, flare shifting (RPM flares between gears), and delayed engagement when selecting Drive or Reverse from Park. This is most common on 2003-2005 models but can affect any 7L Touareg. A complete solenoid kit costs approximately €300, while a rebuilt valve body runs €500-700. A new OEM valve body from VW costs €1,200-1,500. Total repair including labor typically ranges from €800 at a transmission specialist to €2,500 at a VW dealer. Despite VW's claim that the Aisin 09D is 'filled for life', Aisin recommends fluid and filter changes every 100,000 km or 6 years. Dark, burnt-smelling fluid indicates neglect. Regular fluid changes significantly delay valve body wear.

This is one of the most common Touareg 7L issues regardless of engine variant. The rubber centre bearing support on the propshaft cracks and tears over time, initially causing a vibration felt through the floor at 80-120 km/h that gradually worsens into audible clunking or droning. VW dealers typically replace the entire propshaft assembly at €800-1,000, but specialist propshaft companies can replace just the bearing for €200-400 including collection and return of the shaft. Aftermarket upgraded bearing carriers with heavier-duty rubber mounts are available and strongly recommended over OEM replacements. Independent garages can fit a replacement bearing for as little as €300 total. The centre bearing typically needs replacement every 80,000-120,000 km. If the previous owner has not documented any propshaft work, budget for this repair immediately.

The transfer case stepper motor controls the torque split between front and rear axles. On early models (2003-2005), the motor was prone to sticking or failing outright. Symptoms include the 'System Fault Workshop' message on the dashboard, drivetrain binding on tight turns at low speed, and a parasitic battery drain that can flatten the battery within days. VW addressed this with updated hardware (part number ending in suffix C) and a software update that was part of a service campaign on 2004-2005 models. The motor itself is easy to replace (bolts onto the outside of the transfer case), but the transfer case software must be updated to the latest version to complete the repair. Part cost is €150-300, with labor at €150-500 depending on whether software coding is needed. On 2006+ models, this issue is largely resolved.

The 3.2 VR6 has six ignition coils, and over time the coil housings develop cracks from repeated heat cycling. This causes intermittent misfires, rough idle, and check engine lights. The coil pack connectors are also known to become brittle from engine heat and break when serviced, compounding the issue. Individual coils cost €20-40 each (aftermarket) or €50-80 each (OEM). All six should be replaced together along with spark plugs for approximately €200-400 in parts. Labor is straightforward at 1-2 hours. If misfires are ignored, they can damage the catalytic converters, turning a €300 repair into a €1,500+ problem.

The front differential can develop a whining noise, typically at specific speed ranges (80-110 km/h), caused by worn pinion bearings. VW does not sell individual bearings separately, so their solution is full differential replacement at €2,000-2,500 or more including labor. However, specialist differential shops can replace just the bearings for €800-1,500, which requires dropping the front subframe. A slight differential whine at certain speeds is considered normal on the Touareg platform and should only be addressed if it worsens noticeably. Check the differential oil for metal shavings to confirm bearing wear versus normal noise.

The secondary air injection system pumps fresh air into the exhaust during cold starts for emissions compliance. Common failures include the air pump itself seizing, vacuum hoses cracking, combi valve diaphragms deteriorating, and the secondary air injection ports in the cylinder head clogging with carbon. Fault codes P0491 and P0492 (insufficient flow Bank 1 and Bank 2) are the typical error codes. The air pump costs €150-250, combi valves €50-100 each, and vacuum hoses are inexpensive. Total repair including diagnosis and labor runs €200-600. This system does not affect driveability or engine longevity, only emissions compliance and cold-start emissions control.
