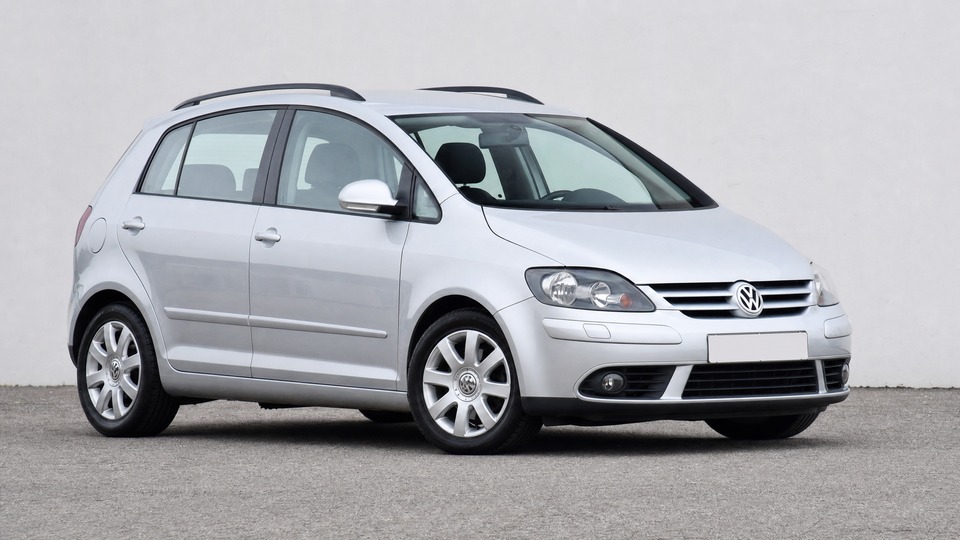

Volkswagen Golf Plus 1.9 TDI

The BXE and BLS engine codes (fitted from mid-2006 onwards) use lighter connecting rods with thinner bearing shells compared to the earlier BKC variant. When bearings wear, the upper shell can seize to the crankshaft and send the connecting rod through the block. Cylinder 3 is most vulnerable due to the cooling and oiling layout. Most documented failures occur between 80,000-150,000 km, though it remains a statistically rare event relative to the millions of engines produced. Extended oil change intervals (VW longlife service at 30,000 km) dramatically increase the risk. Prevention: change oil every 10,000-15,000 km with quality 5W-30, and have a specialist inspect or preventively replace the bearing shells around 150,000 km (parts cost under €50, labor 3-4 hours). If the engine fails, a reconditioned replacement typically costs €1,800-3,000 plus installation. The older BKC engine (2005-2006 Golf Plus models) does not suffer from this issue and is the safer choice.

The EGR valve recirculates exhaust gases back into the intake manifold. Over time, carbon and soot deposits restrict flow, especially on cars driven predominantly on short trips where the engine rarely reaches full operating temperature. Symptoms include rough idle, hesitation under acceleration, and engine management light. Cleaning costs around €100-200 at an independent workshop. If the valve needs replacing, an aftermarket unit runs €200-350 plus labor. The EGR on the 1.9 TDI is positioned behind the engine near the firewall, making access difficult and increasing labor time. Regular motorway driving helps keep the valve cleaner.

The dual mass flywheel (DMF) absorbs torsional vibrations from the diesel engine. With frequent stop-start driving or high mileage, the internal springs weaken or break. Symptoms include a noticeable rattle at idle (especially with the clutch pedal depressed), juddering when pulling away in first gear, and vibration through the drivetrain. The DMF is typically replaced together with the clutch to save on labor, costing €800-1,500 depending on parts choice. Some owners opt for a solid flywheel conversion kit (around €400-600) which eliminates the issue permanently but makes the car noisier at idle. Most DMF failures occur between 120,000-200,000 km. Cars used primarily for motorway cruising can see the DMF last well beyond 200,000 km.

The 1.9 TDI uses a BorgWarner BV39 variable-geometry turbocharger where movable vanes adjust boost pressure. Carbon deposits from exhaust gases cause these vanes to stick, resulting in overboosting, underboosting, or inconsistent power delivery. Symptoms include intermittent power loss, the car entering limp mode, and an EPC warning light. Cars driven gently or only on short trips are most susceptible. If only the actuator is faulty, replacement costs €300-500. If the turbo internals are damaged (worn shaft, oil in intercooler pipes), a reconditioned turbo runs €500-900 plus €300-500 labor. Driving the car hard periodically on motorway runs helps keep the vanes free.

This is one of the most common PQ35 platform issues, shared with the Golf Mk5. VW fitted a foam pad between the front wing and the wheel arch liner that absorbs and holds moisture against the wing panel. Over time, the wing rusts from the inside out. By the time paint bubbling appears on the outside, the damage is well advanced. Both front wings are typically affected. Replacement wings cost €80-150 each (aftermarket) plus €100-200 per side for paint and fitting. VW modified the foam pad design from June 2006 production, but the issue persists on earlier cars. Nearly all surviving Golf Plus models over 15 years old show this to some degree.

The PD unit injectors are wired via a loom that runs through the cylinder head. Over time, heat exposure breaks down the insulation, leading to short circuits between injector circuits. Symptoms include rough idle, stuttering on acceleration, black smoke, and diagnostic codes for injector circuit faults. The replacement loom costs €50-80 for aftermarket parts and takes 1-2 hours to install. If an individual injector has failed, replacement costs €200-400 per injector. Cylinder 2 typically fails first. On high-mileage cars (150,000+ km), replacing the loom preventively during other engine work is a worthwhile precaution.

The Golf Plus shares the Mk5 Golf's water leak paths. Door seals deteriorate with age, allowing rainwater into the footwells. The drain holes at the bottom of the doors can block, and the speaker seals behind the door cards can fail. The bonnet release cable grommet is another common entry point. Water-soaked carpets damage the wiring loom underneath and cause electrical faults. Replacing door seals costs €30-80 per door, and clearing drains is usually free. If water damage has already affected wiring, repair costs can reach €300-400. Always check under all carpets for dampness before buying.

The ATE MK60 ABS pump module fitted to all PQ35 platform cars is a known weak point. A thermomechanical overload in the control unit causes the earth connection to interrupt. When it fails, the ESP light illuminates permanently and the ESP OFF switch stays lit, though standard braking remains functional. Cars built between May 2008 and August 2010 are particularly affected, and a recall (45F2) was issued. A new module from VW costs €800+, but specialist ECU repair services can rebuild the unit for €200-300 with a lifetime warranty. This is the recommended repair route.

The electric window regulators use plastic guide clips that become brittle with age. When they fail, the window drops into the door cavity or moves erratically. The driver's side is most commonly affected due to more frequent use. Aftermarket replacement regulators cost €40-80 plus 1-2 hours of labor. This is a common issue across all PQ35 platform cars.
