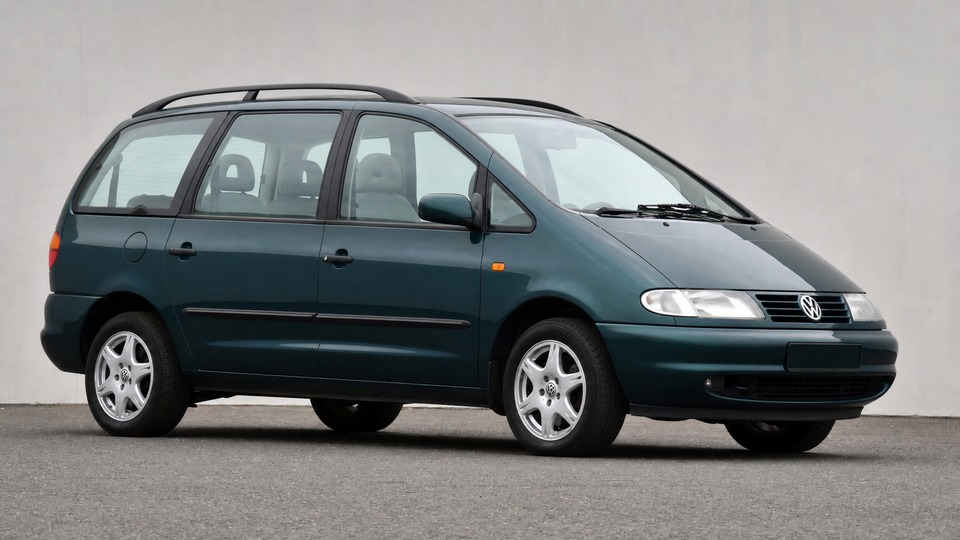

Volkswagen Sharan 2.8 VR6 Mk1

The VR6 uses a timing chain rather than a belt, which in theory should last the engine's life. In practice, the chain stretches and the plastic chain guides become brittle with age. On the 12-valve AAA engine, the chain is at the front and more accessible. On the 24-valve AYL, access is more difficult. Symptoms start with a brief rattle on cold start (first 10-30 seconds) that goes away once oil pressure builds. If the rattle persists after warmup or lasts more than 30 seconds on cold start, replacement is urgent. A jumped chain can cause piston-to-valve contact and destroy the engine. The repair involves replacing the chain, tensioner, guides, and sprockets. Parts cost approximately 300-500 euros, but labor is extensive (10-15 hours) because of the VR6's compact packaging in the Sharan engine bay. Independent specialists typically quote 1,200-1,800 euros for the complete job. Dealer quotes can reach 2,500 euros. VW released updated tensioner parts that are more durable than the originals.

The VR6 runs hotter than typical inline-four engines due to its compact cylinder arrangement. Early water pumps used a plastic impeller that can strip or crack, reducing coolant circulation and causing localized overheating without an obvious temperature spike. Replacement water pump costs 80-150 euros for the part, plus 2-4 hours labor. Coolant hoses become brittle after 15+ years and can crack without warning, particularly the hard-to-see hoses at the rear of the engine. A coolant hose set costs 100-200 euros. The thermostat housing is another common failure point, often leaking around its gasket. Budget 100-200 euros for thermostat replacement. On a 20+ year old VR6, a preventive cooling system overhaul (new pump, hoses, thermostat, coolant flush) for 600-800 euros is a sensible investment. Ignoring overheating risks head gasket failure, which is a far more expensive repair.

Oil leaks from various gaskets are almost universal on high-mileage VR6 engines. The valve cover gasket is the most common source, visible as oil weeping along the top of the engine. The oil cooler gasket and oil filter housing are also frequent leak points. The oil pan gasket can seep over time, particularly if it was not resealed with the correct VW sealant. Individual gasket replacements are inexpensive (20-50 euros per gasket), but labor adds up because each location requires partial disassembly. A complete gasket refresh (valve cover + oil cooler + oil pan) at an independent shop typically costs 400-800 euros including parts and labor. Minor seepage that leaves a few drops on the ground is cosmetic, but active dripping leads to low oil levels and potential engine damage if not monitored.

The 4-speed 01V automatic gearbox used with the VR6 can develop internal solenoid failures, causing the gearbox to refuse to shift into certain gears or to get stuck in limp mode (typically 3rd gear only). The gearbox control unit can also fail, presenting with similar symptoms. A common initial fix is a transmission fluid change with VW-approved ATF, which resolves some shifting hesitation. Control unit repair by a transmission specialist costs 400-600 euros. If internal solenoids or valve body components have failed, repairs run 800-1,500 euros. Complete gearbox rebuild or replacement costs 1,800-2,500 euros. Manual gearbox cars avoid these issues entirely and are generally the more reliable choice. Regular ATF fluid changes (every 60,000 km) significantly extend the automatic's life, despite VW marketing it as a sealed unit.

The Mk1 Sharan has a well-documented corrosion problem. The production process provided inadequate protection compared to competitors like the Ford Galaxy from the same era. Rust commonly attacks the sills, inner wheel arches, subframe, suspension mounting points, and the area around the fuel tank. In northern European countries where road salt is used, structural corrosion can make the car uneconomical to repair or even unsafe. A professional inspection of the underside is essential before purchase. Minor surface treatment and cavity wax costs 300-500 euros. Structural welding repairs to sills or mounting points run 800-2,000 euros depending on severity. If the subframe is holed through, the car may fail safety inspections (TUV/MOT) and repair costs can exceed the vehicle's value. This is the single biggest reason Mk1 Sharans are scrapped.

The 12-valve VR6 uses a single distributor-style coil pack with six outputs. The plastic casing develops cracks over time, allowing moisture in and causing arcing between terminals. This produces intermittent misfires, rough idle, and loss of power. The coil pack costs 80-150 euros. The 24-valve AYL engine uses individual coils per cylinder (coil-on-plug design), which are more reliable individually but all six should be replaced together for consistent performance (60-100 euros per coil). Including labor, a full set replacement costs 200-400 euros. This is a well-understood repair and most VW specialists can diagnose and fix it within an hour.

The Sharan Mk1's air conditioning system is widely reported as one of the car's most troublesome and expensive features. The compressor clutch can fail, preventing the system from engaging. Internal compressor damage sends metal debris through the entire system, contaminating the condenser and expansion valve. A new compressor costs 300-500 euros, but if contamination has spread, the condenser and receiver-drier also need replacement, pushing total costs to 800-1,200 euros at a specialist. The rear AC pipes (on models with rear climate control) are also vulnerable to corrosion. AC regas alone costs 80-120 euros. Many owners of older Mk1 Sharans simply live without air conditioning rather than investing in repairs on a vehicle of diminishing value.

Head gasket failure on the VR6 is not a design flaw but a consequence of cooling system neglect. The VR6's compact cylinder arrangement creates uneven thermal stress across the single head. If the water pump fails silently or a hose bursts and the engine overheats, the head can warp. Symptoms include white exhaust smoke, coolant loss with no visible leak, milky oil, or bubbles in the coolant reservoir. Repair requires head removal, surface machining, and a new gasket set. Parts cost 200-400 euros, but labor is 12-16 hours due to the engine bay packaging. Total repair costs 1,500-3,000 euros. Prevention is straightforward: maintain the cooling system, replace the water pump proactively, and never ignore temperature warnings.
