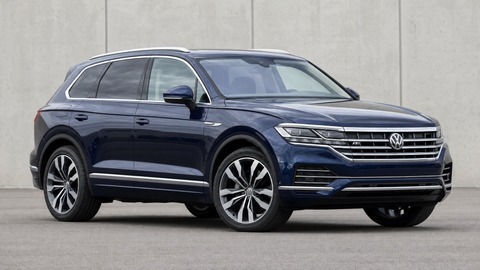

Volkswagen Touareg Mk3 3.0 TSI Reliability

Common Problems

EA839 water pump internal leak

€1,500 - 2,5001 of 6

Factory water pump design leaks coolant internally, typically between 80,000-130,000 km · more· less

The EA839 3.0 TSI shares a known water pump weakness with all Audi 2.9T and 3.0T variants on this engine family. The original 4-bolt-pulley pump leaks internally, allowing coolant to migrate into the vacuum system and engine. Symptoms include unexplained coolant loss, sweet smell, and eventually overheating warnings. VW/Audi released a revised 6-bolt-pulley pump that fixes the design flaw. Replacement requires significant disassembly to access the pump in the engine valley. Parts run €350-500, total labor-inclusive cost €1,500-2,500 at independent specialists. When replacing, the thermostat and vacuum solenoid valve should be done at the same time to avoid repeat labor.

Air suspension component failure

€800 - 2,5002 of 6

Air struts, compressor or valve block fail, typically after 100,000 km · more· less

Most Touareg Mk3 models with R-Line or Elegance trim have optional or standard air suspension. Components that fail include the air struts (rubber bladders develop leaks at the crimp), the compressor (burns out when overworking to compensate for leaks), height sensors, and the distribution valve block. A single OEM air strut runs €700-1,100 plus labor; aftermarket alternatives from Arnott or Aerosus are €350-500. The compressor fitted at independent shops costs €500-800. If the car sags overnight or a 'running gear fault' warning appears, fix the leak quickly before it kills the compressor too. Cold climates accelerate rubber strut deterioration.

Infotainment system glitches and crashes

€0 - 1,5003 of 6

MIB3 infotainment freezes, reboots randomly or fails to start · more· less

The Touareg Mk3 uses the MIB3 infotainment system with the large dual-screen 'Innovision Cockpit' on higher trims. Owners commonly report freezes, random reboots while driving, slow boot times, and intermittent Apple CarPlay/Android Auto disconnections. Most issues are software-related and a free dealer software update may resolve them. In rare cases, the head unit module itself fails and requires replacement (€800-1,500 for the unit). The MIB3 was also subject to a class-action investigation in some markets due to widespread freezing complaints. Check that the system has the latest software version before purchase.

Turbocharger actuator/wastegate problems

€600 - 2,0004 of 6

Electronic wastegate actuator sticks or fails, causing limp mode after 100,000 km · more· less

The EA839 uses an electronic wastegate actuator on its single turbocharger. Carbon buildup or actuator motor wear can cause stuck or erratic boost control, triggering limp mode and EPC warnings. Diagnostic codes typically include P0299 (underboost) or P0234 (overboost). Actuator-only replacement is possible at independent specialists for €600-900. If the turbo internals are damaged, full turbo replacement runs €1,500-2,000 at independents, more at a VW dealer. Carbon cleaning every 80,000-100,000 km helps prevent this issue on direct-injection engines.

Carbon buildup on intake valves

€400 - 9005 of 6

Direct-injection engine suffers intake valve carbon buildup, typically by 100,000 km · more· less

Like all EA839 variants and most VAG direct-injection engines, the 3.0 TSI suffers carbon buildup on the intake valves because fuel never washes them. Symptoms include rough idle, misfires, reduced power, and worse fuel economy. Walnut blasting (the standard cleaning method) runs €400-700 at independent specialists, up to €900 at VW dealers. Most engines need cleaning between 80,000-120,000 km. Some owners do it preventively at 100,000 km regardless of symptoms. Premium fuel and avoiding excessive short-trip driving slow the buildup.

12V battery drain and electrical glitches

€200 - 6006 of 6

Battery drains within days if car not driven, sometimes triggered by software bugs · more· less

Many Touareg Mk3 owners report parasitic battery drain that flattens the AGM battery within 5-10 days of inactivity. Causes include the front-assist camera not powering down correctly, gateway module software bugs, and aftermarket dashcam wiring. A VW software campaign (90PV) addresses some of these. A replacement AGM battery costs €200-350 plus €50-100 for coding. Owners who park the car for extended periods should use a smart trickle charger. Persistent drain after a new battery indicates a module that needs the software update or replacement.

Refined large SUV, but water pump and air suspension drive most repair costs

The Touareg Mk3 with the 3.0 V6 TSI avoids the emissions complexity of its diesel sibling but inherits the EA839 family's water pump weakness, which is widely reported across all Audi/VW applications of this engine. The ZF 8-speed automatic is reliable with fluid changes. Most major risks become more likely after 100,000 km. Service history showing the revised water pump fitted, plus clean infotainment software, significantly reduces ownership risk. Budget for at least one €2,000+ repair during a 5-year ownership period.

Pre-Purchase Inspection Checklist

General checks

Service history
Complete VW dealer or specialist records essential. Verify oil changes at maximum 15,000 km with correct VW 508.00 specification oil.
Tires
Check tread depth, age (date codes), and uneven wear patterns. Touareg tires are expensive due to SUV sizes (255/55R19 minimum).
Cold start
Must start engine completely cold. Listen for unusual sounds in the first 30 seconds and check for coolant smell from the engine bay.
Test drive
Minimum 30 minutes including highway speeds to verify gearbox shifts, turbo response and air suspension behaviour at speed.

Specific for this vehicle

Verify water pump version (6-bolt revised pulley)
Ask whether the revised EA839 water pump has been fitted. Look for service records showing pump replacement. The new pump has a 6-bolt pulley; the original 4-bolt pump is the failure-prone version.
Check coolant level and look for sweet smell
Low coolant or unexplained loss suggests internal water pump leak. A sweet smell from the engine bay or under the bonnet after a drive is a warning sign.
Test air suspension ride height and leveling
Park on level ground and observe whether all four corners are level. Leave the car overnight and check if it sags. Listen for the compressor running excessively when starting cold.

+ 4 more checksShow less

Test infotainment thoroughly
Reboot the system, test Apple CarPlay/Android Auto, navigation, voice control, all touchscreen menus. Note any lag or freezes. Ask whether the latest MIB3 software update has been applied.
Check for limp mode or EPC warnings on test drive
Drive at varied speeds including full-throttle acceleration. Any limp mode activation, EPC warning, or loss of power indicates turbo or boost control issues.
Scan for stored fault codes with OBDeleven or VCDS
Diagnostic scan reveals pending issues with turbo, fuel pump, gateway module, gearbox adaptations and air suspension. Stored air suspension or boost control codes warrant further investigation.
Inspect 12V battery condition and software status
Check battery age and ask about parasitic drain. Verify whether software campaign 90PV (front-assist camera drain fix) has been applied.

Recalls and Technical Service Bulletins

Steering column connection (May 2018 - January 2019 production) Verify completed

Right rear seat belt buckle (August - October 2018 production) Verify completed

Front-assist camera battery drain software update (campaign 90PV) Verify completed

Various MIB3 infotainment software updates Verify latest version installed

Contact a Volkswagen dealer with the VIN to verify all recalls and software campaigns have been completed. The 90PV software campaign for the front-assist camera battery drain is particularly relevant for cars showing battery drain symptoms.

Warranty Status

Factory warranty (2 years) Expired on 2018-2023 production

Rust perforation warranty (12 years) Still active on all Mk3 models

Paint warranty (3 years) Expired on most cars

All early Touareg Mk3 models are outside their original 2-year factory warranty. Late-production 2024 cars may still be in warranty depending on the registration date. Extended warranty packages are available through VW dealers, but excluded items often include wear parts and electronics — read the fine print carefully.

Sources: Research draws on model-specific owner forums and owner communities, recall information from official authorities, German automotive press, and multiple workshop cost references cross-checked against each other.

This report is for informational purposes only and does not constitute professional advice. Estimates may be inaccurate. Always have a qualified specialist inspect the vehicle before purchase. We accept no liability for decisions made based on this information.
