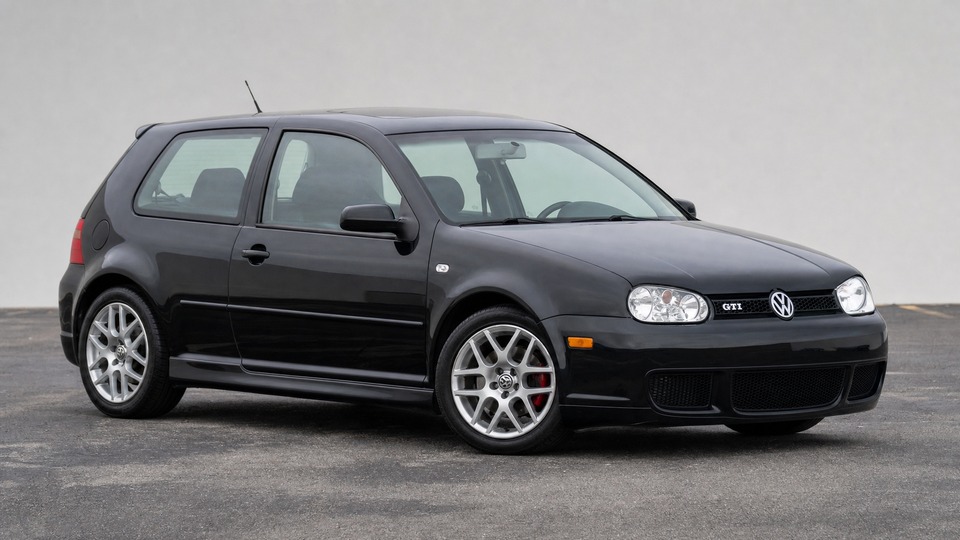

Volkswagen Golf GTI Mk4

This is the single most common 1.8T engine issue. The original ignition coil packs had a high failure rate, prompting Volkswagen to issue a Customer Satisfaction Campaign in 2003 offering free replacement. The problem was so widespread that replacement parts were temporarily in short supply. Symptoms include engine misfires (fault codes P0300-P0304), rough idle, loss of power, and check engine light. Failed coils can also damage the catalytic converter if driven on for too long. A set of four quality coil packs (Bosch or equivalent) costs approximately €80-120, and spark plugs should be replaced at the same time for another €30-50. Labor is minimal as the coils are easily accessible on top of the engine. On a car this age, expect to replace coil packs at least once during ownership, and carry a spare set.

Volkswagen acknowledged this issue and extended the warranty on some models to 8 years in 2004. The 1.8T engine has a relatively small oil capacity, and when combined with extended oil change intervals or incorrect oil specification (non-synthetic), thick carbon deposits accumulate inside the engine. These can block the oil pickup tube screen, restricting oil flow and causing dangerously low oil pressure. The transverse-mounted 1.8T in the Golf is somewhat less affected than the longitudinal version in the Passat/A4 (which had an even smaller oil pan), but the risk is real. If caught early, professional engine flushing and pickup tube cleaning costs approximately €500-800. If ignored until oil starvation causes bearing damage, engine rebuilding or replacement can cost €2,000-3,000. Prevention is straightforward: use full synthetic oil (VW 502.00 or 504.00 spec) and change every 10,000 km or annually, not the extended intervals VW originally recommended.

The KKK K03 (150 hp AGU) and K03S (180 hp AUM/AUQ) turbochargers are generally reliable and many reach 200,000+ km without issues. However, worn turbo shaft seals cause oil to leak into the intake or exhaust, producing blue smoke especially on startup or under boost. Failure is accelerated by oil sludge (starving the turbo bearing of lubrication) and by shutting off the engine immediately after hard driving without a cooldown period. A new replacement K03/K03S turbo costs approximately €400-600 for the unit, with labor adding another €400-600 for removal, installation, and associated gaskets and oil lines. Many owners use the opportunity to upgrade to a K04 turbo for more power, though this requires additional supporting modifications. A rebuilt turbo is available for approximately €300-400 and is a cost-effective alternative.

The 1.8T engine has an extensive network of small-diameter rubber and silicone vacuum hoses that control boost pressure, the diverter valve, PCV system, and various solenoids. After 20+ years, these hoses become hard, cracked, and brittle, leading to vacuum leaks and boost pressure loss. Common symptoms include erratic idle, poor throttle response, P0299 (underboost) codes, and EPC warning light. The hoses under the intake manifold are particularly difficult to inspect and replace. A complete vacuum hose refresh using silicone replacements costs approximately €100-200 in parts. If the leak causes the diverter valve diaphragm to tear (a common consequence), replacing the valve adds another €50-100 for the updated piston-type revision D valve. Labor can be significant if multiple hoses need tracing and replacement, running €200-300 at a garage.

This is a platform-wide Mk4 issue rather than GTI-specific, but it affects virtually every example. The plastic clips holding the window glass to the cable-driven regulator become brittle and break, causing the window to suddenly fall into the door panel. Front doors are most commonly affected. VW's original solution required buying a complete regulator assembly (€100-200 per door), but aftermarket metal clip repair kits are now available for €15-30 and provide a permanent fix. A garage charges approximately €50-80 per door with the metal clip kit. On a car this age, if the windows still work, they have either already been repaired or will fail soon.

The original black-topped coolant temperature sensor failed so frequently that VW released a revised green-topped version (part number 059 919 501A). A faulty CTS causes a wide range of symptoms including extended cranking, cold-start misfires, rich running, poor fuel economy, and inaccurate temperature gauge readings. Mechanics learned to replace the CTS as the first diagnostic step whenever a Mk4 1.8T came in with vague driveability complaints. The part costs approximately €15-25 and can be replaced in under 30 minutes with basic tools. If you buy a Mk4 GTI and it still has the original black sensor, replace it immediately with the green version as preventive maintenance.

Catalytic converter failure on the Mk4 1.8T is often a secondary consequence of other issues: repeated coil pack misfires dump unburnt fuel into the cat, overheating and damaging the catalyst substrate. Running rich due to a failed CTS or MAF sensor also accelerates catalyst degradation. The P0420 code (catalyst efficiency below threshold) is common. A quality aftermarket catalytic converter costs approximately €150-350, while an OEM unit can reach €500-700. Labor for replacement is approximately €150-250. On cars that have had their coil packs and sensors properly maintained, the original catalyst often lasts much longer. Aftermarket catalytic converters may not always pass the stricter Euro 4 emissions tests required for continued registration in some countries.

The Mk4 platform uses a torsion beam rear axle with large rubber bushes pressed into the beam ends. Over time and mileage, these bushes deteriorate, introducing play in the rear suspension. Symptoms include vague handling, a tendency to wander under braking, and clunking noises over bumps and potholes. The original VW design did not make the bushes serviceable — the entire beam had to be replaced. However, aftermarket replacement bushes (including polyurethane upgrades from brands like Powerflex and Whiteline) are now available and can be pressed in after removing the old ones. Bush replacement requires removing the rear beam, pressing out the old bushes, and pressing in new ones, typically costing €200-350 at a specialist. A refurbished beam with new bushes pre-fitted is available for approximately €200-400.
