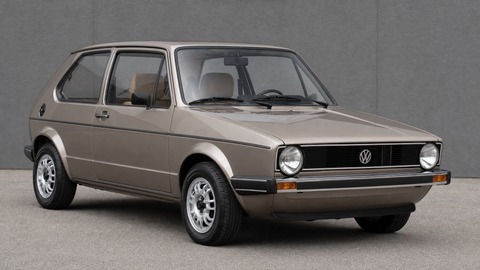

Volkswagen Golf 1.5 D Mk1

The Golf Mk1 had minimal anti-corrosion treatment, especially pre-1980 cars. Common rust areas include the sills and jacking points, chassis legs where they meet the bulkhead, floor pans (particularly around the pedal area), the rear panel and spare wheel well, and the vertical seam where the outer sill meets the floor pan. Front windscreen scuttle panel corrosion is another notorious area that is difficult to repair well. Repair panels are available from specialists like Heritage Parts Centre and ClassicEuroParts, but labor costs for proper welding and painting add up. Minor surface rust on one or two panels can cost around €1,000 to address; extensive structural rot in sills and chassis legs reaches €3,000-5,000 at a specialist bodyshop. Most surviving Mk1s have been through at least one major rust repair.

Corrosion starts where mud and moisture sit on the lip where panels join, particularly at the front wings behind the wheels and the rear arches. The fuel filler neck area is a common rot spot: when the metal crumbles, rust flakes can fall into the fuel tank and contaminate the fuel system, which is especially problematic for the mechanical injection pump with its fine tolerances. Door bottoms also rot from the inside out where drain holes block. Replacement wings and repair panels are available, but fitting and painting adds to cost. A single wing replacement including paint costs around €400-600; addressing all four arches and doors can reach €1,500-2,000. Coating the insides of wings with protective wax is the standard preventive measure.

The Bosch mechanical injection pump is generally long-lived, but after 40+ years the rubber seals and diaphragms harden and crack, causing diesel leaks. The fuel lift pump diaphragm is a common failure point: when it ruptures, diesel can mix with engine oil (watch for a mysteriously rising oil level). A small weep hole on the pump body will show diesel dripping if the diaphragm has failed. Seal kits are available for around €40-80, but the pump needs to be removed and disassembled, which requires specialist knowledge. A professional injection pump rebuild at a diesel specialist costs €400-800 depending on the extent of wear. Full pump replacement with a reconditioned unit runs €600-1,200. The pump's internal tolerances are extremely fine, so contaminated fuel (from a rusty tank, for example) can cause accelerated wear.

Forum owners widely report that the 1.5-litre CK diesel block is more susceptible to cracking than the later 1.6 CR/JK unit. Cracks typically develop between cylinder bores or between valve seats and prechamber openings. Small cracks between valve seats in the cylinder head are actually considered normal on these diesel heads and are acceptable if under 0.5 mm wide and not extending into the water jacket. However, cracks between the precup and valve seat that reach the water jacket are serious, as coolant can enter the combustion chamber. A cracked head can sometimes be repaired if the crack is minor, but a cracked block usually means sourcing a replacement. Many owners recommend swapping to the later 1.6 diesel block (which shares the same mounting points) if the 1.5 block fails, as parts interchange and the 1.6 offers slightly more torque.

The 1.5 diesel runs higher compression than petrol variants, putting more stress on the head gasket. Overheating from a stuck thermostat, blocked radiator, or failed water pump accelerates failure. Early 1.5 diesels used a fiber gasket that was less durable; the metal head gasket from the 1.9-litre VW diesel (which fits the 1.5/1.6) is widely recommended as a permanent upgrade. Symptoms include white exhaust smoke, coolant loss, and creamy residue under the oil cap. The gasket itself costs around €30-50, head skimming adds €40-60, and total repair with labor runs €400-600 at an independent shop. Using head studs instead of the original bolts (a well-known upgrade) provides more even clamping force and helps prevent repeat failure. If the head or block has warped beyond machining limits, costs rise significantly.

The glow plug system is essential for cold starting. Individual glow plugs burn out over time (testing with a multimeter shows resistance above 5 ohms for a failed plug), and the glow plug relay can develop internal cracked solder joints that cause intermittent failure. On cold mornings below 5 degrees C, a single failed glow plug makes starting noticeably harder; two failed plugs can make the engine nearly impossible to start. The relay on early cars can stay engaged for up to 45 seconds on very cold mornings. Glow plugs cost €15-25 each (set of four: €60-100), and a replacement relay is around €30-50. The glow plug wiring harness can also deteriorate; an upgraded harness is available from specialists for around €40-60. Total repair for the complete system rarely exceeds €400.

After more than four decades, the original wiring insulation becomes brittle and prone to shorting. The diesel has a simpler harness than the petrol (fewer sensors: just coolant temperature, oil pressure, coolant level, glow plugs, alternator exciter, and one injection pump wire), but age still takes its toll. The early-style fuse box under the left dashboard is a known weak point: printed circuits inside can fail, and corroded contacts cause intermittent faults. Earth connections on the chassis corrode, causing seemingly random electrical issues. Replacing individual circuits costs €150-300, while a complete replacement loom runs €350-700 for the harness plus €200-500 in labor.

The 4-speed manual gearbox (or optional 5-speed on some markets) is fundamentally robust, but synchromesh wear is inevitable after decades. Second gear is the first to show wear, producing a crunch when shifting quickly from first to second. The low power output of the 1.5 diesel means the gearbox receives less stress than in the petrol variants, so this issue typically appears later. Switching to synthetic gearbox oil can slow progression. A rebuild with new synchro rings costs €400-600, while sourcing a used gearbox in better condition typically costs €200-400 including fitting.
