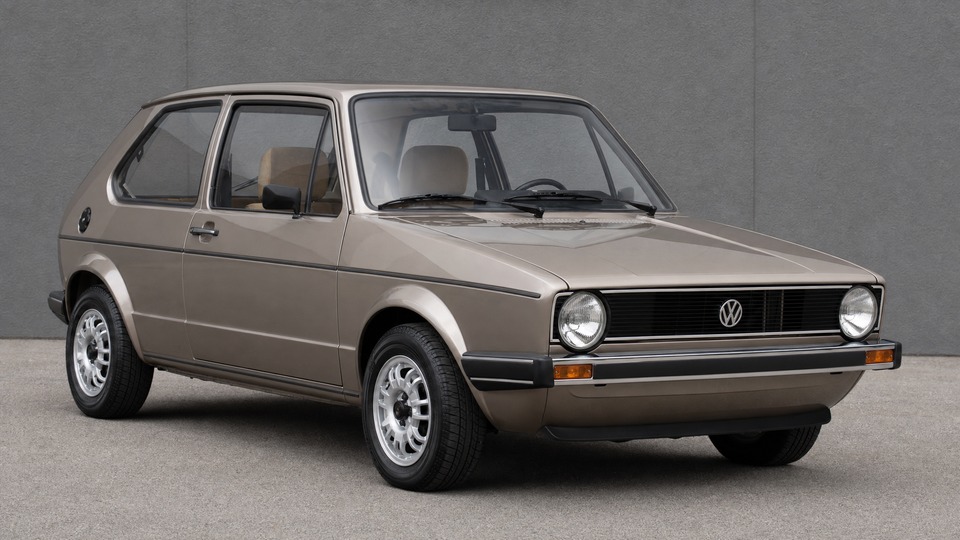

Volkswagen Golf 1.6 Mk1

The Golf Mk1 had minimal anti-corrosion treatment from the factory, especially pre-1980 cars which received virtually no protection. Common rust areas include the sills, jacking points, chassis legs where they meet the bulkhead, floor pans, and the rear panel/spare wheel well. The vertical seam where the outer sill meets the floor pan is particularly vulnerable. Pre-1980 cars are worst affected, but even later models (which received improved rustproofing from August 1980) are now 40+ years old and highly susceptible. Repair involves cutting out rusted sections and welding in new metal. Repair panels are available from specialists like Heritage Parts Centre, but labor costs for proper welding and painting add up quickly. Minor surface rust on one or two panels might cost around €1,000 to address properly; extensive structural rot in sills and chassis legs can easily reach €3,000-5,000 at a specialist bodyshop. Most surviving Mk1s have already been through at least one round of rust repair.

Corrosion typically starts where mud and moisture sit on the lip where two panels join, particularly at the front wings behind the wheels and the rear wheel arches. The fuel filler neck area is another notorious rust spot, as is the bottom edge of doors. Replacement wings and repair panels are available from classic VW suppliers in Europe, but fitting and painting adds to the cost. A single wing replacement including paint might cost €400-600; addressing all four arches and doors can reach €1,500-2,000. Coating the insides of wings with protective wax is the standard preventive measure.

Carbureted 1.6 models (most non-GTI variants) use either Pierburg 2E2 or Solex carburetors, both of which deteriorate with age. Common symptoms include fast idle, stalling when cold, engine running on after turning off the ignition, and excessive fuel consumption. The Pierburg 2E2 is particularly problematic: blocked coolant channels in the automatic choke cause poor cold-running behavior, the needle valve wears causing fuel overflow, and the accelerator pump nozzle can lose its internal ball bearing. Genuine rebuild parts for the 2E2 are increasingly difficult to source. Many owners opt for a Weber 32/36 DGEV conversion kit (€250-350 including manifold adapter), which is simpler and more reliable than restoring the original carburetor. A professional rebuild of a Pierburg 2E2 costs €300-500, while a full replacement with a new-old-stock unit (if available) can reach €600-800.

After four decades, the original wiring insulation becomes brittle, cracked, and prone to shorting. This affects everything from lighting to ignition to fuel pump relay circuits. The fuse box, located under the dashboard on the left side, is particularly problematic: the printed circuits inside the early-style fuse boxes can fail, and decades of amateur repairs with black insulating tape create diagnostic nightmares. Earth connections corrode, causing intermittent faults. Replacing individual circuits or sections costs €200-400 at a specialist. A complete replacement wiring loom from suppliers like Werk34 costs €400-800 for the harness alone, with €300-700 in fitting labor depending on complexity. Used harnesses from donor cars can be sourced for under €100 but come with their own age-related risks.

The 4-speed and 5-speed manual gearboxes are fundamentally tough units, but synchromesh wear is inevitable after decades of use. Second gear is typically the first to go, producing a distinctive crunch when shifting quickly from first to second. Switching to fully synthetic gearbox oil can mask the problem temporarily, but eventually the synchro rings need replacing. A rebuild with new synchro rings, brass ring, and possibly the gear itself costs around €400-600 including parts and labor. Alternatively, sourcing a reconditioned gearbox costs approximately €350-500 including fitting. Complete gearbox failure is rare; this is almost always a gradual wear issue.

The Mk1's conventional ignition system uses contact breaker points (on most variants), a condenser, distributor, and ignition coil. All of these components deteriorate with age. Points and condenser can burn out suddenly, leaving the car stranded. The condenser wire can develop an internal break invisible to the eye. The coil connection can develop surface tracking from moisture, causing misfire. Spark plug leads become brittle and cause intermittent misfires even when relatively new. Individually these are cheap parts (€10-40 each), but diagnosing intermittent ignition faults on a classic car can be time-consuming. Many owners upgrade to an electronic ignition kit (€80-150) which eliminates points and condenser altogether. This is one of the most cost-effective upgrades for reliability.

While head gasket failure is more commonly associated with the smaller 1.1 and 1.3 engines, the 1.6 is not immune, particularly if the cooling system has been neglected. The main cause is overheating from a blocked radiator, failed water pump, or stuck thermostat. The gasket itself is inexpensive (€20-40), and having the head skimmed costs around €30-50. Total repair cost including labor is typically €300-500 at an independent workshop. The 1.6 engine is generally quite tolerant, and this is a rare failure if the cooling system is maintained. Symptoms include white exhaust smoke, coolant loss with no visible leak, and creamy residue under the oil filler cap.
