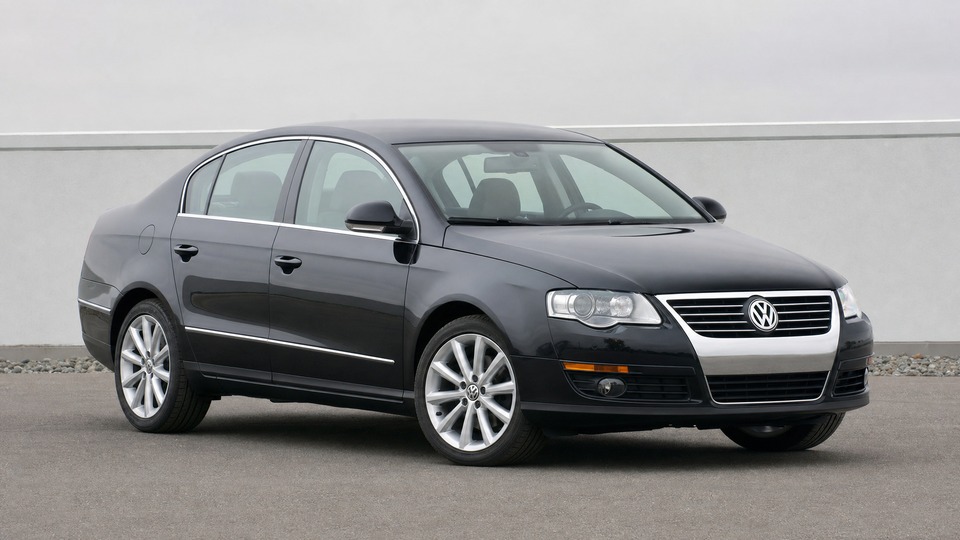

Volkswagen Passat 2.0 FSI B6

The 2.0 FSI was one of VW's earliest mass-market direct injection petrol engines, and carbon buildup on the intake valves is its most characteristic weakness. Because fuel is injected directly into the cylinder rather than over the intake valves, there is no fuel wash to keep the valves clean. Carbon deposits gradually restrict airflow, causing rough idle, misfires (P0300 series codes), power loss, and increased fuel consumption. Symptoms typically become noticeable between 60,000 and 120,000 km. The most effective cleaning method is walnut shell blasting, which requires removing the intake manifold. This costs approximately 400-600 euros at a specialist shop. Chemical cleaning is cheaper (around 200-250 euros) but less effective on heavy deposits. Some owners report needing this done every 50,000-60,000 km. Using premium fuel and avoiding excessive short-trip driving can slow buildup but cannot prevent it.

The 2.0 FSI uses a mechanical high-pressure fuel pump driven by the camshaft via a small metal disc called the cam follower. This follower wears down over time and, if not replaced, allows metal-on-metal contact between the camshaft lobe and the pump. In severe cases, metal debris can contaminate the fuel system and damage the camshaft. VW issued a technical service bulletin and extended warranty coverage on some models up to 120,000 miles. The cam follower itself costs around 15-25 euros and can be inspected without major disassembly. Recommended inspection interval is every 30,000 km. If caught early, replacing just the follower costs 150-300 euros. If the camshaft lobe is damaged, the repair escalates to 1,500-2,500 euros including camshaft, HPFP, and follower replacement. Many high-mileage FSI owners check this proactively as part of routine maintenance.

The electric parking brake motors integrated into the rear brake calipers are the most commonly reported fault on the B6 platform regardless of engine choice. Water enters through cracked plastic housings and corrodes the internal motor, causing the parking brake to fail to engage or release. VW does not sell the motor separately from the caliper assembly. An aftermarket caliper with motor costs approximately 200-350 euros per side, while VW dealer calipers run 400-500 euros each plus labor. The EPB switch on the dashboard also fails frequently (30-50 euros). Most failures occur between 80,000 and 150,000 km. If both rear calipers need replacing simultaneously, the bill can reach 800-900 euros. Inspect the connector pins on the rear calipers for green corrosion before purchase.

The EA113 2.0 FSI engine can develop significant oil consumption as it ages, particularly after 100,000 km. Consumption rates vary widely: some engines use 0.5 litres per 5,000 km (acceptable), while others can consume 1 litre per 1,000-2,000 km. The primary cause is piston ring wear, sometimes accelerated by carbon deposits affecting ring seating. Mild consumption (up to 1 litre per 5,000 km) can be managed by monitoring and topping up, which costs around 200 euros per year in oil. Severe consumption requires piston and ring replacement at approximately 2,500-3,500 euros due to engine-out labor. Switching to a higher-viscosity oil (e.g. 5W-40 instead of 5W-30) can sometimes reduce consumption moderately. Check the oil level at every fuel stop on a test drive; a significant drop indicates ring wear.

Ignition coil failure is common on the 2.0 FSI, with symptoms including engine misfires, rough running, and check engine light (P0301-P0304 codes). VW issued a recall on some early models for faulty coils. Individual coil replacement costs around 30-50 euros per coil for aftermarket parts, or 60-80 euros for OEM. Labor is minimal as the coils are accessible on top of the engine. Many owners replace all four coils preventively when one fails, bringing total cost to 150-300 euros at an independent shop or up to 400 euros at a dealer. Coils typically fail between 60,000 and 120,000 km. Replacing spark plugs at the same time (every 40,000-60,000 km) is recommended.

The thermostat on the 2.0 FSI is known to fail, typically sticking in the open position. Symptoms include slow engine warm-up, temperature gauge not reaching normal levels, and poor cabin heating in winter. The water pump uses a plastic impeller that can crack or slip on its shaft after 70,000-100,000 km, causing inadequate coolant circulation and potential overheating. Both components are commonly replaced together during timing belt service. Thermostat replacement alone costs approximately 150-250 euros. Water pump replacement adds 200-400 euros. If done during the timing belt change, combined labor savings make this more economical. A car that takes unusually long to warm up on a test drive likely needs a thermostat.

The intake camshaft adjuster (cam phaser) on the BVY engine can develop problems due to worn internal seals, oil sludge, or a clogged timing chain strainer. The P000A fault code (camshaft position slow response) is one of the most frequently reported engine codes on this engine. In many cases, replacing the variator washer, cleaning the chain strainer, and renewing the O-rings resolves the issue for 400-600 euros. If the phaser itself is damaged, replacement including the solenoid valve costs 800-1,200 euros. Regular oil changes with quality synthetic oil help prevent sludge-related phaser problems. This issue is more common on cars with extended oil change intervals or where lower-quality oil was used.
