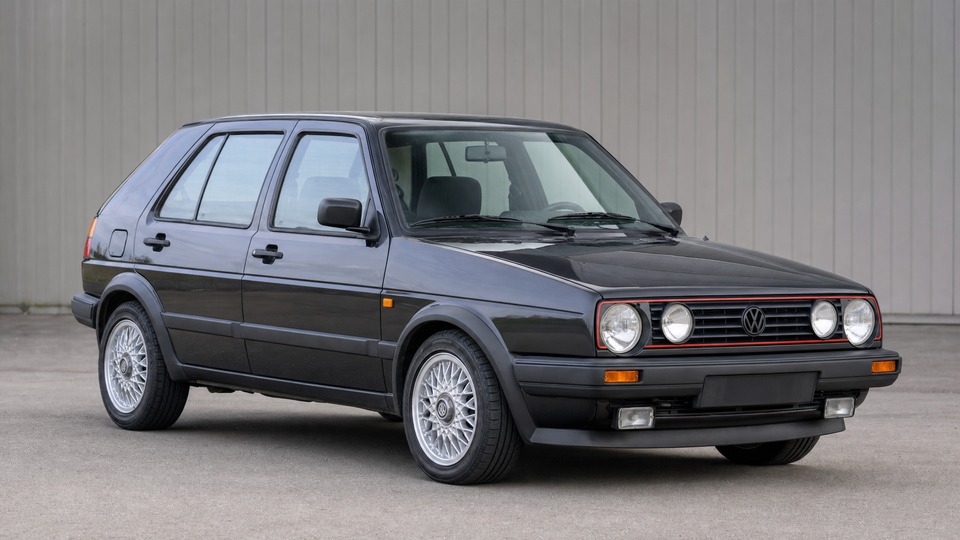

Volkswagen Golf 1.6 Mk2

The Mk2 received significantly better anti-corrosion treatment than the Mk1, including galvanized panels on later production cars. Nevertheless, at 33-43 years old, structural rust remains the primary survival threat. Critical areas include the sills and sill closing panels (hidden behind plastic trim, especially on post-1990 models), jacking points (damaged by trolley jacks and exposed to weather), floor pans where they meet the sill seam, and chassis legs entering the bulkhead. Rear axle mounting points are structurally critical and expensive to repair; the car must be immobilized during the work. Repair panels are available from Heritage Parts Centre and similar specialists. A localized sill repair on one side typically costs €800-1,500 at a bodyshop, while extensive work involving both sills, floor sections, and jacking points can reach €3,000-5,000. Most surviving Mk2s have already had at least one round of welding. The question when buying is not whether it has rust, but how much and where.

Rust congregates along the entire A-pillar from the bonnet hinges through to the wing bolt holes at the bottom. Stuck-on plastic arch trims on many Mk2 variants hide corrosion underneath. The lower 20-30 cm of the inner rear wheel arches (just above the rear axle mount) accumulates road grime between inner and outer panels, and picking out this compacted dirt usually reveals corroded metal. The rear panel below the taillights and the seam between quarter panels are common problem areas. The tailgate develops rust bubbles around the rear screen seal, behind the plastic handle housing, and around wiring grommets at the top. Repair panels are widely available, but inner arch work typically requires custom fabrication. Per-arch repair costs range from €300 to €800 depending on severity. Full rear panel repairs add €500-1,200. The fuel filler neck area between the neck and inner wheel arch is another classic rust trap where the support bracket corrodes; an outer repair panel costs €30-60, but inner sections need custom metalwork.

The Pierburg 2E2 carburetor fitted to 1.6 carbureted Mk2 models is more complex than it appears. The three-point unit (managing cold start enrichment) should extend to approximately 14.5 mm when the engine is off and retract to about 8.5 mm after starting. The inlet manifold coolant channel O-ring degrades over time and can block the coolant passage, disrupting autochoke operation. Two temperature senders at the front of the engine block (grey for autochoke, red for inlet manifold preheater) must function correctly in both cold and warm states. Vacuum hoses harden and crack with age, producing air leaks that cause erratic idle. A specialist carburetor rebuild typically costs €200-400 for parts and labor. Full replacement with a reconditioned unit costs €400-800. Some owners convert to a Weber downdraft carburetor (€200-350 for the kit) to eliminate the 2E2 complexity entirely. Note that the PN-code engine (1991-1992) uses single-point injection and does not have this issue.

The 020 five-speed manual gearbox used in the Mk2 is known for second gear synchromesh wear. The typical symptom is grinding when shifting from first to second at higher engine speeds; downshifting into second is usually less affected. Contributing factors include the pinion shaft design (factory-fitted without circlips, a known weakness in all 020 units), deteriorated gear oil (many have never had the oil changed), and age-related wear to shift fork plates that can loosen over time. A synchromesh repair at a specialist gearbox shop typically costs €600-1,200 including parts and labor. Full replacement with a used gearbox runs €400-800 for the unit plus €300-600 for fitting. Quality gear oil (75W-90 GL-4) changed every 60,000 km helps extend synchromesh life. Installing circlips during any gearbox rebuild permanently addresses the original design weakness.

After three or more decades, wiring insulation on any car deteriorates. The Mk2 has two wiring configurations: CE1 (pre-1989) and CE2 (post-1989), identifiable by hazard switch position. Common failure points include the ignition switch (causing intermittent starting problems or stalling when braking), fuel pump relay (a frequent no-start cause), door wiring (flexed thousands of times), and the central locking vacuum pump on GL and GTI models. The heater blower resistor frequently fails, leaving only the highest speed operational. Fan bearings also wear, producing squealing. Ground connections on the intake manifold corrode, causing running problems on fuel-injected variants. Targeted wire repairs cost €100-300 per fault. A complete engine bay wiring loom replacement (when needed) costs €500-1,000. Locating intermittent faults on ageing wiring can be time-consuming, though the overall system is far simpler than any modern car.

The heater matrix is a known weak point on the Mk2 Golf. When it leaks, coolant drips into the passenger footwell, and a sweet smell from the ventilation is the typical early warning. Many Mk2s have had the heater matrix bypassed rather than replaced, which eliminates the leak but also eliminates cabin heating. Volkswagen issued a service recommendation regarding heater matrix inspection on mid-production cars. Replacement requires significant dashboard disassembly, making it labor-intensive. The matrix itself costs €40-80, but labor runs 4-6 hours at a workshop. Total repair cost is typically €300-700. If buying a Mk2, check whether the heater blows hot air during a test drive. A cold cabin in winter strongly suggests a bypassed or failed matrix.

The headliner is described by specialists as one of the Golf Mk2's biggest flaws. The adhesive bonding the fabric to the backing board dries out with age, heat, and humidity, causing the material to sag. This affects the vast majority of Mk2s with original headliners. Sagging typically starts around the rear window and dome light area, eventually hanging down onto rear-seat passengers. Professional re-trimming costs €150-300. DIY repair using high-temperature spray adhesive is possible for €20-30 in materials, though getting a wrinkle-free result requires removing the headliner board from the car. Door cards with water stains from degraded door membrane seals are also common.

The 1.6 engine (EZ, RF, PN) is fundamentally robust and widely reported to exceed 200,000 km with proper maintenance. After extended service, valve stem seals harden with age and valve guides wear, allowing oil into the combustion chambers. The classic symptom is a puff of blue smoke on cold startup that clears within 30 seconds, with gradually increasing oil consumption. This typically appears after 150,000+ km or on cars that have sat unused for extended periods. Replacing valve stem seals with the head in place costs approximately €200-400. A full cylinder head rebuild including new guides, seals, and valve lapping costs €400-1,200. The bottom end (crankshaft, bearings, block) is rarely a concern on these engines.
