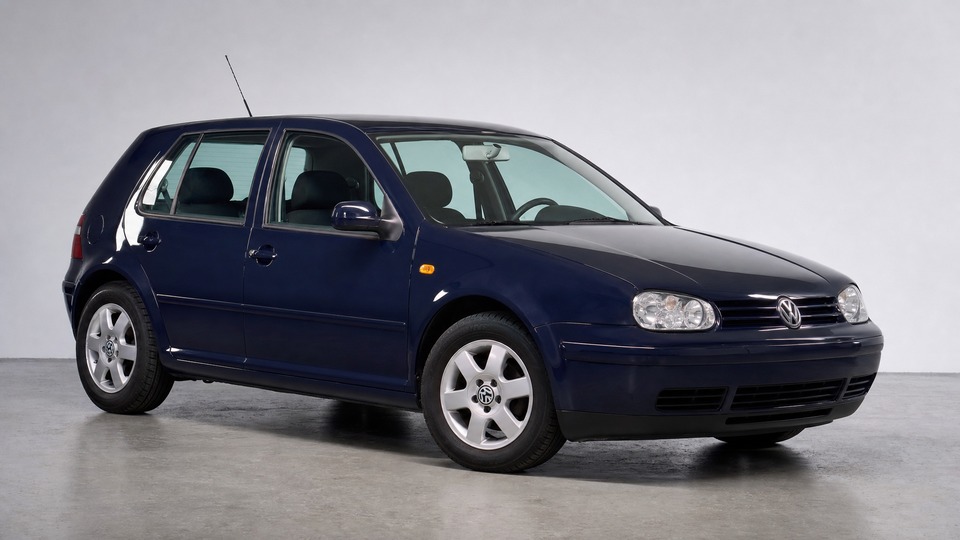

Volkswagen Golf 1.4 Mk4

The 1.4 16V uses an aluminium cylinder block which wears much faster than a cast-iron block when driven hard from cold or with low oil level. Oil starvation causes cam seizure in the head and can break the timing belt. The earlier AHW/AKQ/APE engines (1997-2001) are more susceptible than the later BCA (2001-2004). Piston rings cannot be replaced on the aluminium block — once worn, the entire block must be replaced. Symptoms include excessive oil consumption (more than 1 litre per 1,000 km), blue smoke on startup, and tapping from the top end. Regular oil level checks and frequent oil changes (every 10,000 km maximum) are essential prevention. If caught early, valve stem seal replacement may suffice (around €800-1,200), but if bore wear has progressed, engine replacement is more economical than repair.

At 20+ years old, rust is the biggest threat to any Mk4 Golf. The front wheel arches rust from the inside out due to foam padding behind the arch liner that traps moisture. Sills corrode from trapped water in drainage channels. Door bottoms and the area above the front wing mirrors are also common spots. Many surviving cars have already had arch repairs — check for filler and poor previous repairs. Professional wheel arch repair costs approximately €300-600 per arch. Sill repair or replacement runs €500-1,500 depending on severity. Prevention: remove arch liners annually, clean thoroughly, and apply wax oil protection.

The Mk4 ABS module has a known weakness: cold solder joints on the internal PCB deteriorate over time, causing the ABS and ESP warning lights to illuminate permanently. When this happens, ABS braking assistance is lost. VW no longer supplies new modules for the Mk4. Options include specialist ECU repair firms that resolder the PCB (approximately €200-350), sourcing a used module from a breaker (€100-200 plus coding), or aftermarket remanufactured units (€400-600). The repair route is most cost-effective and widely available across Europe.

Ignition coil pack failure is one of the most common Mk4 faults. The coil deteriorates internally over time, with one winding eventually failing open-circuit. Symptoms include engine misfires, rough idle, and check engine light with misfire codes. VW issued a customer satisfaction campaign for 2001-2002 models. A single coil pack costs €15-50, and all four should ideally be replaced together (€60-200 for parts). Important: driving with a failed coil risks unburnt fuel damaging the catalytic converter, which is a much more expensive repair (€400-800). Replace promptly when symptoms appear.

The plastic clips holding the window glass to the regulator frame are notoriously weak on the Mk4 platform. When they break, the window drops inside the door and cannot be raised. This affects front doors most commonly. Upgraded metal clip repair kits are available (€20-40) which are significantly stronger than the original plastic clips. Full regulator replacement costs €80-150 per door including labour at an independent garage. Most Mk4 owners will experience at least one window regulator failure during ownership.

The original black-top coolant temperature sensor is a known failure point on all Mk4 engines. Symptoms range from inaccurate temperature gauge readings to rough running, difficult starting, or check engine light. VW revised the part to a green-top sensor which is more reliable. The sensor itself costs €10-20 and is straightforward to replace. However, if the fault is not recognised quickly, it can cause poor fuel mixture leading to catalytic converter damage. Always replace with the updated green sensor.

Some Mk4 Golfs were fitted with oil-filled rear axle bushings that crack and leak over time. Symptoms include clunking noises over bumps, vague rear-end handling, and uneven rear tyre wear. Replacement options include new OEM bushings pressed into the existing axle (€200-400 at a specialist), aftermarket polyurethane upgrades (€150-250), or a complete refurbished rear axle assembly (€300-600). The work typically requires removal of the rear axle beam, so labour is significant at approximately 3-4 hours.
