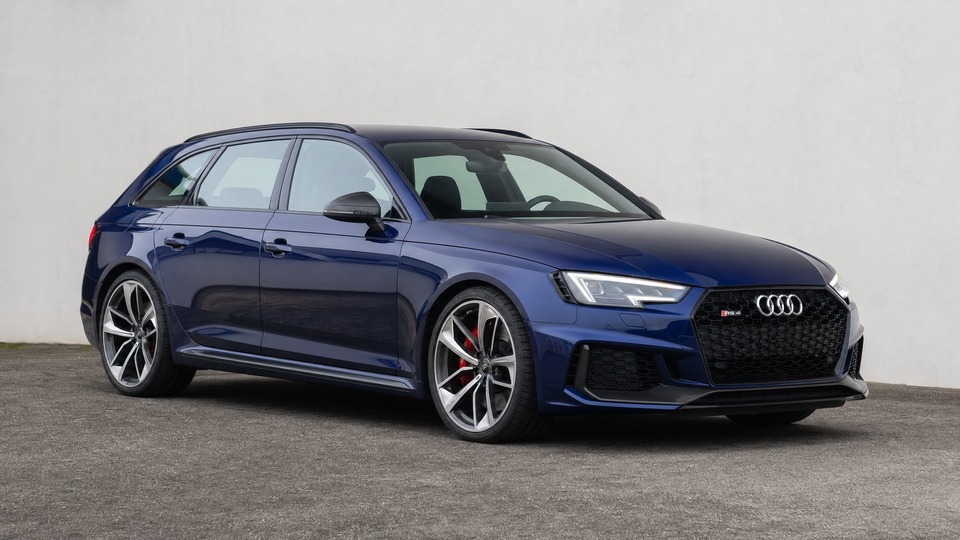

Audi RS4 Avant B9

The EA839 water pump uses vacuum actuation to control a slide valve inside the pump. When the internal seal fails, coolant is drawn into the engine's vacuum system and can migrate to areas where it causes damage, including the turbo wastegate actuators and brake booster vacuum lines. Audi issued TSB 2070349 acknowledging this defect. The failure is widely considered a matter of when, not if, on cars with the original 4-bolt pulley pump. Specialist repair shops report seeing this regularly on cars between 60,000 and 100,000 km. If caught early (coolant loss with no visible external leak, P0299 underboost code), replacing just the pump costs around €1,500-2,000. If the vacuum system is contaminated, the repair escalates to €3,000-5,000 as solenoid valves, vacuum reservoir, and lines all need replacement. The revised replacement pump uses a 6-bolt pulley, making it easy to visually verify whether an RS4 has had the update. Always check the water pump pulley bolt count on any prospective purchase.

Early EA839 engines used rocker arms with needle roller bearings that were too small for the loads involved. Under high temperatures and sustained high RPM use, the needle bearings can collapse, locking the outer roller race and scoring the camshaft lobes. If caught early, replacing all rocker arms and the affected camshaft costs approximately €3,500-4,000 at a specialist. If metal debris spreads through the oiling system and scores main bearing journals, the repair can reach €6,000-8,000, and in worst cases Audi has quoted €18,000+ for complete engine replacement. Audi revised the rocker arm design with significantly larger bearings for cars produced after approximately June 2018. Most B9.5 facelift cars (late 2019 onwards) are not affected. On pre-facelift cars, check whether the updated rocker arms have been fitted. Some owners proactively upgrade during other engine work.

The RS4's optional Dynamic Ride Control system connects diagonally opposed dampers through a central hydraulic valve, providing body control without anti-roll bars. The system operates under high pressure with a small fluid volume, making it sensitive to even minor seal degradation. Symptoms include knocking noises over rough surfaces at low speed, uneven ride height, and reduced body control. Individual damper replacement costs approximately €735-805 per corner from Audi, plus labor. A full system service (evacuate, renew fluid, repressurize) is recommended every 6 years and costs around €800-1,200. Complete system replacement including all four dampers and lines runs €5,000-5,500 at a dealer. Many owners eventually convert to conventional coilover suspension (€1,900-4,000 installed), which eliminates the complexity entirely. Cars without the DRC option use conventional adaptive dampers and are unaffected.

The 2.9 TFSI uses direct injection only, which means no fuel washes over the intake valves during normal operation. Crankcase vapors and oil mist gradually deposit carbon on the valve surfaces, restricting airflow and causing rough idle, misfires, and reduced power. The RS4's hot-V layout (turbos mounted between the cylinder banks) makes the walnut blasting procedure more complex and time-consuming than on conventional engine layouts, which increases the cost. Specialist shops charge €900-1,200 while Audi dealers quote €1,500-1,800. Expect to need this service every 60,000-80,000 km depending on driving style. Regular spirited driving at higher RPM and using quality synthetic oil helps slow the buildup but cannot prevent it. Unlike some competitors (the Giulia QV added port injection from mid-2018), the RS4 never received dual injection.

The crankshaft rear main seal on the EA839 engine is a known weak point, with multiple S4/RS4/RS5 owners reporting oil seepage at the engine-to-transmission junction. The seal itself is inexpensive, but the repair requires removing the ZF 8HP transmission to access it, which involves significant labor. At an independent specialist, expect €800-1,200 including parts and labor. Audi dealers typically quote €1,200-1,500. Many owners report this developing between 60,000-100,000 km. Minor seepage can be monitored without immediate action, but progressive leaking will eventually contaminate the clutch pack or torque converter and should be addressed promptly.

The twin-turbo system uses electronic wastegate actuators that can develop wear in the actuator arm ends over time. Symptoms include inconsistent boost delivery, underboost or overboost fault codes, and the car entering limp mode under full throttle. This typically manifests above 100,000 km, particularly on cars that have been driven hard or tuned. If only the actuator or solenoid needs replacement, the repair costs approximately €1,500-2,000. If the turbocharger internals are damaged from prolonged overboost conditions, turbo replacement runs €2,000-2,500 per side. Complete twin-turbo replacement with labor can reach €5,000. Regular oil changes with quality 0W-40 synthetic and allowing the engine to idle briefly before shutdown after spirited driving help preserve turbo life.

Several B9 RS4 owners report thermostats sticking in the open position, which prevents the engine from reaching optimal operating temperature. The engine management system compensates by running rich, increasing fuel consumption. Symptoms include the temperature gauge not reaching normal operating range, poor cabin heating in winter, and increased fuel consumption. The thermostat assembly is integrated with the cooling system housing, making it a moderately involved repair. Independent shops charge €800-1,000 while Audi dealers quote €1,200-1,500. Some owners have also reported the thermostat sensor giving false overheating readings, triggering the cooling fans at full speed unnecessarily. A diagnostic check can distinguish between a genuine thermostat failure and a faulty sensor.
