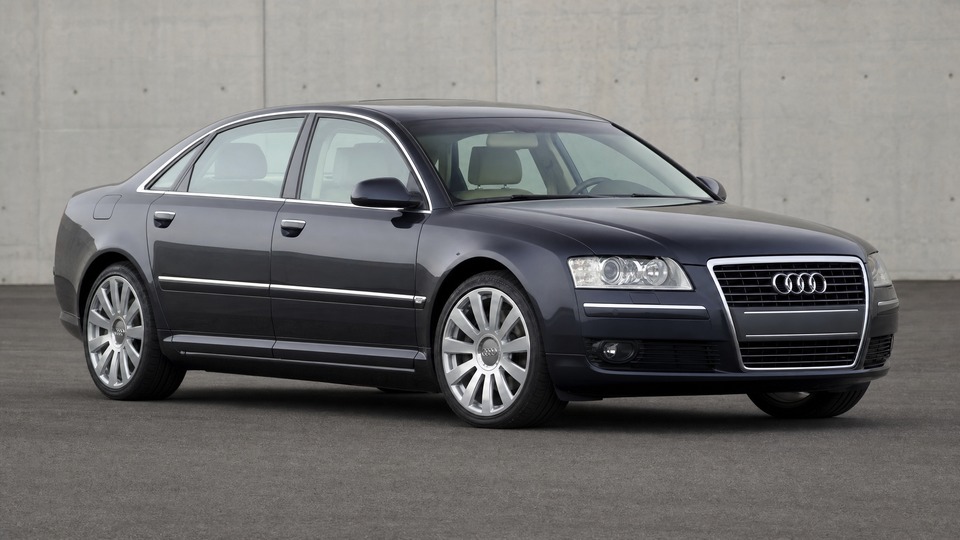

The D3 A8 was Audi's aluminium-bodied luxury flagship, competing directly with the BMW 7 Series and Mercedes S-Class. The 3.0 V6 TDI (ASB engine code, 233 PS, 450 Nm) offered strong motorway performance with reasonable fuel economy for a car of this size. Quattro AWD and air suspension were standard, delivering excellent comfort and all-weather capability.· more· less
Aluminium body resists corrosionPowerful and torquey V6 diesel
Air suspension repairs are costlyFirst-gen 3.0 TDI has known issues
Buy if: You want an affordable luxury cruiser and can find a facelift model (2007+) with documented maintenance history and healthy air suspension.
Avoid if: You need predictable running costs or the car shows any sign of timing chain rattle, air suspension sag, or unknown service history.
Hydraulic tensioner loses pressure overnight, causing chain rattle on cold start and potential engine damage · more· less
The first-generation 3.0 TDI (ASB engine) has a known weakness in the hydraulic timing chain tensioners. The tensioner bleeds off oil pressure overnight, allowing the chain to slap on cold starts. This is especially common on pre-2007 cars, as Audi improved the tensioner design in later production. The rattle may only last 1-2 seconds initially, but worsens over time. If the chain skips teeth, it causes catastrophic valve-piston contact. Repair requires partial engine disassembly: the right-side tensioner can be replaced without engine removal (around €2,000), but the left-side tensioner requires turbo removal, pushing costs to €3,000-5,000. Both tensioners should be replaced at the same time. On a car worth €5,000-8,000, this repair can total the car economically.
Air suspension strut leaks and compressor failure
up to €3,5002 of 9
Air springs develop leaks with age, eventually overworking and killing the compressor · more· less
The D3 A8 has full air suspension on all four corners, and after 15+ years, the rubber air bladders inevitably develop leaks. A leaking strut causes the car to sag on one corner after being parked overnight. The compressor then overworks to compensate, shortening its own life. OEM air struts cost around €700-1,000 each; aftermarket alternatives from Arnott or Bilstein run €400-600 per strut. The compressor itself costs €400-700 to replace. A full suspension refresh (four struts plus compressor) can reach €3,000-3,500 at an independent shop. Coil spring conversion kits are available for around €800-1,200, eliminating the air system entirely but changing the car's character.
Piezo injector failure (pre-2007 engines)
up to €3,5003 of 9
Early piezoelectric injectors fail prematurely, causing misfires, smoke, and potential piston damage · more· less
The first-generation 3.0 TDI used piezoelectric injectors that are prone to premature failure. When an injector fails, it delivers insufficient or excessive fuel to the cylinder, leading to rough running, smoke, power loss, and in severe cases piston overheating and burnout. A single injector costs €300-500, and all six should ideally be replaced together (€1,800-3,000 parts only). Post-2007 cars received improved injectors with significantly better reliability. Darkside Developments offers upgraded replacement injectors as an alternative. This issue primarily affects cars built before 2007.
Intake manifold swirl flap linkage failure
up to €1,5004 of 9
Ball joints on swirl flap linkage arms wear out, triggering engine warning light and reduced power · more· less
The 3.0 TDI has two intake manifolds (one per bank) with swirl flaps controlled by actuator arms. The ball joint linkages wear over time and eventually break, causing the engine management light to illuminate and a loss of low-end torque. The repair varies dramatically in cost depending on the approach: an Audi repair kit (part 059 198 212) costs around €10-15 per side plus modest labor, making it a €100-200 fix at an independent shop. However, some dealers quote full manifold replacement at €1,200-1,500 per side. This is one of the most commonly reported issues on the 3.0 TDI across all models (A6, A8, Q7).
DPF clogging from short-trip driving (DPF-equipped cars)
up to €1,8005 of 9
Where a particulate filter is fitted, it clogs when the car is used predominantly for short urban trips · more· less
The particulate filter was optional at launch, because Audi certified the 3.0 TDI to Euro 4 without one, so check whether the car in front of you actually has a filter. Where one is fitted, it relies on periodic regeneration at sustained motorway speeds. Short-trip driving prevents regeneration, leading to soot accumulation and eventually a blocked DPF. Symptoms include reduced power, increased fuel consumption, and DPF warning light. Professional cleaning costs €300-500, while a replacement DPF costs €1,000-1,800. Regular motorway driving (20+ minutes at sustained speed) prevents this issue. Cars used as motorway cruisers rarely develop DPF problems.
EGR valve carbon buildup
up to €1,0006 of 9
Exhaust gas recirculation valve clogs with carbon deposits, causing rough idle and power loss · more· less
Carbon deposits gradually accumulate inside the EGR valve, restricting exhaust gas flow and causing rough idle, hesitation, and reduced performance. The check engine light typically accompanies the fault. Cleaning the EGR valve is possible as a temporary fix (€100-200), but replacement is often needed. A new EGR valve costs €300-600 for parts, with €100-300 in labor. This is a wear item on all diesel engines but happens earlier on the 3.0 TDI due to the V6 layout and higher operating temperatures.
Tiptronic gearbox mechatronic/valve body wear
up to €4,0007 of 9
ZF 6-speed automatic develops rough shifts and hesitation from worn valve body seals and stale fluid · more· less
The six-speed Tiptronic is Audi's 09L, the ZF 6HP19A, and is generally reliable but suffers from Audi's claim that the gearbox fluid is sealed for life. ZF's own published guidance is an oil change after 150,000 km, with shorter intervals worth considering under heavy loads, high temperatures or an unknown history. Cars without documented gearbox fluid changes develop harsh shifting, delayed engagement, and eventually mechatronic unit failure. Valve body seal degradation causes internal pressure loss and erratic shift behavior. A gearbox oil and filter change costs €250-400 and is the single best preventive measure. Mechatronic unit replacement runs €1,500-2,500, and a full gearbox rebuild can reach €3,000-4,000. Cars with verified gearbox service history are far less likely to need major transmission work.
Water ingress from blocked scuttle drains
up to €2,0008 of 9
Blocked drain channels under the windscreen allow water into the cabin, damaging electronics and carpeting · more· less
The scuttle drains and sunroof drainage channels on the D3 A8 are notorious for clogging with leaves and debris. When blocked, water flows into the cabin footwells instead of draining away, soaking carpets and potentially damaging electronic modules under the seats and dashboard. If caught early, clearing the drains and drying the interior is straightforward (€200-300). However, prolonged water exposure can destroy control modules, requiring replacements costing €1,000-2,000 or more. Regular cleaning of the plenum area and drain channels is essential preventive maintenance.
Front suspension control arm bushing wear
up to €1,8009 of 9
Multi-link front suspension bushings deteriorate with age, causing clunks and imprecise steering · more· less
The D3 A8 uses a complex multi-link front suspension with numerous control arms and bushings. The rubber bushings deteriorate over time (more age-dependent than mileage-dependent), becoming brittle and cracked. Symptoms include clunking over bumps, vague steering feel, and uneven tire wear. Individual arms with bushings cost €50-100 each from quality aftermarket brands (Lemforder, Meyle), with a complete front suspension refresh kit running €400-600 in parts. Labor for a full front-end rebuild is 6-8 hours at €80-120/hour, bringing the total to €1,000-1,800 at an independent shop.
Complex luxury car requiring knowledgeable ownership
The A8 D3 3.0 TDI can be a rewarding ownership experience if maintained properly, with some examples reaching 200,000+ km without catastrophic failures. However, the combination of first-generation 3.0 TDI engine issues (timing chain tensioner, injectors), mandatory air suspension, and aging electronics means repair bills can escalate quickly. Post-2007 facelift cars with improved injectors and tensioners are notably more reliable. Budget generously for maintenance and seek out cars with complete service history including gearbox fluid changes.
Service history
Complete Audi dealer or specialist records essential. Verify oil changes at correct intervals and check for gearbox fluid changes.
Cold start test
Start the engine completely cold. Listen carefully during the first 30 seconds for any rattling or chain noise.
Test drive (minimum 30 minutes)
Include highway driving at sustained speeds. Check for smooth gear changes, steady idle, and no warning lights.
Diagnostic scan
Run a full diagnostic scan with VCDS or equivalent tool before purchase. Look for stored fault codes in all modules.
Specific for this vehicle
Listen for timing chain rattle on cold start
Start the engine completely cold and listen for metallic rattling in the first 5-30 seconds. Any rattle indicates tensioner wear. Walk away if the rattle persists beyond 5 seconds.
Check air suspension after overnight parking
Inspect the car after it has been parked overnight. All four corners should be at equal height. If one corner sits low, the air strut on that side is leaking.
Check for water in footwells and boot
Lift the carpet in all footwells and the boot. Feel for dampness. Check for musty smell. Water ingress from blocked drains causes expensive electrical damage.
+ 4 more checksShow less
Test all electronic systems thoroughly
Check MMI screen, climate control, heated seats, electric seat adjustment, parking sensors, headlight washers, and all window regulators. Electrical faults are common and cumulative.
Verify engine code and production date
Post-2007 ASB engines have improved injectors and tensioners. Check the build date sticker on the driver's door jamb. Later production is preferred.
Feel for suspension clunks over bumps
Drive over speed bumps and rough surfaces at low speed. Clunking or knocking indicates worn control arm bushings. Budget €1,000-1,800 for a front-end refresh if present.
Check exhaust for excessive smoke
After the engine is warm, apply firm throttle from standstill. Blue smoke indicates turbo seal issues; black smoke suggests injector problems or DPF issues.
Recalls and Technical Service Bulletins
Driver airbag may deploy incorrectly - UK recall R/2006/159 covers A8 production from December 2002 to May 2005, which reaches early 3.0 TDI cars; confirm with the VINCritical - verify completed
Sunroof glass bonding - European alert A12/0956/16 covers Type 4E vehicles built May 2007 to September 2008; the glass can detach from its frameCritical - verify completed
Takata airbag inflatorVerify applicability with the VIN
Contact an Audi dealer with the VIN. Audi's current European Takata guidance is country- and VIN-dependent rather than a fixed 2004-2006 build range, so treat that entry as a reason to check rather than a certainty. The fuel system integrity item often attached to this car does not belong here: the documented UK A8 fuel-leak actions cover later D4 production, so nothing identifiable applies to a D3 with the ASB engine.
Warranty Status
Factory warranty (2 years)Expired on all D3 A8 models
Rust perforation warranty (12 years)Expired — aluminium body resists rust well regardless
Extended warranty availabilityNot available for cars of this age from Audi
All D3 A8 models are well outside their original 2-year factory warranty. The aluminium body construction means rust is not a significant concern, unlike steel-bodied competitors. Third-party warranty providers may offer coverage, but exclusions for air suspension, electronics, and diesel systems are common.
