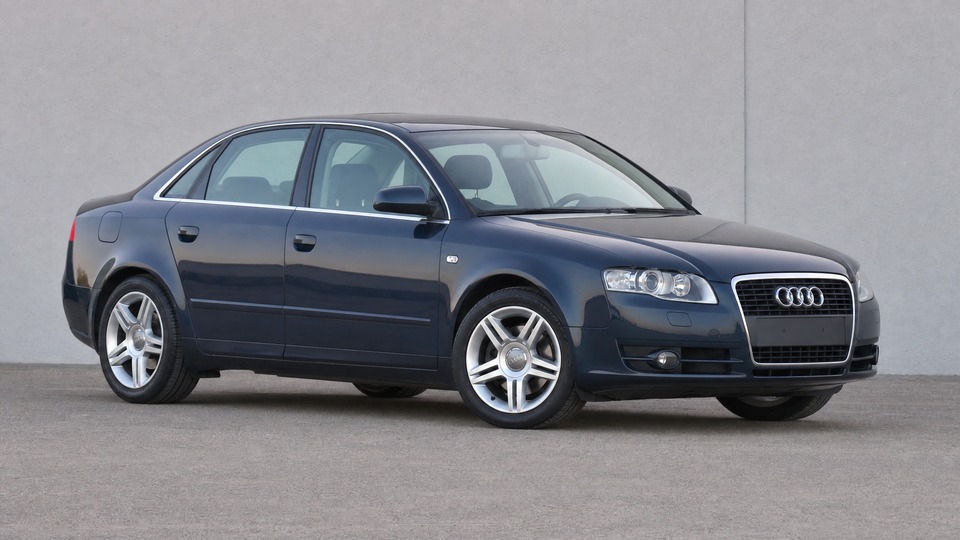

Audi A4 3.0 TDI B7

The 3.0 TDI V6 uses a complex timing chain system at the rear of the engine, with two chains and multiple tensioners. The upper chain tensioner is hydraulic and loses pressure over time, allowing the chain to slap on cold starts. Early BKN engines (2004-2006) are most susceptible. Symptoms begin with a brief rattle on startup that resolves within a few seconds as oil pressure builds. As the tensioner weakens further, the rattle lasts longer and the chain can eventually skip teeth, causing catastrophic valve-to-piston contact. Preventive replacement is recommended around 200,000-250,000 km. The job requires significant disassembly because the chains are at the back of the engine. Independent specialist quotes typically run €2,500-3,500 for both chains, tensioners, guides, gaskets, and labor (20-25 hours). Dealer pricing can reach €4,000-4,500. Regular oil changes every 10,000-15,000 km with quality 5W-30 oil help preserve tensioner life.

The first 3.0 TDI V6 was equipped with piezoelectric injectors that had a high failure rate. Insufficient fuel delivery from failing injectors leads to a lean mixture, increased combustion temperatures, and in severe cases, piston burnout. Audi issued a recall for B7 A4s built between 2006-2009 regarding diesel injectors. Symptoms include rough running, misfires, black smoke, and power loss. Injector replacement on the V6 is labor-intensive because of accessibility between the cylinder banks. A single injector costs €300-500, and replacing all six runs €1,500-3,000 for parts plus €500-800 labor. Uprated injector designs are available from specialists like Darkside Developments (approximately £1,850 for a full set). Later ASB engines received improved injector revisions. Injector seals (copper washers) can also leak independently, requiring periodic replacement at approximately €200-400.

The vulcanized rubber bonding on the crankshaft vibration damper separates over time, causing the outer ring to wobble. This creates a loud rattling noise and displaces the auxiliary drive belt, which can then fail. When the belt comes off, power steering, alternator, water pump, and air conditioning all stop working simultaneously. Audi issued a technical bulletin for early V6 TDI models, and the crankshaft pulley was updated to a revised design with an additional retaining washer. The problem is more prevalent in cars driven in regions with road salt. The part costs €100-200 for the updated pulley, plus €200-400 labor. Always replace the auxiliary belt at the same time. If not addressed promptly, the wobbling damper can also damage the front crankshaft seal, adding €200-400 to the repair.

The 3.0 TDI has variable intake manifolds with swirl flaps controlled by vacuum actuators and linkage rods. The linkage joints loosen over time, and the actuator motors can fail. When the system malfunctions, the engine management light illuminates and the car may enter limp mode. The problem is common on all 2.7/3.0 TDI engines. Audi dealer repair kits are available from as little as €8-15 per side for the linkage components, though complete manifold replacement at a dealer costs €400-800 per bank. Aftermarket repair kits from specialists cost €30-80 for both sides and can be fitted in 2-3 hours. Some owners opt to blank off or remove the swirl flaps entirely, which eliminates the problem permanently and has no meaningful impact on everyday performance.

The EGR system on the 3.0 TDI V6 is particularly troublesome because the cooler sits in the engine valley between the cylinder banks, making access extremely difficult. The EGR valve itself clogs with carbon deposits from short-trip driving, causing rough idle and power loss. More seriously, the o-rings between the EGR cooler and the cylinder heads can leak coolant. This coolant drains into the engine valley and is difficult to detect externally. Slow coolant loss without visible leaks is a telltale sign. If left unresolved, the coolant can contaminate the oil cooler seals and the EGR stepper motor electronics. Accessing the EGR requires removing virtually everything between the cylinder banks. EGR valve cleaning costs €150-300, but if the cooler o-rings need replacement, labor pushes the total to €600-1,200 due to the extensive disassembly required.

Identical to all B7 A4 models. The sophisticated multilink front suspension with eight control arms total develops worn bushings and ball joints over time, causing clunking over bumps, vague steering, and uneven tire wear. This is essentially inevitable on any B7 over 100,000 km, and the heavier V6 engine accelerates wear compared to 4-cylinder models. A complete front suspension kit (all arms with ball joints and bushings) costs €250-450 for quality aftermarket parts (Lemforder, Meyle HD) or €700-900 for OEM, plus 4-6 hours of labor. Alignment (€80-120) is required afterward. Most workshops recommend replacing the full set since one worn arm indicates others are close behind.

The 3.0 TDI V6 has multiple coolant system weak points that become problematic on 15+ year old cars. Plastic coolant pipes between the cylinder heads crack from heat cycling. Rear rubber hoses deteriorate and leak. The thermostat housing and water pump seals degrade. These are individually inexpensive parts (€20-80 each), but the V6 layout makes access difficult, pushing labor costs up. A comprehensive coolant system refresh (hoses, thermostat, water pump) at a specialist runs €400-800. Always check coolant level and condition during inspection. This engine does not tolerate air in the cooling system well, so proper bleeding is essential after any coolant work.

At 17-20+ years old, corrosion is a major concern on surviving B7 A4s. Rear wheel arches are the primary location, with paint bubbling caused by the felt liner rubbing the painted surface from inside. Front arches follow. Sills develop corrosion where stone-chip protection ends, and the area around rear license plate lights rusts due to water ingress. Audi issued a special instruction (5055 0002) for fender repair, and the 12-year rust perforation warranty covered repairs for many owners. Minor surface rust repair costs €200-400 per panel. Severe structural rust on sills can cost €800-1,500 and may make the car uneconomical to repair. Cars from Northern Europe and salt-road countries are most affected.
