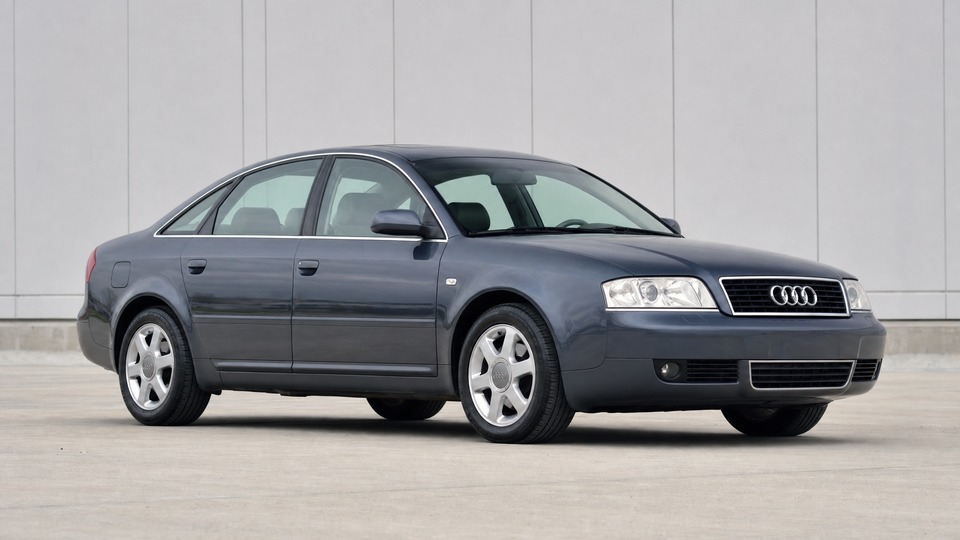

Audi A6 2.5 TDI C5

The early 2.5 TDI V6 engines (codes AFB and AKN, produced up to around 2001) used a cam-and-rocker design that is prone to accelerated wear if oil quality or change intervals are neglected. Symptoms include a tapping noise from the cylinder heads, poor starting, rough idle, and gradual power loss. Both banks typically need replacing simultaneously, as wear on one side usually means the other is close behind. A full camshaft kit (four camshafts, lifters, rockers) costs around €700-900 in parts, with labor of €800-1,900 depending on the shop. Generation B engines (AKE, BFC, from approximately 2001 onwards) use roller bearings instead of plain rocker arms and are significantly more durable, though not entirely immune at very high mileages above 250,000 km.

This is one of the most common and well-documented faults on all 2.5 TDI V6 engines. The EDC (Electronic Diesel Control) module mounted on top of the VP44 rotary injection pump develops internal electronic failures over time. Symptoms include difficult starting, sudden engine cut-out, erratic idle, and eventually a complete no-start condition. Audi does not sell the EDC unit separately from the complete pump assembly, which made dealer replacement extremely expensive (€2,500+). However, specialist companies now offer EDC repair/reconditioning for around €300-600, bringing the total repair cost including labor to approximately €800-1,200. Full pump replacement with a reconditioned unit runs €1,200-1,800. Using quality diesel fuel and keeping the fuel filter fresh helps extend pump life.

The variable geometry turbocharger uses movable vanes to control boost pressure. Over time, carbon deposits accumulate on these vanes, particularly in cars used predominantly for short trips or gentle motorway cruising at low RPM. Symptoms include loss of power, overboost situations triggering limp mode, or black smoke under acceleration. In many cases, the turbo can be removed and cleaned for around €400-600 including labor. If the vanes or actuator are damaged beyond cleaning, a reconditioned turbo unit costs €800-1,200 fitted, while a new genuine unit from Audi can exceed €1,500. Regular spirited driving and occasional Italian tune-ups help prevent buildup.

The Multitronic CVT automatic, available on front-wheel-drive C5 models, is widely regarded as the weak point of this car. The original 5-plate clutch pack was unable to cope with the 2.5 TDI's torque and wore prematurely, causing shuddering during acceleration. Audi later updated to a 7-plate clutch, but the gearbox remains unreliable. The TCU (Transmission Control Unit) can also fail, causing inability to select reverse or erratic shifting. A clutch replacement costs around €2,000-2,500 fitted, while a full gearbox rebuild or replacement runs €3,000-4,500. Gearbox oil changes every 60,000 km are essential but often neglected. Quattro models use the more robust Tiptronic (ZF 5HP19), which is significantly more reliable with a declared service life of 300,000 km when maintained. Always prefer Tiptronic or manual over Multitronic.

The Comfort Control Module (CCM) is located under the carpet in the front passenger footwell. When the plenum chamber drains under the battery tray or windscreen area become blocked with leaves and debris, rainwater backs up and floods into the cabin. The CCM corrodes internally, causing bizarre electrical symptoms: windows operating on their own, central locking malfunctions, interior lights staying on, and random alarm triggers. Prevention is straightforward (clean drains regularly), but once damaged, the CCM needs replacement. A used unit costs €100-200, but it must match the exact part number and be coded to the car using VCDS. Total repair including diagnosis and coding typically runs €300-800.

The C5 A6 uses a complex multi-link front suspension with aluminum components and alloy fasteners. These corrode over time, especially in northern European climates, making disassembly difficult and time-consuming. Worn bushings and ball joints cause clunking over bumps, vague steering, and uneven tire wear. A complete front suspension rebuild using quality aftermarket parts (Lemforder or Delphi) costs around €400-600 in parts. Labor is typically 4-6 hours due to seized bolts, bringing the total to €500-1,200 depending on how corroded the components are. This is a when-not-if repair on any C5 over 150,000 km.

Audi issued recalls for C5 A6 models equipped with halogen headlights (not xenon) due to a short-circuit risk in the headlight switch connector. Pins in the connector could touch, causing overheating that in severe cases led to dashboard fires. Xenon-equipped cars have a fuse in the circuit that prevents this. This was addressed via recall with a jumper wiring harness, but many cars may not have had the recall completed, particularly European-market examples. Verify with Audi using the VIN. If not done, the repair is straightforward and inexpensive at €100-300.

The central information display in the instrument cluster gradually loses pixels until it becomes completely unreadable. This affects nearly all C5 A6 models to some degree. The display shows trip computer information, warning messages, and radio/climate data. Specialist repair services replace the LCD ribbon for €100-200 including labor. DIY kits are available for around €30-50. While not a safety issue, an unreadable display means you could miss important warning messages.
