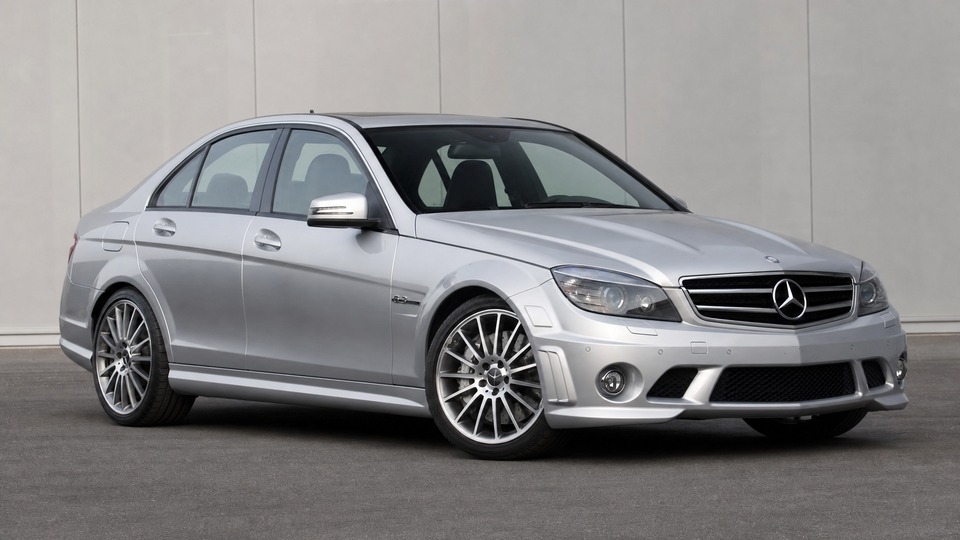

Mercedes-Benz C63 AMG W204

The most critical issue affecting early M156 engines. Head bolts installed before engine serial number 60658 (roughly up to mid-2011) are prone to corrosion at the exposed stretch zone. As bolts corrode and loosen, coolant enters the combustion chamber, causing misfires, coolant loss, and eventually catastrophic engine damage if ignored. Symptoms include unexplained coolant loss, misfires, and milky oil. Preventive replacement with updated bolts costs approximately 3,000-5,000 euros at a specialist, as both cylinder heads must be removed. If engine damage has already occurred, a rebuild can run 6,000-8,000 euros or more. Mercedes issued a TSB but no formal recall. Post-2011 cars received updated bolts from the factory and are not affected. When buying a pre-2011 car, always verify whether the head bolts have been replaced with the updated design.

The M156 is known for premature camshaft and hydraulic lifter wear, particularly on engines that were not serviced with frequent oil changes. The camshaft adjusters can also develop wear in the back plate that holds the locking pin. Symptoms start as a persistent ticking or rattling noise from the engine, especially on cold starts that does not subside after warming up. The issue was more common on early production engines (2007-2009) with softer camshaft materials. Updated lifters from INA have an improved hydraulic circuit and are less prone to bleed-down. A class action lawsuit was filed in 2011 over premature cam/lifter wear. Replacement of camshafts and lifters on one bank costs approximately 1,500-2,500 euros; both banks 2,500-5,000 euros depending on the extent of wear. Regular oil changes every 10,000 km with quality 0W-40 or 5W-40 oil significantly reduces the risk.

A widespread issue across the entire W204 platform, not specific to the C63. The rear subframe is only painted rather than galvanised, making it vulnerable to internal corrosion. The problem is dangerous because corrosion develops from the inside out, meaning the subframe can appear fine externally while being severely compromised internally. Approximately 300 documented cases of subframe collapse while driving have been reported across forums. Control arm brackets can crack or break off entirely. Mercedes has quietly replaced subframes free of charge in many cases after owners pursued the issue, but there is no official recall. The issue primarily affects cars driven in regions with road salt or coastal climates. A replacement subframe costs approximately 800-1,200 euros for the part, plus 1,000-2,000 euros in labour. Always have the rear subframe inspected from below during a pre-purchase inspection.

The 722.9 7G-tronic transmission used in pre-facelift C63s (2007-2011) can develop conductor plate (TCM) failures. The conductor plate contains speed sensors that degrade over time from heat and electrical stress. Symptoms include harsh or jerky gear changes, transmission holding gears too long, failure to select certain gears, and eventually limp mode. The issue typically appears between 80,000 and 150,000 km. A conductor plate repair or replacement at a specialist costs approximately 1,200-1,800 euros including fluid and filter change. Full valve body replacement at a dealer can reach 2,500-3,000 euros. The post-facelift MCT (multi-clutch transmission) used from 2012 onwards is a different unit and does not share this specific failure mode, though it requires its own specialist servicing.

All accessory drive pulleys on the M156 are plastic with pressed-on bearings. These are prone to seizure, particularly between 80,000 and 130,000 km. When a pulley seizes, it shreds the serpentine belt, which can damage the thermostat breather port and leave you stranded. The water pump pulley is also plastic and can fail similarly. Replacing all pulleys preventively with upgraded metal alternatives costs approximately 300-500 euros at an independent specialist. If a failed pulley has already damaged the belt, thermostat, and associated components, repair costs can reach 1,000-1,500 euros. Many experienced C63 owners recommend replacing all plastic pulleys with billet aluminium versions as a preventive measure during any major service.

The crankcase ventilation system on the M156 uses plastic hoses and a valve that become brittle over time from engine heat. When the PCV valve or hoses crack, unmetered air enters the intake causing lean running conditions, misfires, increased oil consumption, and smoke from the exhaust. The issue typically develops around 80,000-120,000 km. The PCV valve itself costs approximately 50-100 euros, but the associated hoses and labour bring the total to 300-500 euros at an independent specialist or 600-800 euros at a Mercedes dealer. The rear main seal can also be affected, producing a squealing noise at idle as air is forced past it.

The M156 has tumble flaps in both intake manifolds that help optimise airflow. Over time, carbon deposits build up on the flaps, increasing the mechanical stress on the plastic actuator arm until it breaks. Symptoms include reduced low-end performance, poor fuel economy, and a check engine light with swirl flap fault codes. The actuator repair itself can be done in under an hour, but the intake manifold must be removed for access. Total repair cost at a specialist runs 400-800 euros; at a dealer, 800-1,200 euros. While the manifold is off, cleaning the carbon deposits from the flaps is recommended to prevent recurrence.
